Map (Offline)

This page describes the offline Map component and how it can be set up and configured to create visually appealing, engaging, and performant geographic maps.

This component utilizes WebGL technologies, enabling Maps to render quickly and smoothly which is highly beneficial when working with large datasets. The benefit of using this Map component over the standard Map (External API) component is that you do not need to have external access to the internet or external APIs.

There is a wide range of customizations available for the Map including adjusting styles, colors, fonts, adding custom icons and interactive layers (including Points, Circles, Lines, Animated Points, Heatmaps, and customizable Layers).

Note

Two Map components

KX Dashboardsincludes two Map components, both displaying geographical data but used for different purposes. To use the Map (External API) component, you need a stable internet connection and access to external APIs. If you need to use maps offline, the Map component described on this page allows you to visualize geographical data without the need of an internet connection or access to external APIs. The properties you can set for the two maps are different so it's recommended you choose which component to use based on your needs.

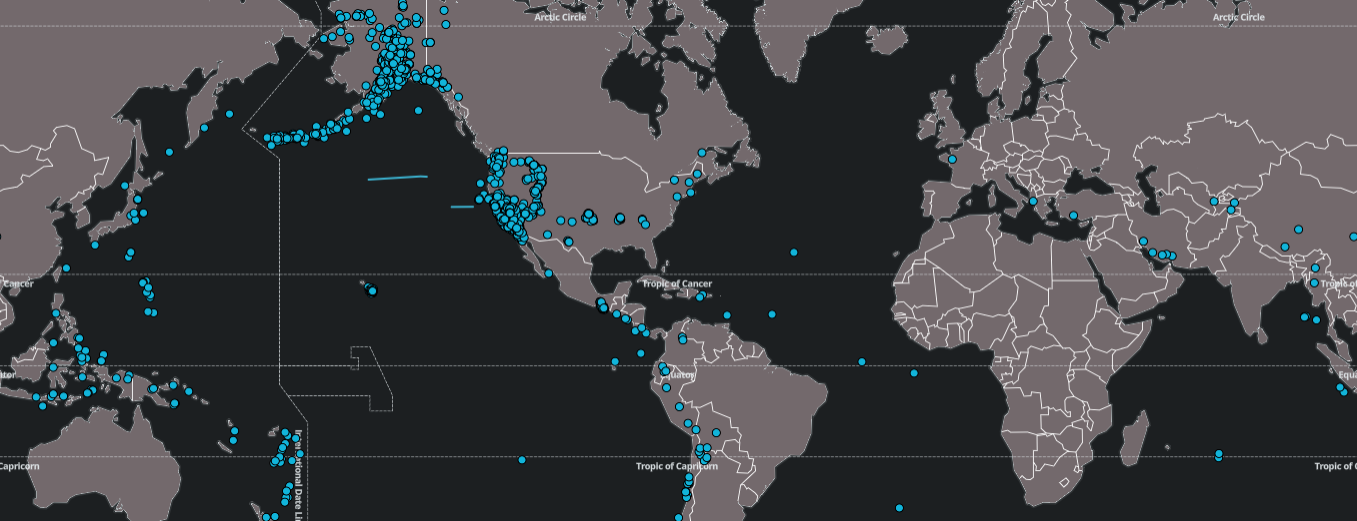

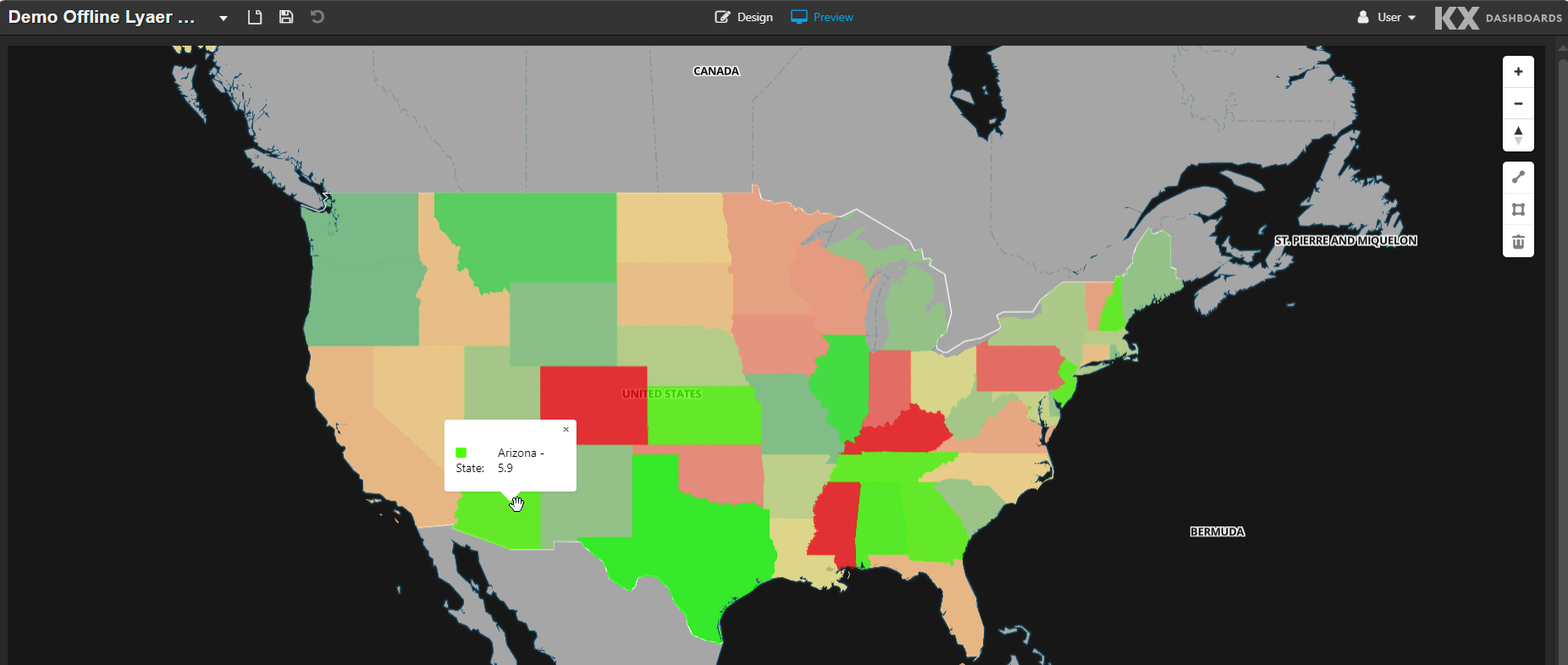

The following screenshot illustrates a sample Map with defined circles.

Sample Map

The Map has features that enable you to:

  • Visualize and animate geographic data

  • Visualize streaming and moving data geographically

  • Display and interact with large quantities of data on a map

  • Query and filter map features

  • Dynamically display and style custom client-side data on a map

  • Programmatically add points, circles, lines, and popups to maps

  • Annotate polygons and lines on geographic data and store annotated points in view states for use in other components

  • Overlay multiple layers of data on top of each other

Note

The Map component is built using the MapLibre libraries.

The following sections describe how to configure the properties of the Map component.

Set up an offline Map

To set up an offline Map component, click-and-drag the component into the workspace and configure the following:

Refer to Offline Map properties described in the next section for details on additional properties.

Offline Map properties

The following sections provides details on how to configure the properties of the Offline Map component.

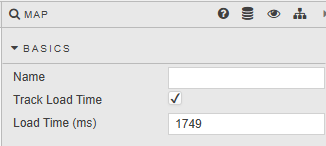

Basics

Open the Basics properties on the right and configure the properties described in the following table.

Basic properties

Property

Description

Name

Enter a name for the component.

Track Load Time

When this is checked, the time it takes to load the Map is tracked in the Load Time (ms) field below. This includes the time it takes to load all defined layers.

By monitoring your map’s load time, you gain precise performance metric that help you quickly identify issues.

Load Time (ms)

When Track Load Time is checked this field is updated with the loading time for the Map, in milliseconds.

Map

Configure the properties, described in the following table

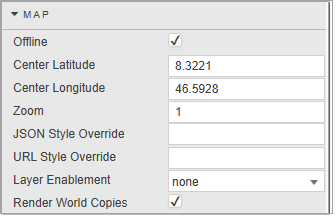

Map Properties

The Map properties allow you to configure the zoom setting for the map when it loads latitude and longitude coordinates and the style of the map.

Property

Description

Map Box Key

This key (access token) associates API requests with an external map account. This is required for online mode only.

Offline

Click to switch between offline mode and online mode. Offline mode requires no access to the internet. This must be unchecked to use the Map offline.

Center Latitude/Longitude

This sets the map center when the dashboard loads. This is defined in longitude and latitude values.

Zoom

This is the initial zoom level.

JSON Style Override/URL Style Override

When this is set, the default style is overridden with the JSON/GeoJSON (for Offline mode) or URL string (for Online mode) set in the style.

Offline Mode: The map component is set with a default map style. This style uses:

  • A baked in vector and a country tile server (.pbf file) for its source.

  • A baked in font for the glyphs

  • A set of countries defined with a color scheme for the layout.

These default style settings can be overridden by this property. The default properties are part of the component and no external API requests are needed.

Online Mode: For Online mode, we use the following default styles:

  • For the Dark Theme : "mapbox://styles/mapbox/dark-v11"

  • For the Light Theme : "mapbox://styles/mapbox/light-v11"

Layer Enablement

The options are:

  • None

  • Quick

  • All

Render World Copies

This checkbox lets you choose between rendering a single map instance that is constrained to your defined bounds and using minimal GPU/tile resources or duplicating the world horizontally to allow seamless wrap-around past the antimeridian, at the cost of extra tiles and memory.

  • When this is unchecked, a single view of the world map is shown. It is unchecked by default.

  • Check this to show copies of the world map.

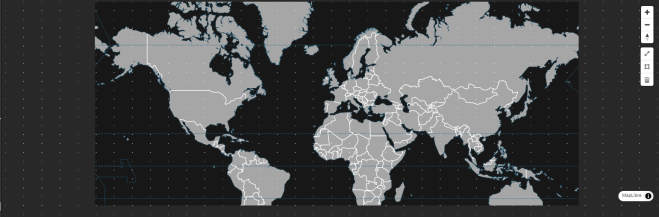

Single world view

Map with points using clustering

Copies of world view

Map with points using clustering

Points

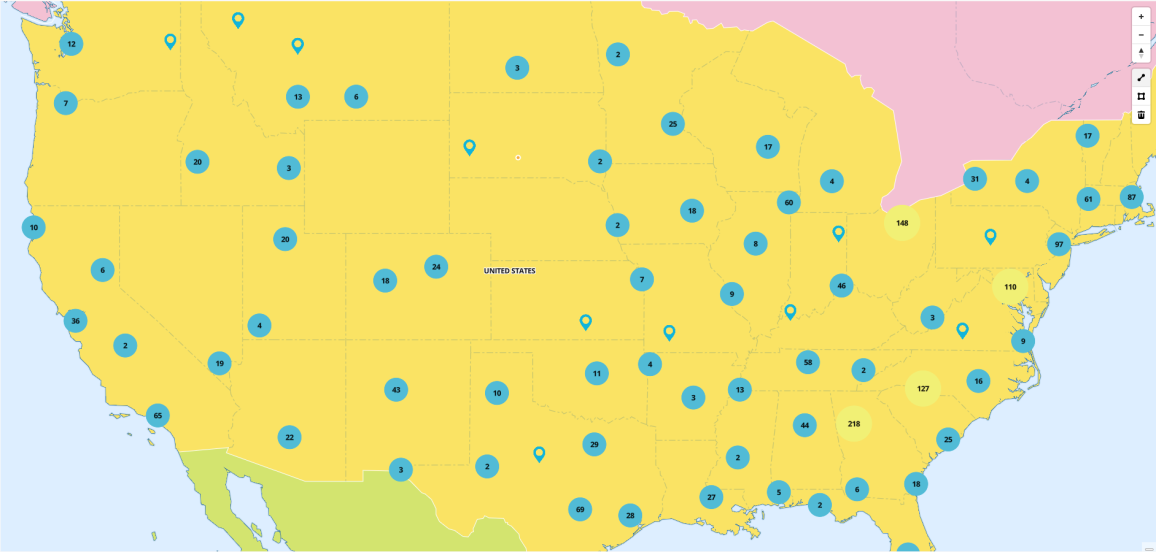

Use the Points properties to configure a custom point image at a specific geographic coordinate, with an option to add clustering. The following screenshot shows an Map with clustering.

Map with points using clustering

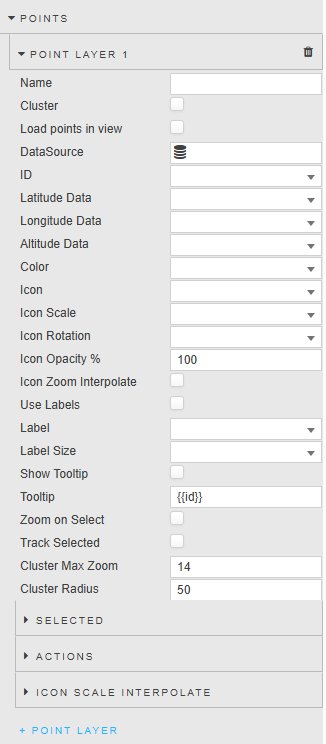

Configure the Points Layer properties, described in the following table.

Points properties

The Point properties illustrated in the screenshot are described in the table below.

Property

Description

Name

Define a name for the layer. If you leave this blank the default name layer definition (Layer Type Layer Index.) is used.

Cluster

When this is checked, grouped individual points are replaced with a numeric cluster icon. Circles outside the cluster remain displayed as individual points.

Load points in view

When this is checked, the map zooms and pans to the area of the map that contains points. When unchecked, the default zoom and center point is set.

ID

A distinct identifier for a point.

Latitude / Longitude Data

The data source columns to be used for latitude and longitude.

Altitude Data

This is the data source column to be used for altitude.

Color

The color of the map point graphic.

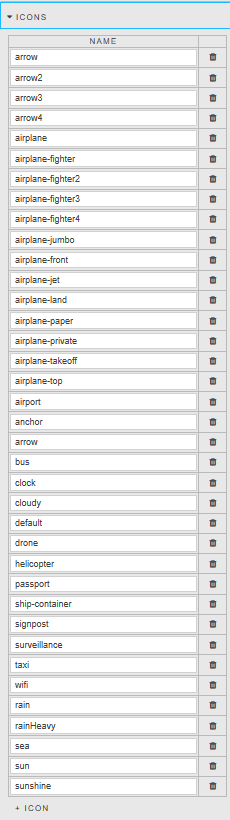

Icon

The shape of the map point graphic. A pointer is used by default.

Icon Scale

The proportional size of the shape. A value of 1 is used by default.

Icon Rotation

This sets the rotation angle of the icon from 0-360.

Icon Opacity %

The opacity of the shape.

Icon Zoom Interpolate



Use Labels

When this is checked, the Map displays a label for each of the points.

Label

The label displayed next to each point.

Label Size

The label font size.

Show Tooltip

When this is checked, it displays a tooltip on points mouse-over.

Tooltip

Set the value you want to see for tooltip at mouse-over.

Zoom on Select

When this is checked, the map is centered and zoomed in on this point for a selected point click event.

Track Selected

When this is checked, you can link/track a selected point on the map.

Cluster Max Zoom



Cluster Radius



Selected

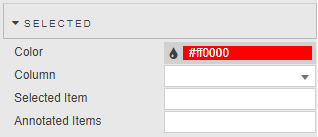

The Selected properties, relating to the Points you have configured, are shown in the screenshot and described below.

Selected Properties

Property

Description

Color

The color of the selected point.

Column

The data source column used in the selected row(s).

Selected Item

The current selected value.

Annotated Items

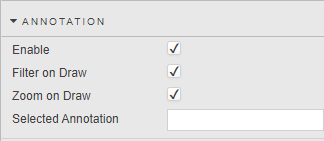

When annotations are enabled, as described here, you can draw a polygon around a set of circles or points. Once the polygon shape is drawn, the map component captures the corresponding coordinates and selects all point ids that exist within the coordinate range. These are then stored in this Annotated Items view state. You can then use these view state values in other components, for example in a data grid. If you then update the polygon, the values in the grid update.



A point is highlighted with the color specified if the Selected Item value equals the value for the specified Column.

Actions

Click here to read more about Actions.

Icon Scale Interpolate

Icon scale interpolation means that, instead of smoothly scaling or transitioning point styles (size, color, opacity) as you continuously zoom, the map holds each property constant until you hit the next defined zoom stop, then jumps to the new value.

The Icon Scale Interpolate properties, relating to the Points you have configured, are shown in the screenshot and described below.

A map with circles showing clustering

Property

Description

Zoom Stop 1

Here you can define the set of zoom stops.

Zoom Stop 2

Zoom Stop 1%



Exponential



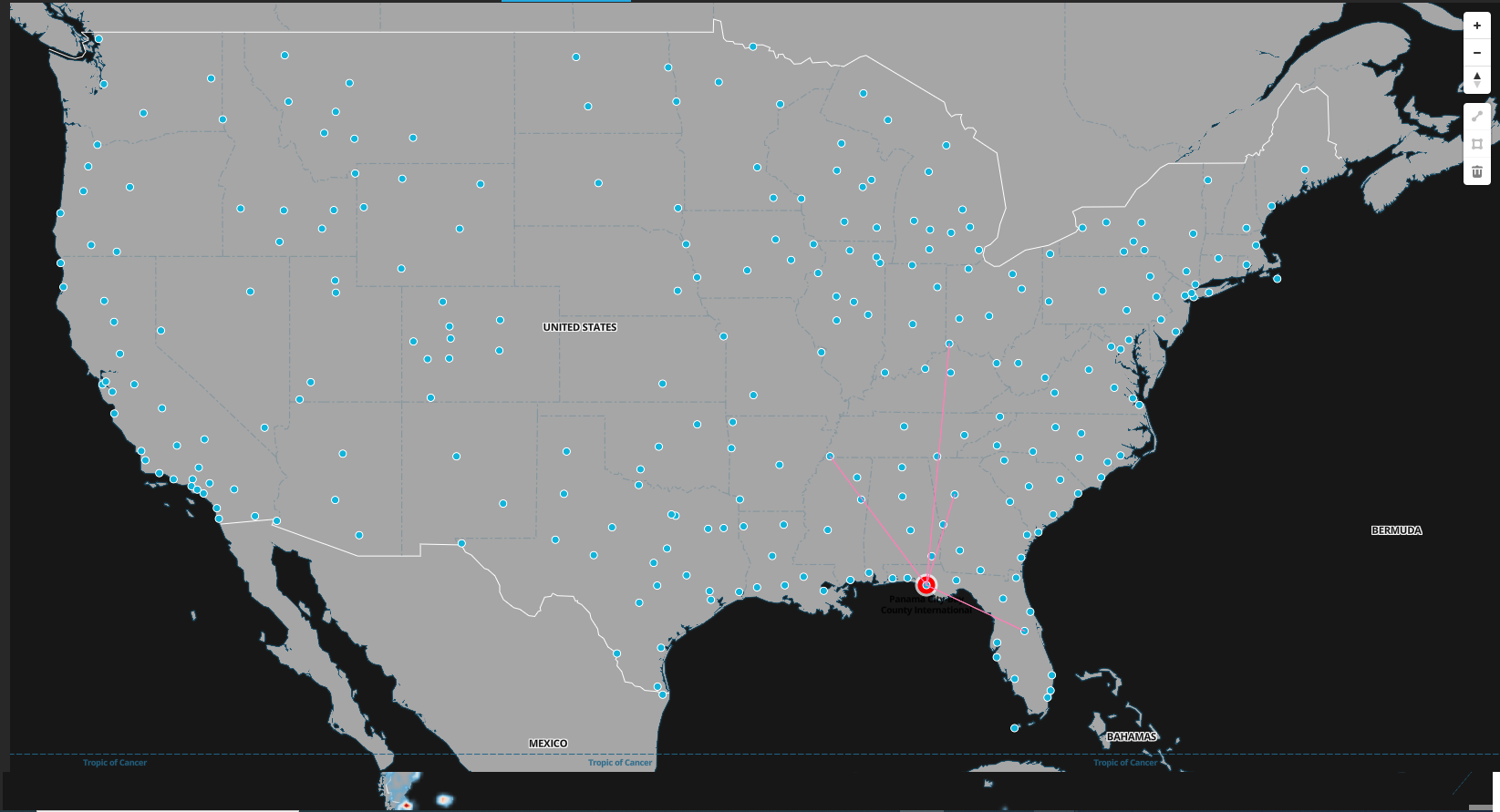

Circles

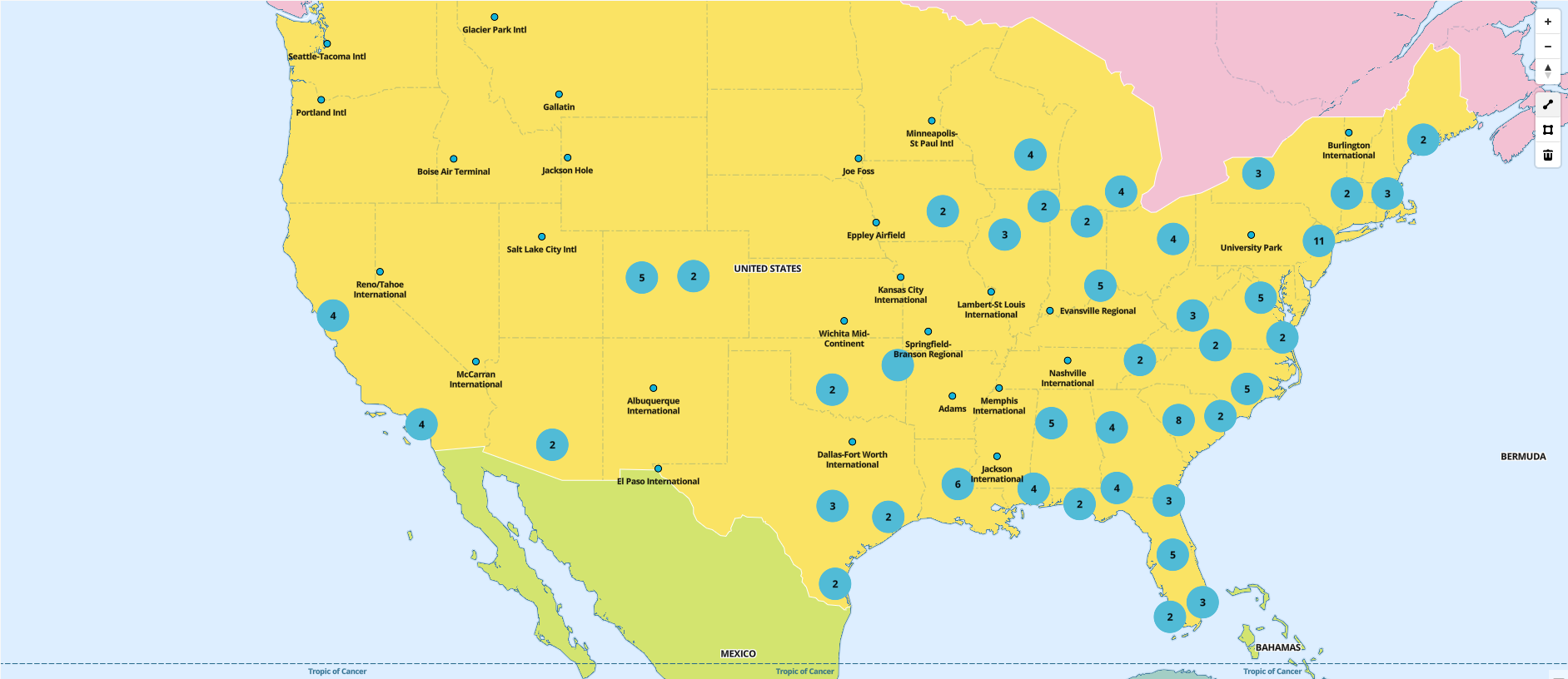

You can configure custom circles with clustering as illustrated in the following screenshot.

A map with circles showing clustering

Configure the properties, described in the following table.

Circle properties

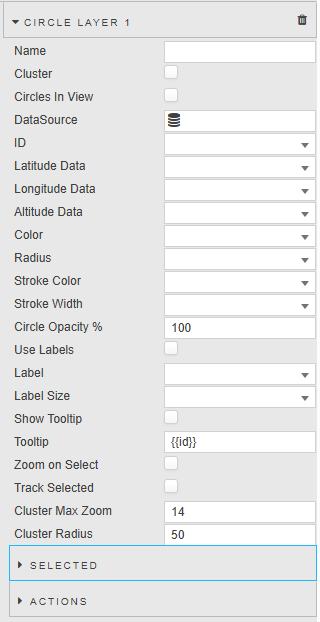

The Circle Layer properties shown in the screenshot are described below.

Property

Description

Name

Define a name for the layer. If you leave this blank the default name layer definition (Layer Type Layer Index.) is used.

Cluster

When this is checked, grouped individual Circles are replaced with a numeric cluster icon. Circles outside the cluster remain displayed as individual Circles.

Circles in View

When this is checked, all circles are zoomed in on and in view when the map is loaded.

Data Source

A data source that includes geographic coordinates.

ID

A distinct identifier for a circle.

Latitude / Longitude Data

The data source columns for latitude and longitude.

Altitude Data

The data source column for altitude.

Color

The color of the map circle graphic.

Radius

The radius of the map circle graphic.

Stroke Color

The border color of the map circle graphic.

Stroke Width

The border width of the map circle graphic.

Circle Opacity %



Use Labels

When this is checked, the circle display a label for each of the circles.

Label

The label displayed next to each circle.

Label Size

The label font size.

Show Tooltip

When this is checked, the circles display a tooltip when on mouseover.

Tooltip

Set the value you want to see for tooltip at mouse-over.

Zoom on Select

When this is checked, the map is centered and zoomed in on this circle for a selected circle click event.

Track Selected

When this is checked, you can link/track a selected circle on the map.

Cluster Max Zoom



Cluster Radius



Selected

The Selected properties, shown in the following screenshot, are described below.

Screenshot

Property

Description

Color

The color of the selected circle.

Column

The Data Source column used in the selected row(s).

Selected Item

The current selected value.



A circle is highlighted with the Color property specified if the Selected Item value equals the value for the specified Column.

Annotated Items

When annotations are enabled, as described here, you can draw a polygon around a set of Circles or Points. Once the polygon shape is drawn, the map component captures the corresponding coordinates and selects all circle ids that exist within the coordinate range. These coordinates are stored in this Annotated Items view state. You can use these view state values in other components, for example in a data grid. When you update the polygon on the map, the values in the grid update.

Actions

Refer to Actions for details.

Lines

The Lines properties enable you to configure lines with customizable styling, as illustrated in the screenshot.

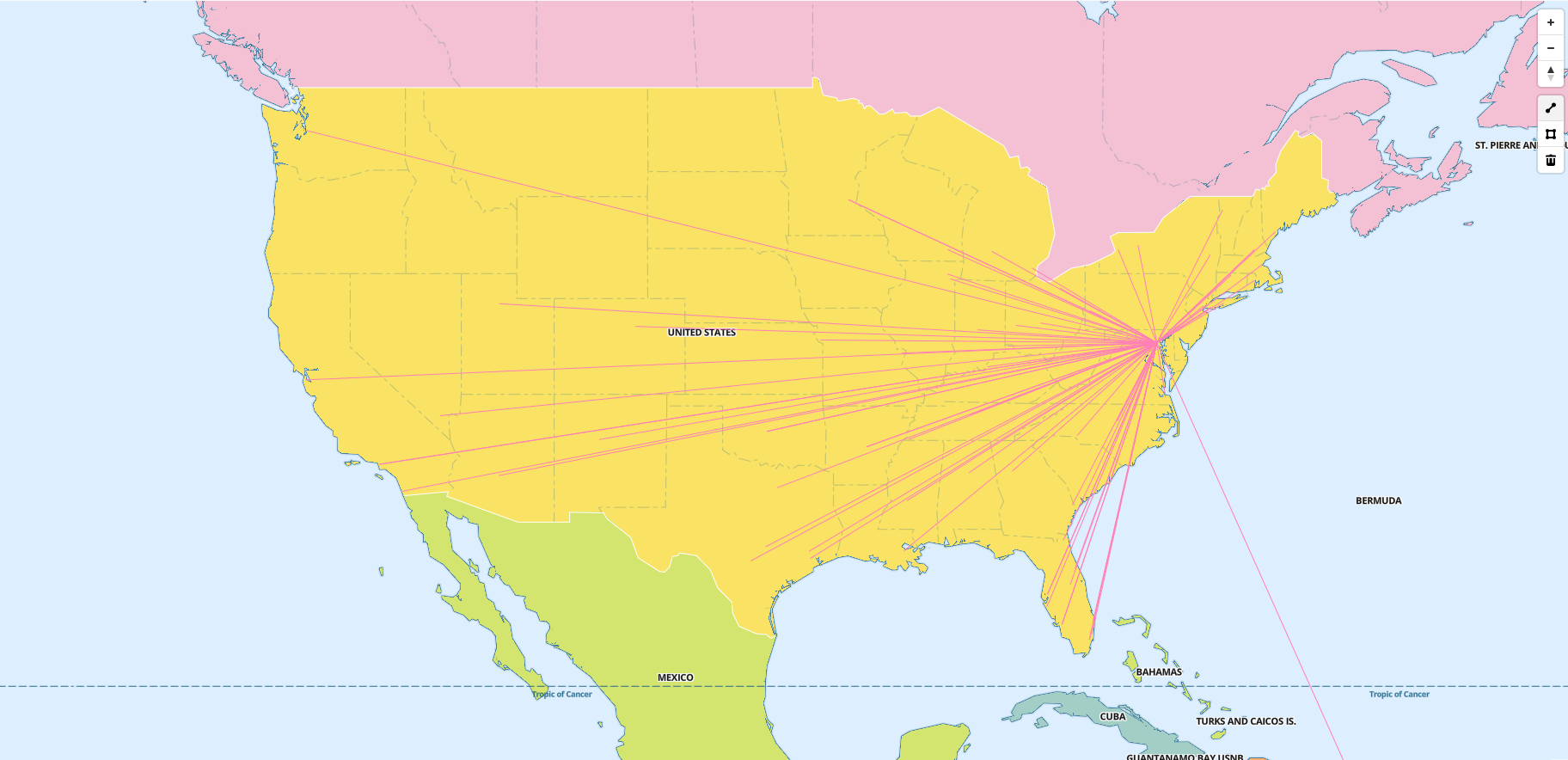

A map with a line layer

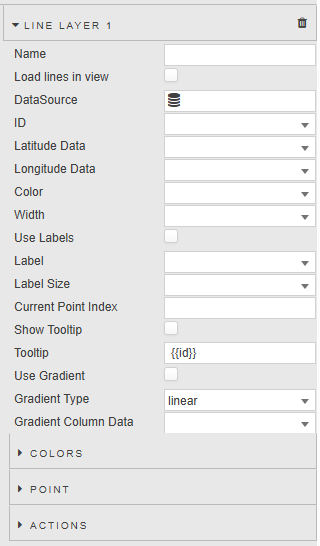

The Line Layer properties are described in the following table.

Lines properties

Property

Description

Name

Define a name for the layer. If you leave this blank the default name layer definition (Layer Type Layer Index.) is used.

Load lines in view

Positions the map so that all points are zoomed in and visible when the map is loaded.

Data Source

A data source that includes geographic coordinates.

ID

Lines are grouped by common IDs.



To draw multiple lines from a single data source, simply group each set of lines by the same ID.

Latitude / Longitude Data

The data source columns for latitude and longitude.

Color

The color of the map line graphic.

Width

The width of the map line graphic.

Use Labels

When this is checked, each line displays a label.

Label

The label displayed next to each line.

Label Size

The label font size.

Current Point Index

You can set a value or view state with the current point index and this highlights the point on the line.

Show Tooltip

When this is checked, the Map displays a tooltip when you mouse over a line.

Tooltip

Set the value you want to see on mouse-over from altitude, ID, latitude, or longitude.

Use Gradient

When this is checked the color gradient indicator is shown.

Gradient Type

Select the gradient type from linear or data driven. A linear gradient provides a consistent color transition based on a fixed scale, while a data-driven gradient adapts to the data, offering a more tailored visualization.

Gradient Column Data

This uses color gradients to visually represent data values within a column.

Colors

Property

Description

Color





Percent



Point

Property

Description

Color





Size



Actions

Refer to Actions for details.

Concentric Circles

The Concentric Circles properties enable you to add concentric circles layers to maps, helping you with:

  • Visualizing Range: Showing coverage areas, like cell tower range.

  • Data Analysis: Segment areas for demographic or environmental studies.

  • Navigation: Indicate distances for logistics and emergency planning.

  • Comparative Studies: Compare impacts at different distances.

  • Interactive Maps: Enhance user engagement with dynamic information.

You can specify a latitude and longitude to set the center of the first circle at that location. The radius of the first circle can be defined based on a distance from this center point, such as a 50KM radius. Subsequent circles can either be drawn from the edge of the first circle or independently, each with its own specified radius and center point.

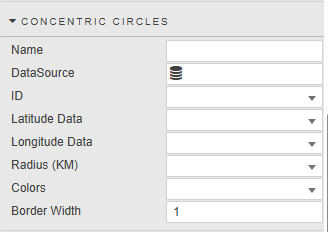

The Concentric Circles properties, shown in the screenshot, are described in the table below.

Concentric Circles properties

Property

Description

Name

Define a name for the layer. If you leave this blank the default name layer definition (Layer Type Layer Index) is used.

DataSource

Specify the data source for the Concentric Circle. The data source of the concentric circles layer must have the following properties defined:Radius (KM): A list that contains a set of distances (KM). For each distance in the list it draws a circle x km from the center point. For example ((25 50 100);(50 75)). Here we have 2 items, the first list contains 3 values which draw 3 circles from its center point at 25 km, 50 km and 100 km, the 2nd item in the list draws 2 circles from its center point at 50 km and 75 Latitude and Longitude: The column coordinates for the central point of the circles. (Latitude Range: -90 to 90),(Longitude Range: -180 to 180). Colors: Colors can be defined for each concentric circle. This is optional. Refer to the following section for a sample data source query .

ID

A distinct identifier for each circle.

Latitude Data

The data source columns for latitude.

Longitude Data

The data source columns for longitude.

Radius (KM)

The radius of the concentric circle graphic.

Colors

The color of the concentric circle graphic

Border Width

The border width of the concentric circle graphic.

Sample data source

The following example shows concentric circles over Irish airports and uses the data source shown in the code snippet below.



Copy
([]
        id:(1 2);
        location:(`Dublin`Cork);
        distance:( (25 50 100);(25 50 75));
        colors:(("#FF0000";"#FFA500";"#00FF00");("#FF0000";"#FFA500";"#00FF00"));
        latitude:( 53.2528 51.8491);
        longitude:(-6.2574 -8.4899)
        )

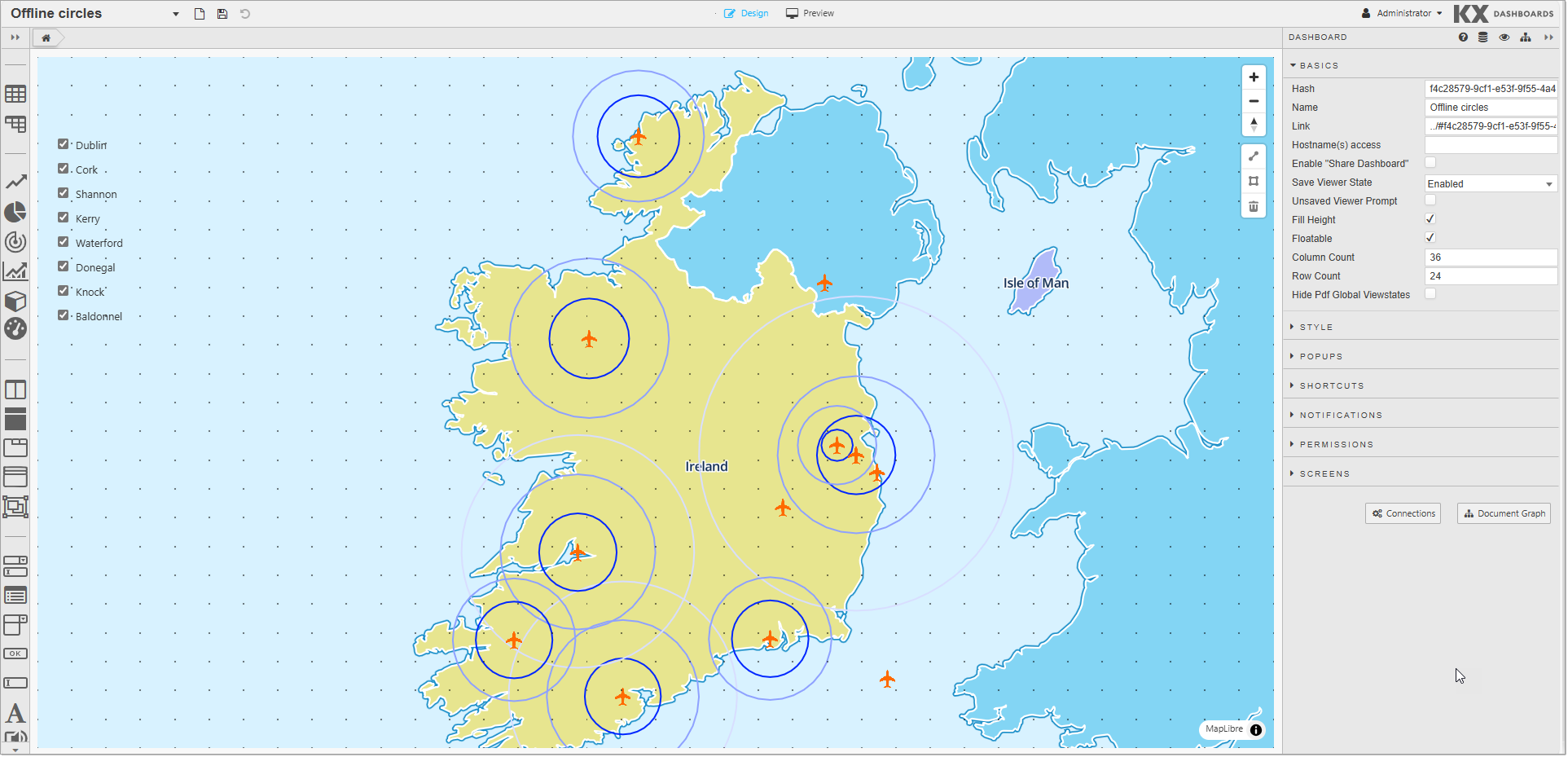

Concentric Circles example

Heatmap

Heatmaps show the density of points over an area by displaying a continuous gradient between points.

As well as being useful for visualizing point density, heatmaps also help you to visualize relative differences between those points. The following screenshot shows an example of a heatmap.

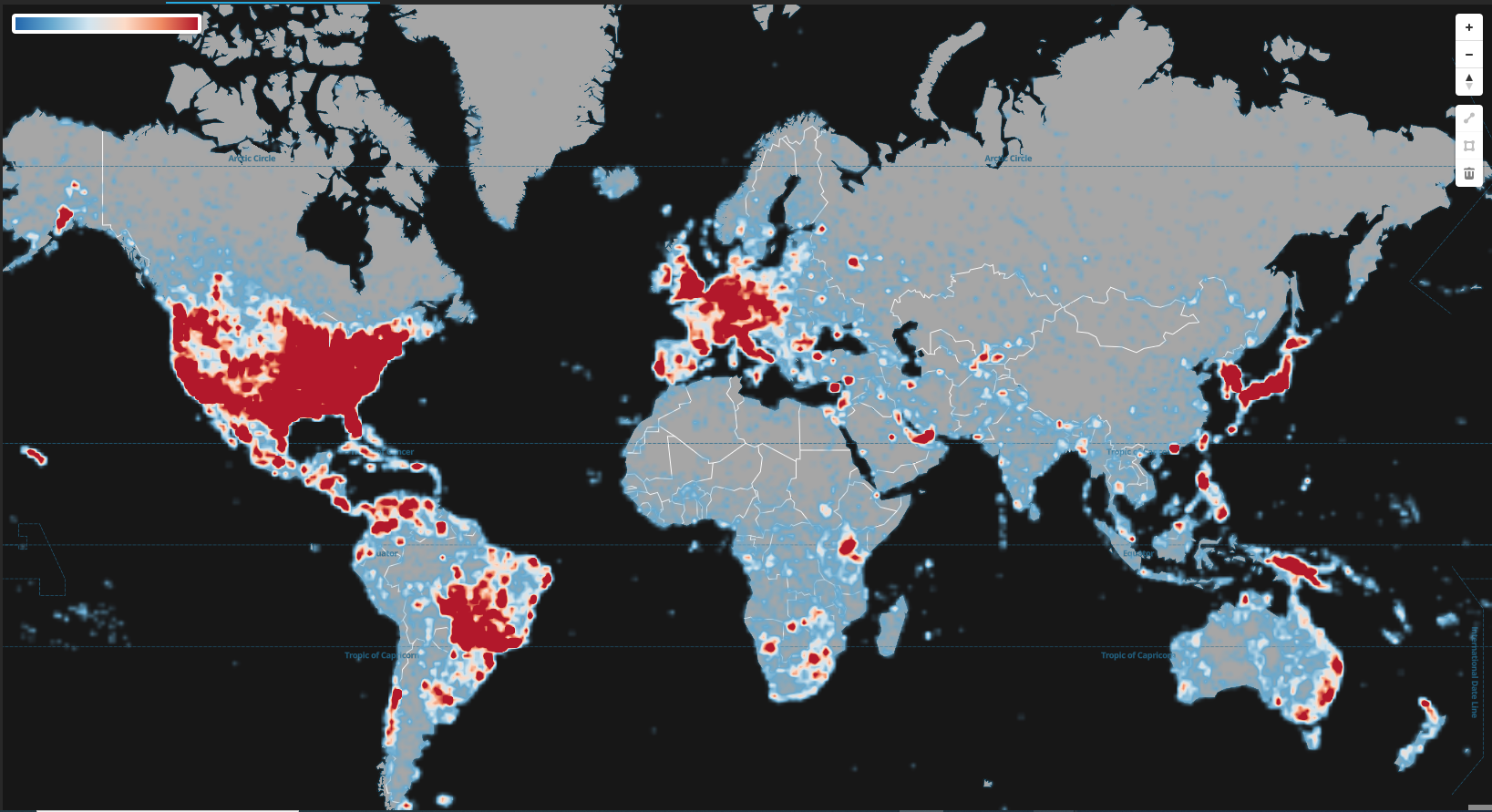

An Map with a heatmap

Configure the properties described in the following table.

Heatmap properties

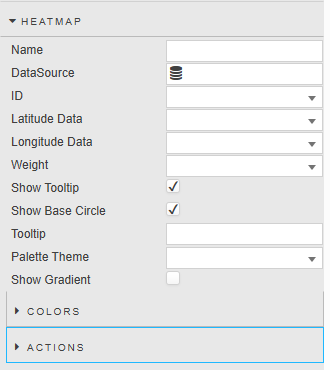

The Heatmap properties, shown in the screenshot, are described below.

Property

Description

Name

Define a name for the layer. If you leave this blank the default name layer definition (Layer Type Layer Index) is used.

Data Source

A data source that includes geographic coordinates.

ID

A distinct identifier for a point.

Latitude / Longitude Data

The data source columns for latitude and longitude.

Weight

This determines the weight for each individual node.

Show Tooltip

When this is checked, a tooltip is displayed when you move the mouse over points on the map.

Show Base Circle

When this is checked, the Map displays a circle for each of the specified coordinates

Tooltip

Set the value you want to see for tooltip at mouse-over.

Palette Theme

Define the Palette Theme for the Heatmap Colors.

Show Gradient

When this is checked the color gradient indicator is shown.

Colors

These settings, shown below, specify the gradient colors used in the Heatmap.

Heatmap colors

Property

Description

Color

These allow you to set the gradient color from minimum density to maximum density.

Actions

Refer to Actions for details.

Heatmap Grid

The Heatmap Grid feature in KX Dashboards allows you to visually represent large datasets using color gradients, making it easier to identify patterns, trends, and outliers. Each grid cell corresponds to a data point, with colors indicating values, enabling you to quickly assess variations across the data. This feature is highly effective for data analysis, providing an intuitive way to interpret complex information at a glance.

A map with a heatmap grid

Configure the properties described in the following table.

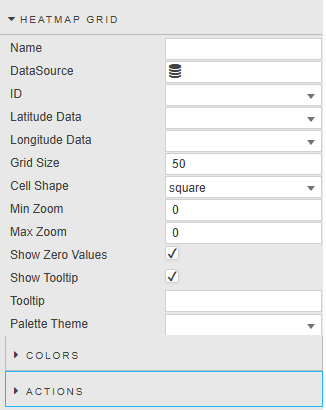

Heatmap grid properties

Property

Description

Name

Define a name for the layer. If you leave this blank the default name layer definition (Layer Type Layer Index) is used.

Data Source

A data source that includes geographic coordinates.

ID

A distinct identifier for a point.

Latitude / Longitude Data

The data source columns for latitude and longitude.

Grid Size

The length of each cell side (in kilometers).

Cell Shape

The shape of each cell, either Square or Hexagon.

Min Zoom / Max Zoom

The Min and Max Zoom levels determine the range in which the heatmap range is displayed.

A zoom level determines how much of the world is visible on a map.

Map component provides maps in 23 zoom levels, with 0 being the lowest zoom level (fully zoomed out) and 22 being the highest (fully zoomed in).Zoom Levels:

At zoom level

You can see

0

The Earth

3

A continent

4

Large islands

6

Large rivers

10

Large roads

15

Buildings

Show Zero Values

If True shows the color gradient for values that are zero, otherwise the color gradient is transparent.

Show Tooltip

When this is checked a tooltip is displayed when you move the mouse over points on the map.

Tooltip

Set the value you want to see for tooltip at mouse-over.

Palette Theme

Define the Palette Theme for the Heatmap Grid Colors

Colors

These settings, shown below, specify the gradient colors used in the Heatmap.

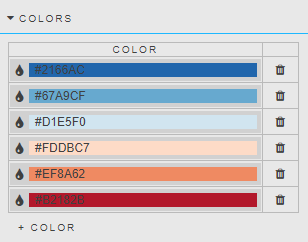

Heatmap colors

Property

Description

Color

These allow you to set the gradient color from minimum density to maximum density.

Actions

Refer to Actions for details.

Bounds

These properties are described in the following table.

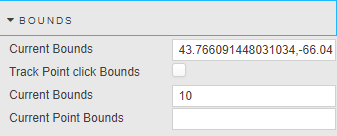

Bounds properties

Property

Description

Current Bounds

A bound is defined by its southwest and northeast points in longitude and latitude. If you zoom in or out on the map, the current bound location is saved to this property. This is used to map selected bounds coordinates to a View State Parameter.

Track Point click Bounds

When this is checked, you can track the bounds coordinates of a point when clicked.

Selected Point Bound Size

This property is used to define a bounds around a point. This allow you to click on a point and draw a rectangle around the point . The width and height of the rectangle is defined by this property.

Current Point Bounds

Displays the point bounds coordinates.

Annotation

The Annotation properties, shown below, enable you to add annotations to the map using lines or polygon shapes.

Screenshot

Property

Description

Enable

When this is checked, you can annotate on the map, using either lines or polygons. A set of annotation controls are displayed on the left-hand side of the map. Annotation Controls: There are 3 options in the annotation controls.

Screenshot

Line Draw

Polygon Draw

Delete Annotation

Filter on Draw

This is used when you are drawing a polygon on an area of the map. When this box is checked and when you are finished drawing, all the points/circles inside the area remain and the rest of the points/circles are filtered out.

Zoon on Draw

This is used when you are using a polygon to draw on an area of the map. When this box is checked the map zooms to the area after you finish drawing.

Selected Annotation

Specific annotation currently highlighted or selected on the map.

Animated Circles

These properties enable you to configure customized animated circles on your map, as illustrated below.

A map with animated circles

Configure the properties described in the following table.

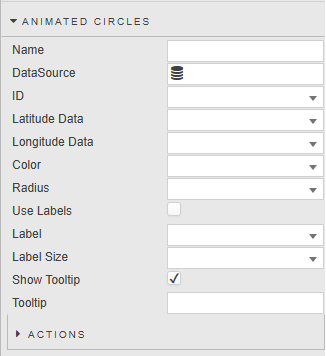

Animated circles properties

The Animated Circles properties, shown in the screenshot, are described below.

Property

Description

Name



Define a name for the layer. If you leave this blank the default name layer definition (Layer Type Layer Index) is used.



Data Source

A data source that includes geographic coordinates.

ID

A distinct identifier for an animated circle.

Latitude / Longitude Data

The data source columns for latitude and longitude.

Color

The color of the animated circle graphic.

Radius

The radius of the animated circle graphic.

Use Labels

When this is checked the map displays a label for each of the animated circles.

Label

The label displayed next to each animated circle.

Label Size

The label font size.

Show Tooltip

When this is checked, the map displays a tooltip on animated circle mouseover.

Tooltip

Set the value you want to see for tooltip at mouse-over.

Actions

Click here to read about Actions..

Icons

These properties present a list of icons that have been added to the css\assets\images folder on the server. These icons, shown in the following screenshot, can be used by the Icon property in the Points properties. Click + Icon to add more icons.

Icon properties

Night/Day Layer

These properties enable you to add a layer to determine the region of day and night time based on a current date/time value, as illustrated below.

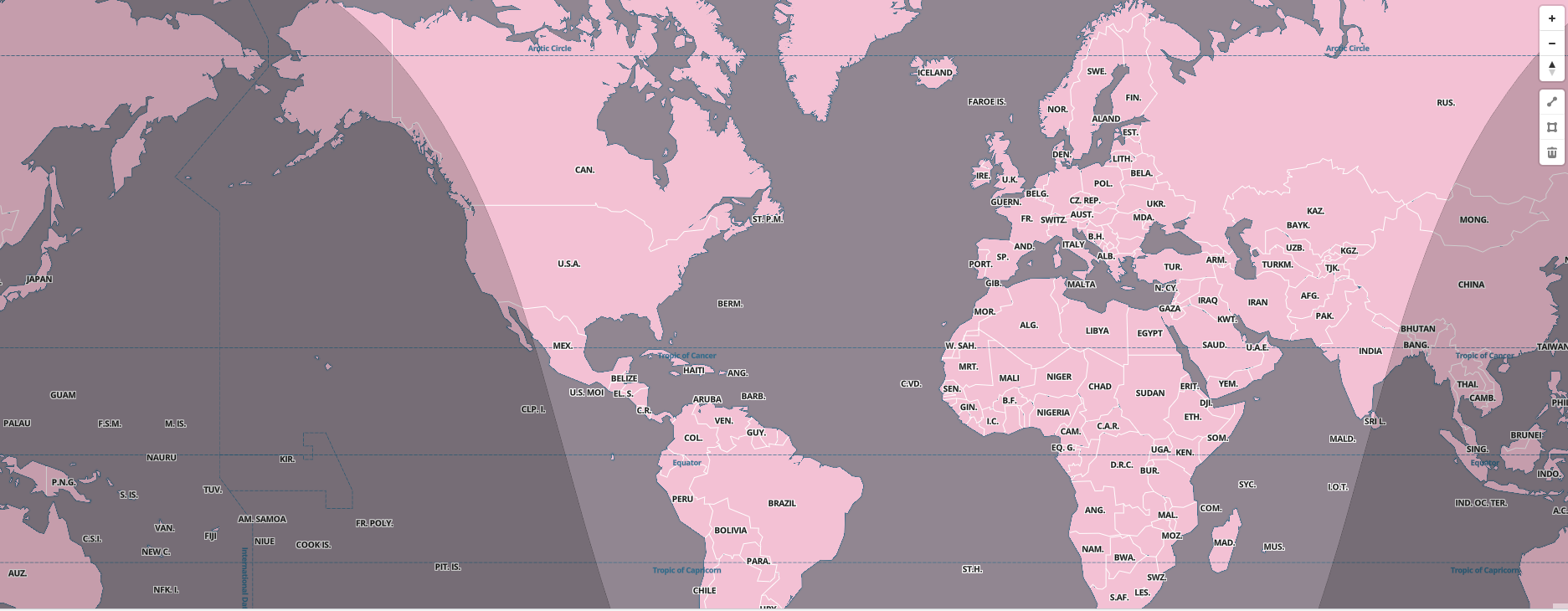

A map with a nigh/day layer

The properties are described below.

Night and day later properties

Property

Description

Show Layer

Use this toggle to specify whether the map shows the Night and Day layer.

Current

The current date/time value.

Style

You can use the Style properties, shown below, to override the default colors used in the map component.

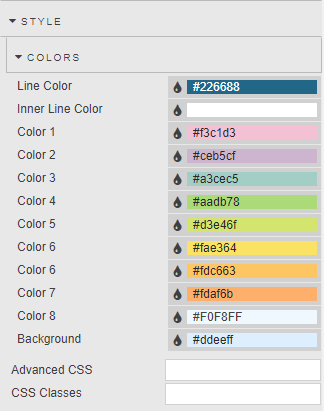

Style properties

3D Models

With the 3D Models in map, you can see 3D models when you zoon into the data property, as illustrated in the screenshot below.

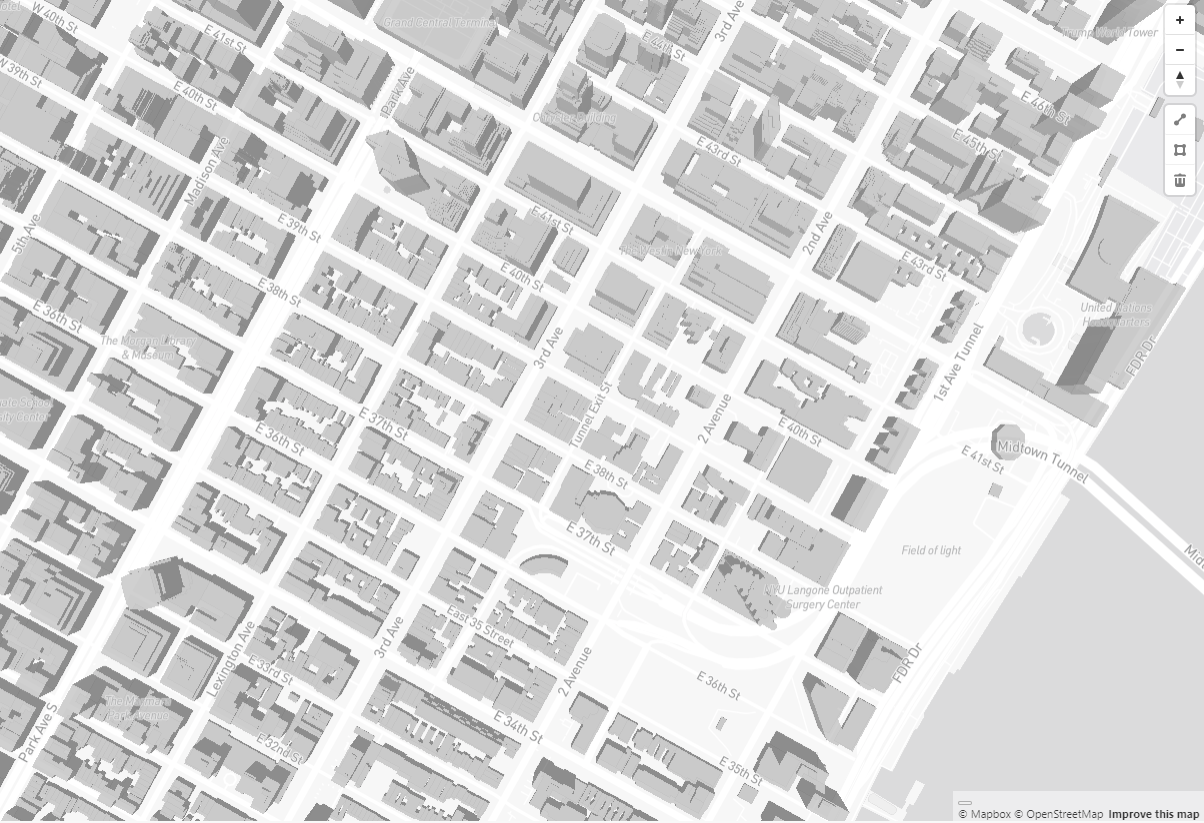

Representation of 3D map

Configure set the 3D Models properties described in the table below.

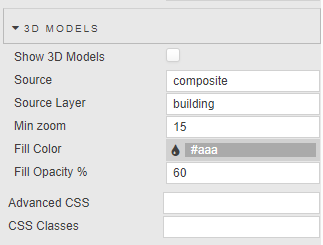

3D Models properties

Property

Description

Show 3D Models

Check this box to enable the display of 3D models on the map.

Source

This defines the origin of the geographical data, such as a vector tile, raster, or GeoJSON. It provides the data to be visualized in the map layers.By Default, this value is set to Composite. A composite type is a type of source that combines multiple vector tile sources into a single source. This allows for efficient handling of complex maps with multiple datasets by merging layers across sources, which optimizes data loading and performance, especially for high-detail or 3D maps.

Source Layer

A source layer specifies a particular layer within a vector tile source. This is necessary when a vector tile source contains multiple layers, each representing different feature types, like roads or buildings. The source layer allows the map style to target and style individual layers within a vector source.

Min Zoom

This sets the minimum zoom level at which the 3D models are visible.

Fill Color

This option allows you to set the color used to fill the 3D models.

Fill Opacity

This controls the transparency of the fill color.

Tile Server

Integrating a custom-styled tile server with Maps in KX Dashboards allows you to load and display dynamic, custom-designed map layers. This integration provides full control over the map's appearance, enabling you to apply unique styling and visual elements to geographic data. By leveraging vector tiles from external servers, you can create highly customizable, interactive maps tailored to your specific needs, enhancing the overall data visualization experience in KX Dashboards. The following illustrates a map using custom tile server.

A map using custom tile server

Configure the properties described in the following table.

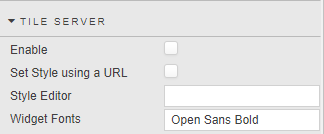

Custom tile server properties

property

description

Enable

When this is checked, interaction to a custom Tile Server is enabled.

Note

To see the results after changing this property, the Dashboard must be saved and reloaded.

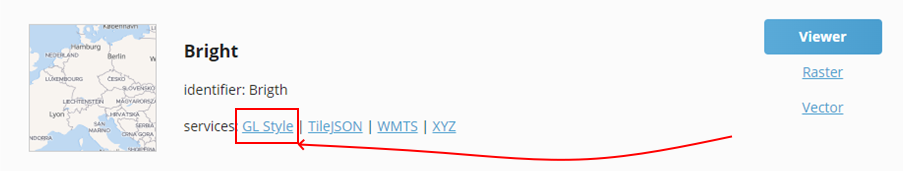

Set Style using a URL

Defines whether to set the style using a URL end point or by using the editor to define JSON.

Style URL

Set the style of the map based on a URL end point.

Style Editor

Define the JSON style configuration.

Widget Fonts

Set the font name to be used by the Map Component, for example, "Open Sans Bold." This font is stored on the tile server and will be used by point clusters and labels.

Refer to Tile Server Installation and Setup for detailed instructions on working with Tile Server.

External API

This Map component can also be used online, if needed, which enables you to set external APIs.

External APIs refer to external services that provide mapping data and functionalities.

You can set the properties described in the following table.

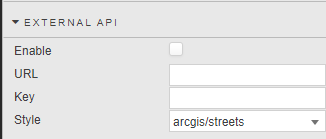

External API properties

property

description

Enable

When checked, you can use the external API on the map.

URL

This is the endpoint of the external API.

Key

This is the authentication key required to access the services of the external API.

Style

This field allows you to choose the visual representation of the map.

Layers

The Layers properties, shown below, enable you to add the following types of layers on to your map.

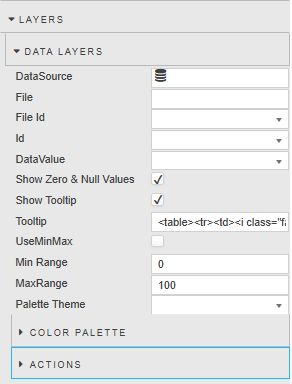

Layers properties

Data Layers

A Data layer combines GeoJSON geometric coordinates with kdb+ data. You can draw regions on the map based on GeoJSON coordinates and then map kdb+ data to each of these regions to create insightful visualizations. This enhances your ability to derive meaningful insights from complex geographic and tabular datasets. The following example shows unemployment rate data across US states. Values are highlighted in color gradient from highest (bright red) to lowest (bright green).

Data Layers example

Configure the properties described in the following table.

Layers properties

The Data Layers properties, shown in the screenshot, are described below.

Property

Description

Data Source

A data source that defines the underlying dataset to be used by the Layer.

File

Set the file name for the GeoJSON file. Files must be hosted locally in the Map modules directory for example modules\OfflineMap\css\assets\layers.

File Id

This is the id used in the GeoJSON file. It is used to link coordinates from the GeoJSON file with the kdb+ Data.

Id

This is the ID used in the kdb+ data. It is used to link data with the GeoJSON file coordinates.

Data Value

A column from the data source that is used to define the color of each of the regions.

Show Zero & Null Values

When this is checked, any region that has a zero or null value is displayed. If unchecked regions with zero or null values are not displayed.

Show Tooltip

When checked, it enables the display of a tooltip.

Tooltip

This displays a tooltip over each map region. By default we map the color, id and value of the region.

UseMinMax

When this is checked, the Min Range and Max Range values define the numeric range over which colors are mapped in a gradient defined by the color palette

Min Range

The smallest data value that maps to the start of the color range. For example, the leftmost or coldest color.

MaxRange

The largest data value that maps to the end of the color range. For example, the rightmost or hottest color.

Palette Theme

Refer to Palette Theme for details.

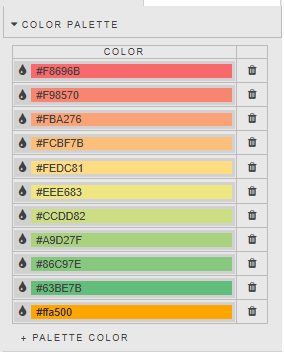

Color Palette

Layers properties

Actions

Click here to read about Actions.

Media Layers

A media layer allows you to add a geo-referenced video or image on top of a map layer, as illustrated in the following screenshot.

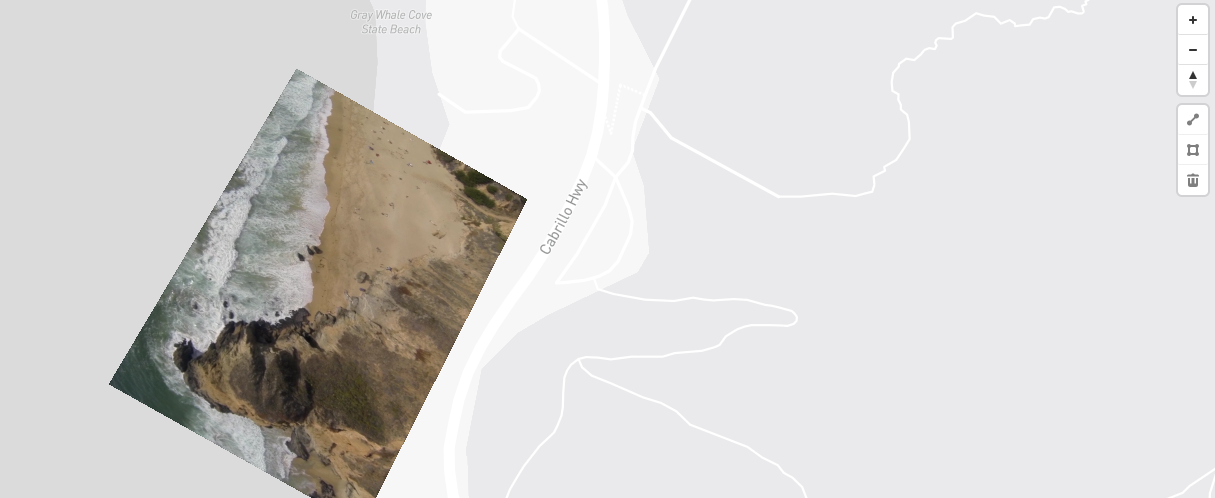

Video overlay on a map

Configure the Media Layer properties described in the following table. Click the trash can icon to delete a layer.

Media Layers properties

Property

Description

File

Set the file name. Files must be hosted locally in the Map modules directory for example modules\OfflineMap\css\assets\layers. The file can be either a video or image file.

Coordinates

Set the georeferenced coordinates. The media image requires four geographic coordinates (latitude and longitude) that correspond to the four corners of the image. These are specified in an array and represent the top left coner, the top right corner, the bottom right corner, and the bottom left corner.



For example:

[-122.51596391201019, 37.56238816766053]

[-122.51467645168304, 37.56410183312965]

[-122.51309394836426, 37.563391708549425]

[-122.51423120498657, 37.56161849366671]



These coordinates map the raster image to a specific region on the map, basically “stretching” the image to fit the bounding box formed by these points, as seen in the screenshot above.

Order

The order in which the media layers are applied to the map


This must be checked if the media file is an image.

Hosted Layers

You can add a hosted GeoJSON layer to your maps. Each layer provides rules about how the renderer must draw certain data in the browser and the renderer uses these layers to draw the map on the screen, as illustrated below.

Overlay hosted layer

Configure the Hosted Layer properties described in the following table. Click the trash can icon to delete a layer.

Hosted layer properties

Property

Description

File

Set the file name. Files must be hosted locally in the Map modules directory, for example modules\OfflineMap\css\assets\layers.

Name



Properties

The properties section defines the colors used by the layer. For example:{"paint": {"fill-color": "#f08","fill-opacity": 0.4}}.

Tooltip



Show Tooltip



Simple Layers

You can add a text based GeoJSON layer to the maps. Each layer provides rules about how the renderer draws certain data in the browser and the renderer uses these layers to draw the map on the screen. An example of a text file converted to GeoJSON is shown below.

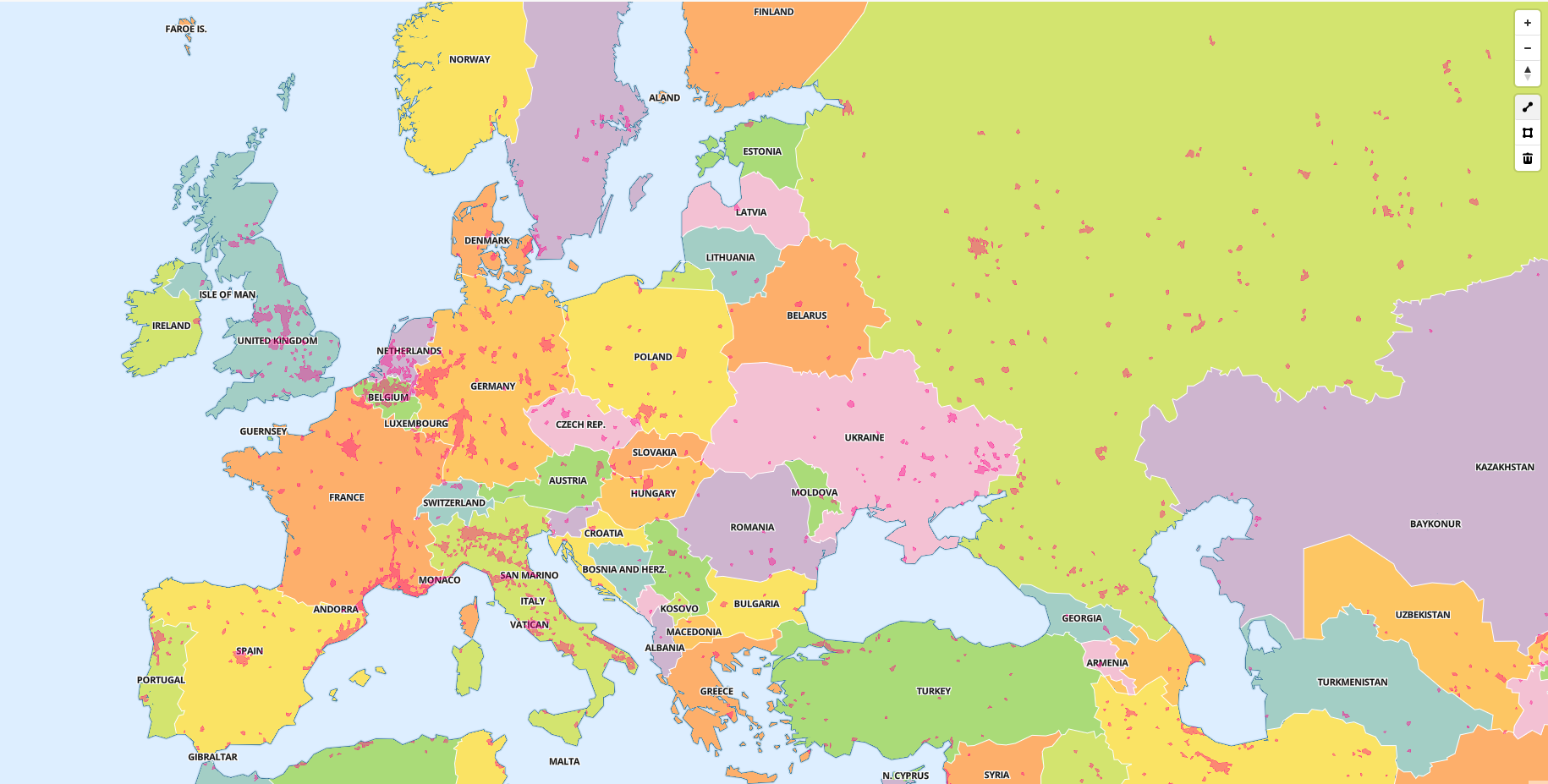

Simple layers example

Configure the Simple Layer properties described in the following table.

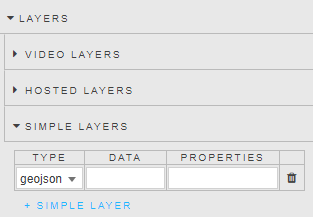

Simple Layers properties

Property

Description

Type

Determine the layer type, which can be either GeoJSON or vector.

Name



Data

The data used by the layer (specified in either JSON or GeoJSON format)



Example:{ "type":"FeatureCollection", "features": [{ "type":"Feature", "properties": { "scalerank":3,"area_sqkm":1002.565, "featureclass":"Urban area" }, "geometry": { "type":"Polygon", "coordinates":

[[[-121.37881303595779,38.39168793390614],[-121.37881303595779,38.39168793390614],[-121.37881303595779,38.39168793390614],[-121.42144609259859,38.3858743352733],[-121.48040890184362,38.39168793390614],[-121.51616899298959,38.444811306302185],[-121.58203060594559,38.4678848333205],[-121.5930118478076,38.626428127591964],[-121.46772233771595,38.671102403308296],[-121.39491024461671,38.75068410903778],[-121.31532853888723,38.82349620213702],[-121.23913163947286,38.82349620213702],[-121.19226111538413,38.73701569269657],[-121.13750993537089,38.65836416274834],[-121.19386308478518,38.61312144627681],[-121.26453060594432,38.58219310155013],[-121.32057369676485,38.53666616470099],[-121.37881303595779,38.4933096380081],[-121.37062232143953,38.43667226821621],[-121.37881303595779,38.39168793390614]]] } } }] }

Properties

The style properties used by the layer.Example:{ "id": "urban-areas-fill", "type": "fill", "source": "urban-areas", "layout": {}, "paint": { "fill-color": "#f08", "fill-opacity": 0.4 } }

Tooltip



Show Tooltip



Note

Asset storage

To avoid having to use any external APIs we store all our assets including glyphs, images, and tiles in the "css\assets\" folder inside the component code.

Margins

Refer to Margins for details.

Format

Refer to Format for details.

Drawing a line

This section describes how to draw a line on a map to calculate the distance between 2 or more spots. Once the line is drawn, the distance (in kilometers) is shown in a popup. An example of this is illustrated in the following screenshot.

Line annotation

To draw a line annotation on an Map:

  1. In the annotation control, on the right-hand side of the map, click on the line icon.

  2. Select the starting point on the map by using a left or right mouse click.

  3. You can click at any other point on the map to connect this line.

  4. The line is displayed as a yellow dashed line while editing.

  5. Once you are finished editing you can click on the line. This sets the line to blue.

To delete a line from an Map:

  1. Select the line and click on the trash icon in the annotations properties, on the left-hand side of the map.

Drawing a polygon

This section describes how to draw a polygon on an Map by selecting a set of points/circles. This is illustrated in the following screenshot.

Draw a polygon on a map

To draw a polygon on an Map:

  1. In Preview mode, click on the polygon icon in the annotation controls, on the right-hand side of the map.

  2. Click on the map where you want to start the polygon and then click on multiple sections of the map to connect the polygon points.

  3. The polygon is displayed as a yellow dashed line while editing.

  4. Once you are finished editing, you can click on the line. This sets the polygon to blue.

Note

If Zoom on Draw is checked then the map zooms in on the polygon after the polygon is applied. If Filter on Draw is checked then the map only displays the points/circles inside the polygon shape after the polygon is applied.

To delete a polygon:

  1. Select the polygon and click on the trash icon in the annotations menu.

Tile Server Installation

KX Dashboards uses tileserver-GL , a self-hosted map tile serv er for use whe n leveraging web-based maps and online map tilers are unavailable to be used in offline use cases and air gapped environments.

Note

Tile Server Documentation

Tile Server Github guide can be found here https://github.com/maptiler/tileserver-gl

Full documentation can be found here https://tileserver.readthedocs.io/en/latest/

Prerequisites

Operating systems

  • Windows (x64) or greater

  • Ubuntu 22.04 or greater

  • macOS 14 (x64/arm64) or greater

Getting Started

Install from npm, to the directory which you wish to install to.

Choose from one of the following options:

Option 1: Install globally from npmjs

BASH

Copy
npm install -g tileserver-gl

Option 2: Install locally from source

BASH

Copy
git clone https://github.com/maptiler/tileserver-gl.git
    cd tileserver-gl
    npm install

Note

Using tileserver-gl-light

tileserver-gl-light can be used but is unable to handle any raster functions, if this is required for future use, please install the full version

Map Data

To render data offline, an mbtiles file is required for the area of interest. While there are many ways to acquire and create mbtiles files, it is recommended that you use the mbtiles files here: https://osm.dbtc.link/mbtiles/

Note

mbtiles Recommendation

  • Recommended mbtiles file download - 2024-06-25-planet.mbtiles

  • This mbtiles file is for OpenStreetMap Data that was last updated in June 2024.

    As this is a static file, map updates must be obtained by the user.

  • KX is not responsible for providing map updates.

Adding Map Data and Styles

Once the OpenStreetMap (OSM) data is downloaded, this needs to be copied to the same directory as the tileserver-gl install (along with the accompanying config.json file, if present).

The following URL can be used to obtain a set of sample fonts and files for the tile server:

https://github.com/maptiler/tileserver-gl/releases/download/v1.3.0/test_data.zip

From the test_data.zip file, the styles and fonts directories should be copied to the tileserver-gl installation folder.

Note

Tile Server Configuration File

The config.json file in Tile Server GL configures map styles, fonts, and data sources for the server. It helps define how map data is rendered, including the structure of the directories containing styles and fonts. If no config.json is defined for Tile Server GL, the server will use its default settings for rendering map tiles.

The config.json file in Tile Server GL configures map styles, fonts, and data sources for the server. It helps define how map data is rendered, including the structure of the directories containing styles and fonts. If no config.json is defined for Tile Server GL, the server will use its default settings for rendering map tiles.

The tileserver-gl directory structure should therefore look similar to this:

Custom tile server fonts

Inside the styles folder, the following styles are provided: osm-bright and klokantech-basic.

Note

Additional styles

Additional styles can be added by following the user guide in the tileserver-gl documentation.

Before you start the tile server

Tileserver-gl defaults to port 8080, therefore it is important to assign a new port config when starting the tileserver-gl, to target a different port as your KX Install will likely conflict with this port assignment.

It is recommended to use port 8082, which was tested abd working.

For longer term use, it is recommended that the user write a startup script for ease of deployment, KX is not responsible for providing this.

Start up code below:

BASH

Copy
tileserver-gl 2024-06-25-planet.mbtiles -p 8082

KX Dashboards Tile server Integration

  • Drag the Map component onto the canvas.   Drag new map component

  • In the Tile Server property section, check Enable.

  • The Style can be specified in one of two ways: Using a URL Using the Editor

Set the style using URL

Tile Server GL Style

  1. Check Set Style using a URL .

  2. Using a browser, navigate to the host and port for the Tile Server. Right click the link for the chosen Style and copy the link to the clipboard.

  3. Paste the URL into the Style URL property in KX Dashboards

  4. Save and r eload/ refresh the page.

Set the style using Editor

Tile Server GL Style

  1. Uncheck Set Style using a URL.

  2. Using a browser, navigate to the host and port for the Tile Server. Click the link for the chosen s tyle and copy the contents to the clipboard.

  3. Paste the contents into the Style Editor property.

  4. Save and r eload/ r efresh the page.

Further Reading
