Publish and Export

This page describes how to publish dashboards, how to install and configure the pdf server, and how to configure file export properties for use on published dashboards.

Once a dashboard is saved and published, anyone with the appropriate permission can view or edit it.

Tip

A screenshot of a dashboard can be taken using the PDF button: Screenshot. See PDF server for more details.

Publish KX Dashboards

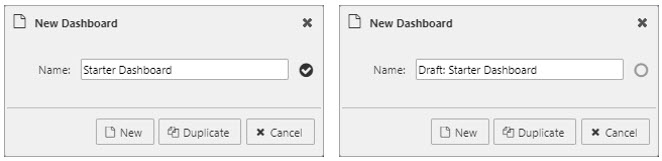

New dashboards are published by checking the box to the right of the Name; to convert a dashboard into draft form, uncheck this selection.

Screenshot

Draft dashboards are prefixed 'Draft' in the Document List. Draft dashboards are not visible in the Viewer.

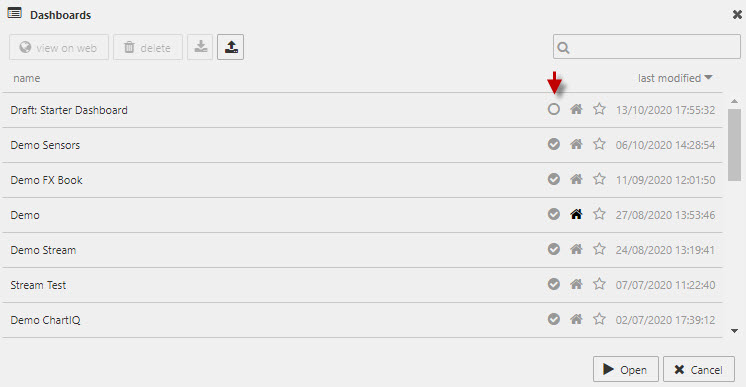

Draft dashboards show in the Manage dialog with no selection check; click the check to publish the dashboard. The Manage dialog is accessible at the end of the Document List.

Screenshot

Screenshot

To view a dashboard, select a dashboard and click Screenshot. This opens the dashboard Viewer in a new tab.

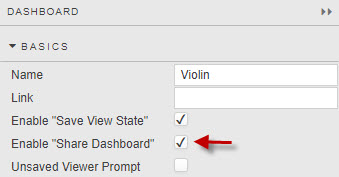

Enable "Share Dashboard" in the Dashboard menu

Screenshot

Share dashboard state

KX Dashboards can be shared to include active states, allowing users to reproduce a view using specific user selections and inputs. This information is stored as part of the shared link.

Screenshot

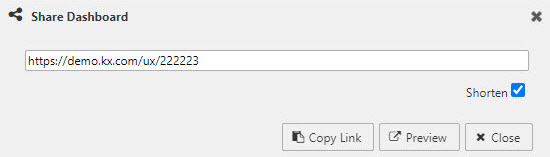

The share dashboard option also includes a link shortener.

Screenshot

File export

The following charts and grids have File Export properties which can be used to export data from these components as a CSV, XLS file, or screenshot option:

The options available vary depending on the component type. The full set of properties are described in the table below.

The following screenshots show an example of the File Export properties for a Data Grid, followed by the properties for a ChartGL component.

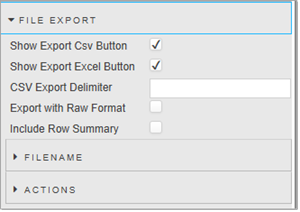

File Export for Data Grid

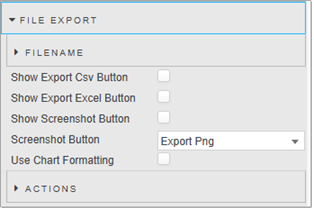

File Export for CharGL

Property

Description

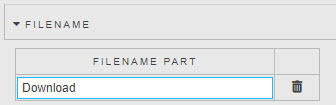

Filename

You can set a variable to be used as either a filename for the exported file, or a View State Parameter which can be linked to a Text Input for user defined file names.

Screenshot

Screenshot

Show Export CSV Button

When enabled, clicking the CSV button exports the displayed values as a CSV file. This can be set for all components that support File Export.

Show Export Excel Button

When enabled, clicking the Excel button exports the displayed values as an XLS file. This can be set for all components that support File Export.

CSV Export Delimiter

Specify the delimiter to be used in a CSV export. If none is specified a comma is used by default. This is only valid for Data Grids.

Full Export Override

This is only valid for Pivot Grids. Overrides the pivot query dataset with an alternative dataset.

Export with raw format

When this is enabled the raw format of the data is exported. This is only valid for Data Grids and Pivot Grids.

Show Screenshot Button

When enabled, clicking the PNG button takes the action set in the Screenshot Button parameter. This setting is not applicable to Pivot Grid or Data Grid components.

Screenshot Button

These options are only valid when Show Screenshot Button is enabled. These set the action taken when users click the PNG button. This can be to either export an image of the chart as a PNG, copy it to the clipboard, or do both. The options are: Export PNGCopy to ClipboardExport PNG & Copy to Clipboard When the image is copied to the clipboard a notification is displayed, unless notifications are being blocked in the user's browser. Copying to clipboard is not supported in Internet Explorer.

Use Chart Formatting

When checked, the formatting used by the chart axes is applied to the exported data. This only applies to the ChartGL component.

Include Row Summary

Check this to include any footers that are defined in the Data Grid. The footer detail is set in the Column properties and could, for example, be used to add a total to a column of numbers. That total is then exported with the data in the grid. This only applies to the Data Grid component.

Field

Description

Actions

Outputs details of the file export.

Property

Details

fileType

The type of file exported e.g xlsx, csv, png

fileName

The exported name of the file

dashboardName

Name of the dashboard

dashboardId

The id used in the dashboard

timestamp

The time of the export

isSuccess

Where the export was successful or failed

username

Username used by the person who exported data

component

The component data being exported

meta*

The meta used by the datasource of the exported data

fileRowLength*

The row length of the datasource used by the exported data

* not applicable to all components

PDF server

Configuration & Installation

Ensure all prerequisites are installed

  • Node.js v16.20.0+ (use LTS)

Install Puppeteer

  • Run npm install in the /pdf folder.

  • If installation fails, see the troubleshooting section in /pdf/README.md.

Start the PDF Server

Start the PDF server by running pdf.q in the /pdf folder

Enable PDF Button

Update the /www/config.json file, add "PdfUrl": "http://localhost:5011/":

JSON

Copy
{
    "NewPdf": true,
    "pushStateBase": "",
    "PdfUrl": "http://localhost:5011/"
}

The enabled PDF Server adds the PDF icon in the Toolbar menu of KX Dashboards

Additional Information

Dashboard Printable Area

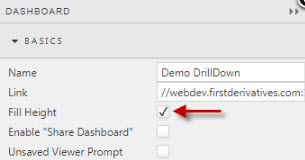

The PDF prints the viewable area. If the Dashboard scrolls off-screen, click Fill Height in Dashboard Properties to make the dashboard view a single page.

Expand Tab Component Contenet While Publishing

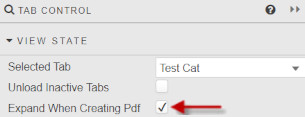

To enable Tab Control component to expand while creating pdf make sure to click Expand When Creating Pdf in Tab Control Properties.

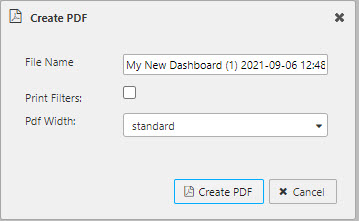

PDF Menu

File Name

Exported PDF file

Print Filters

When enabled, the PDF includes details of shared view states from the URL.

PDF Width

Select between standard or snapshot current preview (1920px)
