ChartGL

This page describes the configuration and use of the ChartGL component, which enables you to visualize very large datasets.

ChartGL uses WebGL to access the graphics hardware on the local computer accelerating the rendering process by a factor of many thousand. In WebGL2 a combination of vertex shaders (position) and fragment shaders (color) are used to render data points providing the capability to display millions of data points in milliseconds.

Multiple large data sources can be plotted on the same chart with high speed and performance using layers. The following screenshot shows an example of historic FX data plotted using four layers.

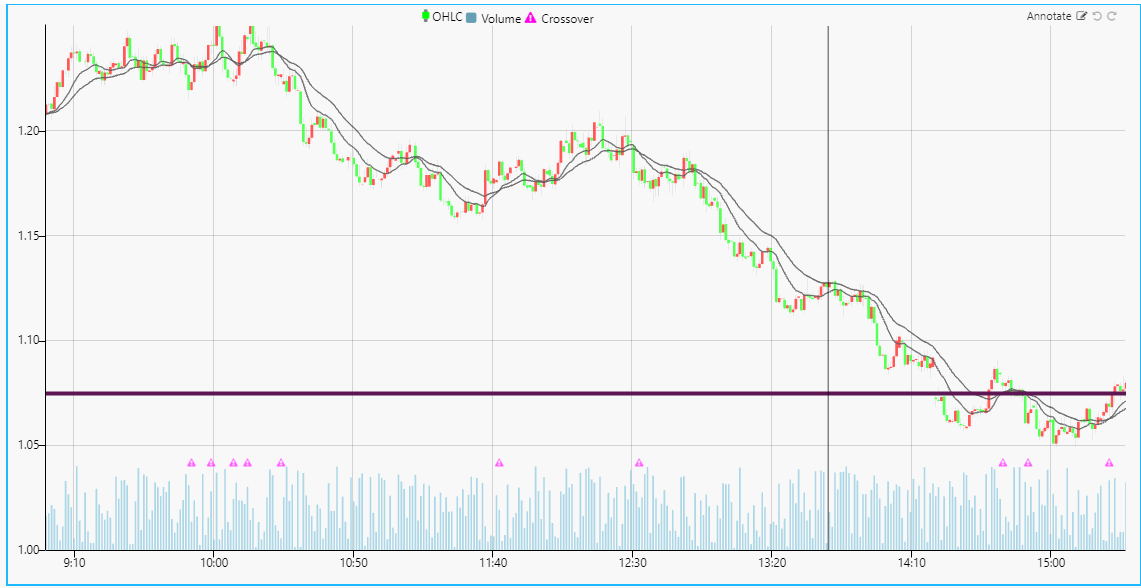

Screenshot

Note

Overcoming browser WebGL limits

Each ChartGL uses its own WebGL context. Browsers limit the number of active WebGL contexts, so when this limit is reached, charts can fail to load. To combat this issue we recommend adding ChartGL components to the Layout Panel component and setting Enable WebGL Context for the layout panel. When this is enabled, every ChartGL, that is added directly to the Layout Panel, shares a single WebGL context, meaning the user can have an unlimited number of charts.

This page provides information on the following:

Set up a ChartGL component

To set up a ChartGL component, click and drag the component into the workspace and configure the following:

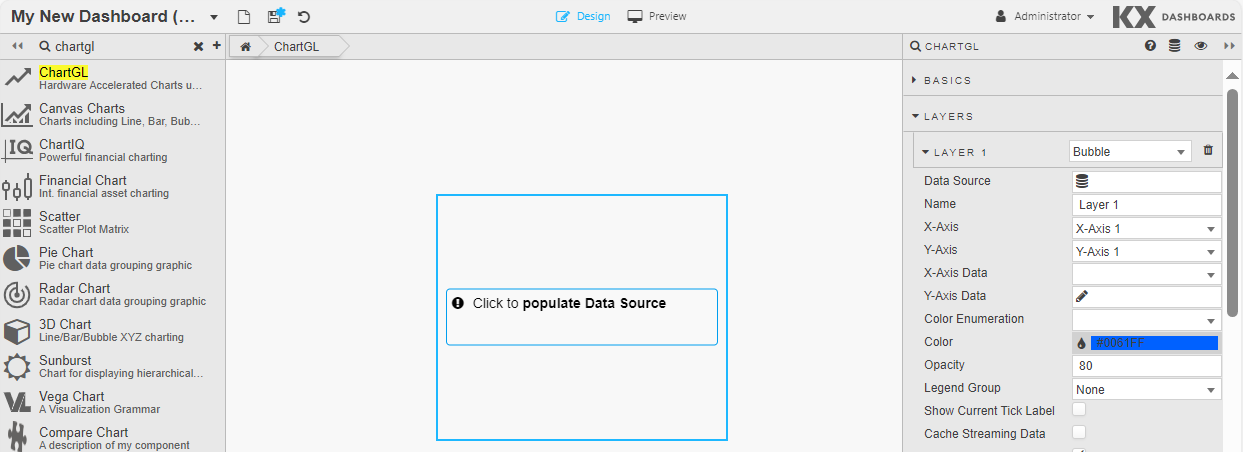

  1. Click to populate Data Source or select a Data Source from the Layers properties to open the Data dialog. Click New and proceed with configuring the Data Source.

    ChartGL Data Source

    ChartGL best fits your data to the chart using a wild card selector in Y-Axis Data. Otherwise, select your data to plot for X-Axis Data and Y-Axis Data in the Layers properties. Alternatively, format your axes in the relevant properties for each; x-axis and y-axis

  2. Next define the properties as defined in the following sections.

ChartGL properties

The following sections provides details on how to configure the properties of the ChartGL component.

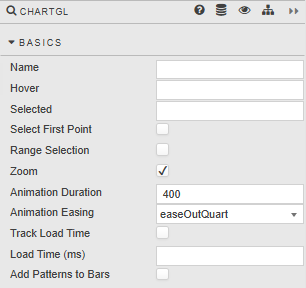

Basics

Open the Basics properties on the right and configure the properties described in the following table.

Basics properties

Property

Description

Name

Enter a name for the component.

Hover

Enter a View State Parameter which stores the x-axis value contingent on where the hover bar is on the chart. For example time or date.

Selected

Enter a View State Parameter to store the x-axis value at the selected position. For example time or date.

Selected First Point

Use this option to allow for the first time in the first layer to be selected when the chart loads.

  • When checked, and when the Selected property is set to a viewstate, it sets the Selected viewstate value to be the first point in the first layer on initial chart load.

  • This is unchecked by default.

Range Selection

When this is enabled the user can click and drag on a chart as normal, but instead of zooming, it stores the x-axis range values. The values can be accessed by assigning view states to the Selection Min & Selection Max properties on the x-axes. It turns the chart into a selector that stores the values in the x-axis Selection Min and Selection Max view state properties.

Range Selection

When this is checked, it overrides the Zoom checkbox. If both are left unchecked, the chart does not zoom or use the range selection.

Zoom

Check to enable/disable zoom. This feature makes it possible to zoom on a region within both x and y axis, or individually on each x or y axis. Double-Clicking the chart resets the chart to its initial state.

ChartGL Zoom

Mouse scroll can be used for x-axis zoom, with mouse scroll + shift key for y-axis zoom.

Animation Duration

Define the zoom animation and length of time in milliseconds to complete.

Animation Easing



This drop-down list of options are used to control how the zoom animation transitions. For example bounce creates a spring like effect. There are a number of options for you to try.

The Pan feature lets you pan along one axis at a time. To pan, click and drag from anywhere on the axis. Double-clicking the chart resets the chart to its initial state.

ChartGL Pan

Track Load Time

Enable this to set the Load Time (ms) value.

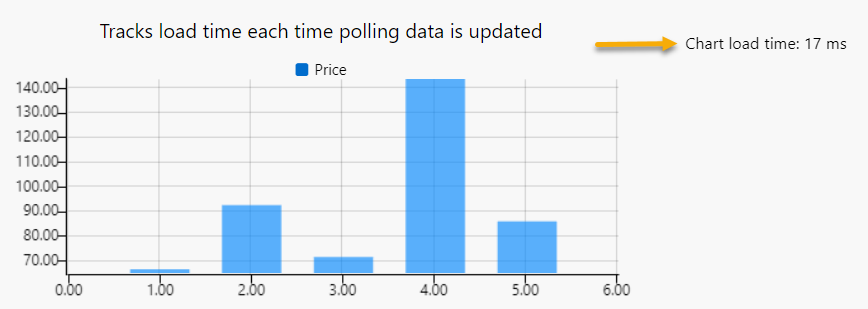

Load Time (ms)

Use this to set a View State Parameter used to track the load time of the chart, in milliseconds, on each update of the data. This is useful for tracking the performance of the chart to see how long it takes to load. When Track Load Time is checked, and Load Time (ms) has a view state set, it writes the time in ms into the view state. This view state value can then be displayed in a text component, as shown in the Chart Load Time on the following chart.

ChartGL Load Time

Add Patterns to Bars

This can be used to improve accessibility and visual distinction by adding patterns to bars.

  • When checked, patters are added to bars so that users do not have to rely solely on color to distinguish between the bars.

  • When unchecked, bars use solid colors.

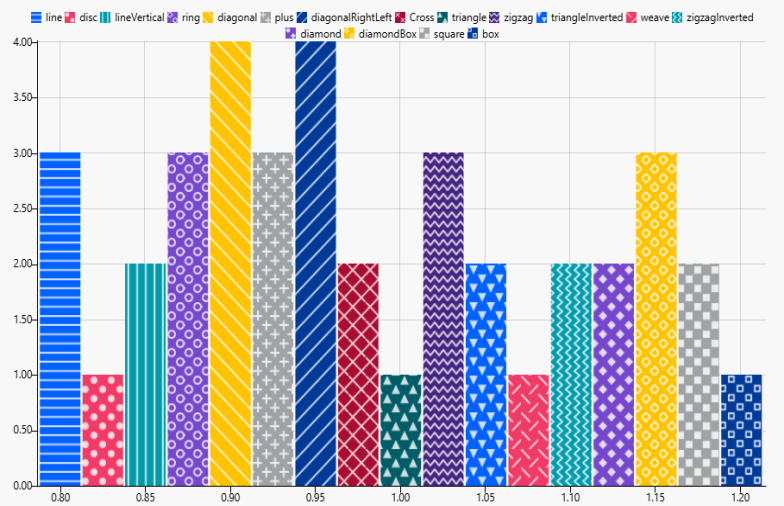

The following illustrates how adding patterns to bars make it easier for someone with deuteranomaly to distinguish the individual bars in the chart.

ChartGL Load Time

Layers

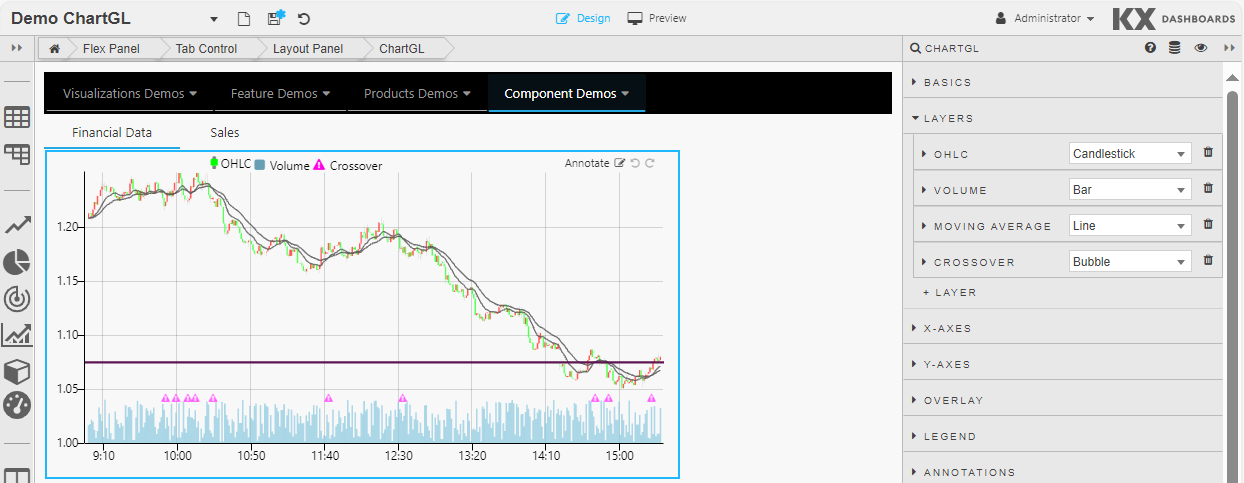

Layers provide the ability to display multiple different data sources on the same chart. In the following example four layers have been defined; Candlestick, Bar, Line, and Bubble.

ChartGL Layers

To add a Layer, click Layers and Layer 1 to open the properties for the first layer.

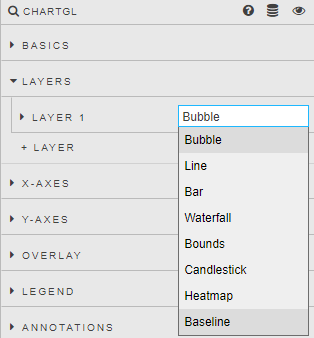

ChartGL Layer Types

Select a layer type from the dropdown. The properties displayed vary depending on the option selected. Click on the relevant tab, in the note section below, to view the properties for each type of layer.

Bubble

Line

Bar

Waterfall

Bounds

Candlestick

Heatmap

Baseline

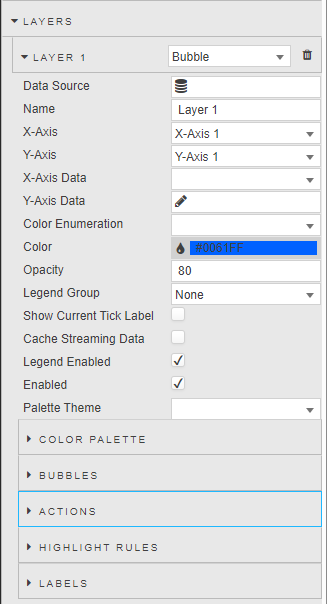

Bubble layers display data as individual points.

Define the following

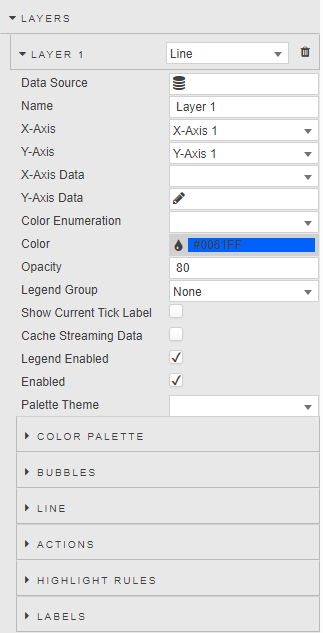

Line layers connect each data point resulting in a continuous line.

Define the following properties:

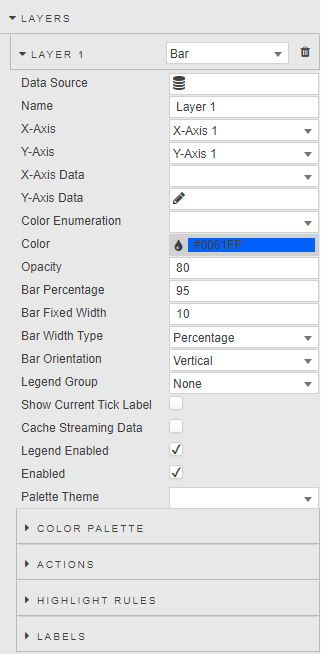

Bar layers display data as bars.

Define the following properties:

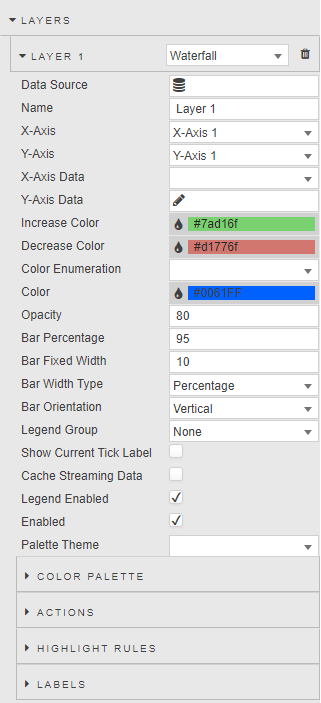

Waterfall layers display data as increase and decrease bars.

Define the following properties:

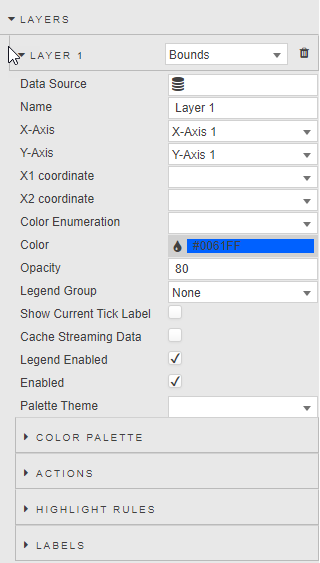

Bounds layers draw a bounding area between two points.

Define the following properties:

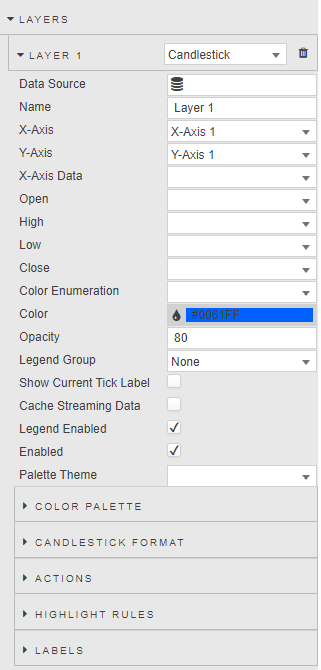

Candlestick layers display data as candlesticks.

Define the following properties:

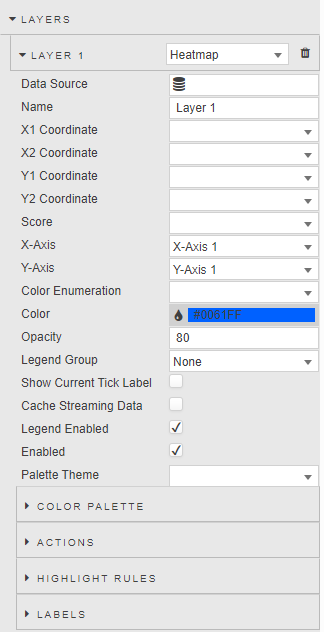

Heatmap layers draw a heatmap chart.

Define the following properties:

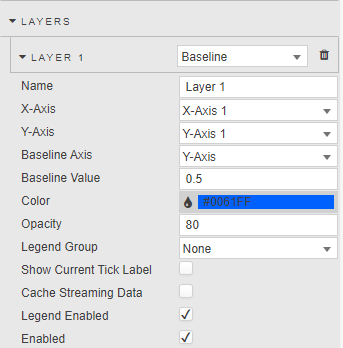

Baseline layers draw a line at a single point.

Define the following properties:

General layer properties

The following properties are relevant to all layer types, unless otherwise stated.

Property

Description

Data Source

Specify the Data sources to be used for the layer. This is not relevant to Baseline layers as they use Baseline Value/Baseline Axis to specify where the Baseline is drawn.

Name

Enter a name for the chart legend label.

X-Axis

Select the x-axis from the defined Axes.

Y-Axis

Select the y-axis from the defined Axes.

X-Axis Data

Select data columns to plot X-Axis data from the data source.

Y Axis Data

Select data columns to plot Y Axis data from the data source.

Y Axis includes a wildcard selection (*) for multiple columns. Wildcard selection uses columns of the most common, single kdb type. For example, if a data set has one date type column, three integer type columns, and five float type columns, only the five float columns are plotted using the wildcard. The integer and date columns are ignored.

Regular expressions can also be used to define the y-axis.

When a wildcard or regular expression is used, the Color Palette defines point color for each added column.The following kdb data types are supported; byte, char, date, datetime, float, int, long, minute, month, real, second, short, string, symbol, time, timespan, and timestamp.

Multi X-Axis

Add multiple x-axis groups by selecting one or more columns to populate the multiple x-axes, without affecting the datapoints shown. Each column is a separate x-axis, grouping values together. You can format the axis settings on the layer's linked x-axis under Multi Axis Format.

An example of multi x-axis groups is shown in the below image. This displays two charts, the top one showing 2 levels of multi axis grouping, and the bottom showing 3 levels. For the bottom chart, the x-axis is populated with the column grp1 and the multi axis grouping is populated with the columns grp2 and grp3, which each display an x-axis. Each unique value in the column is seen as a group, so it displays one label for each unique value. For example, in the bottom chart, the grp3 axis is split into two groups: Jan and Oct.

Multi Axis

The below query is used in the above example:

Multi Axis

Open/High/Low/Close

These properties only relate to Candlestick layers. Select the data columns that correspond to the open, high, low, and close price points.

X1 Coordinate

This is only relevant for Heatmap layers. Select the data column that corresponds to the X1 coordinate.

X2 Coordinate

This is only relevant for Heatmap layers. Select the data column that corresponds to the X2 coordinate.

Y1 Coordinate

This is only relevant for Heatmap layers. Select the data column that corresponds to the Y1 coordinate.

Y2 Coordinate

This is only relevant for Heatmap layers. Select the data column that corresponds to the Y2 coordinate.

Score

This is only relevant for Heatmap layers. Select the data columns that correspond to each. Colors are defined by the Score column, which uses the Color Palette.

Color

Select color for single plot (non-wildcard/regex) data sets.

Opacity

Define the opacity of the points from a value between 0 (transparent) and 100 (opaque).

Bar Percentage

This is only relevant for Bar layers and defines the bar width as a percentage of its range when Bar Percentage is selected from Bar Width Type.

Bar Fixed Width

This is only relevant for Bar layers. It defines the bar width as a fixed value when Fixed Width is selected from Bar Width Type.

Bar Width Type

This is only relevant for Bar layers. Use the dropdown to select either Bar Percentage and Fixed Width.

Bar Orientation

This is only relevant for Bar layers. Use the dropdown to select either Vertical and Horizontal.

Bar Increase Color

This is only relevant for Bar layers and is used when the layer type is Waterfall to define the visual style of the Waterfall bar increase colors based on the previous bar value.

Bar Decrease Color

This is only relevant for Bar layers and is used when the layer type is Waterfall to define the visual style of the Waterfall bar decrease colors based on the previous bar value.

x1

This is used, when the layer type is Bounds, to define the x1 coordinates of the bounding region.

x2

This is used, when the layer type is Bounds, to define the x2 coordinates of the bounding region.

Baseline Axis

This is used when, the layer type is Baseline, to define the axis at which to draw the baseline, based on the Baseline Value.

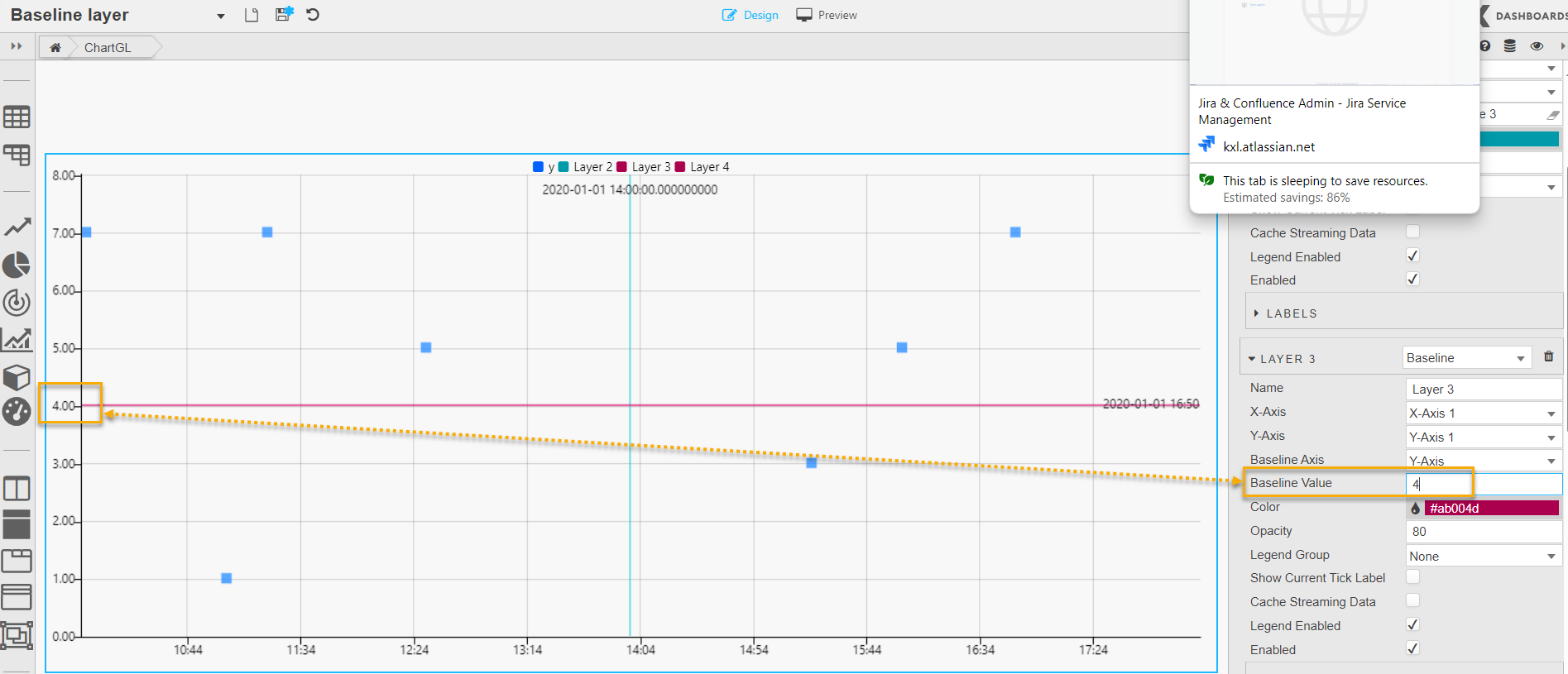

Baseline Value

This is used, when the layer type is Baseline, to define the value at which to draw the baseline. The axis on which this is draw in set in Baseline Axis. This is used in place of a Data Source.

Baseline Value

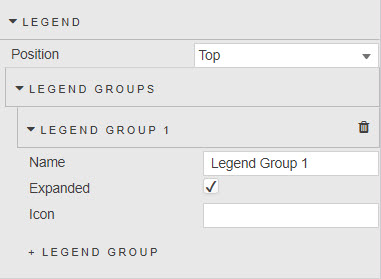

Legend Group (Custom)

Use this dropdown to assign the layer legend to a Legend Group

Legend Color by Column

Select a data column to apply color. When a column is selected, the Color Palette defines point color for each unique value in the column. This is not applicable to Baseline layers.

Show Current Tick Label

Enable this to display the last tick in the series on the y-axis.

Cache Streaming Data

Enable this when using streaming data to improve performance by caching data.

Legend Enabled

Use this to toggle the display of the data legend.

Enabled

Use this to toggle the display of the data layer on the chart and can be tied to a view state parameter.

Bubbles

The following additional properties are configurable when the layer type is Bubble or Line.

Property

Description

Radius Data

This dropdown gives options to set the variable point size for the bubbles. Select either Fixed Size or one of the columns from the associated data source.

Radius Scaling

Define the bubble size.

Scale on Zoom

Increase the bubble size on zoom.

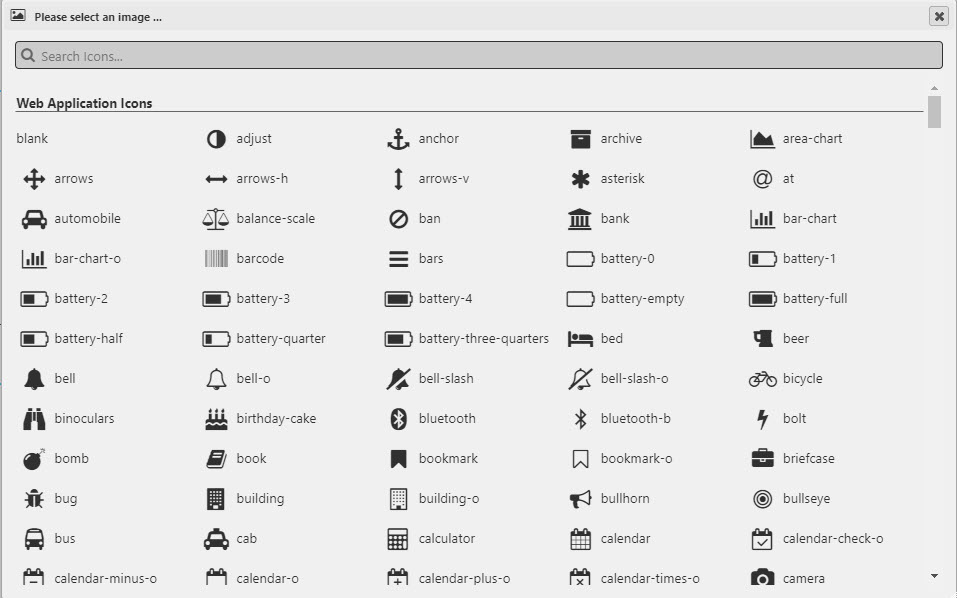

Icon

Use the icon selector to choose an icon to be displayed in the position of the data points on the chart.

Screenshot

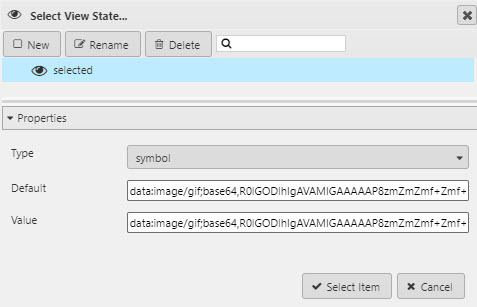

Icons also support a base64 image in a view state parameter.

Screenshot

Color

Set the color of bubbles when using a Line layer

Opacity

Set opacity of bubbles when using a Line layer

Candlestick

The following additional properties are configurable when the layer type is Candlestick.

Property

Description

Bear Color

Set the color for down day candles.

Bull Color

Set the color for up day candles.

Neutral Color

Set the color for flat days.

Bar Percentage

Define the candlestick body width as a percentage of its range when Bar Percentage is selected under Bar Width Type.

Bar Fixed Width

Define the candlestick body width as a fixed value when Fixed Width is selected under Bar Width Type.

Bar Width Type

Use the dropdown to select either Bar Percentage and Fixed Width.

Bar Orientation

Use the dropdown to select either Vertical or Horizontal.

Line

The following additional properties are configurable when the layer type is Line.

Property

Description

Line Width

Set the thickness of the line.

Line Style

Choose between None, Dashed, Dotted.

Dash Gap

When Line Style is Dotted or Dashed, set the size of the gaps.

Dash Width

When Line Style is Dashed, set the width of the dashes.

Fill

Select a fill option: No Fill - No color fill Layer n - For color fill between the charted line and the selected layer. This option is only shown if there is more than one layer. Origin - For color fill between the chart line and X-axis

Fill Color

The color to be used for line fill for single plot (non-wildcard/regex) data sets.

Fill Opacity

The opacity used for line fill.

Fade to Transparent

Where a line fill color is employed, a transparency gradient is applied to the layer.

Span Gaps

Where there is missing data, check this to connect isolated points.

Palette Theme

Define the Palette Theme for the Fill Palette

Fill Palette

This sets the line fill colors for wildcard/regex y-axis or Legend Color by Column. See Palette for further details.

Interpolation

Interpolation lets you estimate a value between two known values explicitly stated in a line graph. You can specify the following interpolation properties.

Property

Description

Interpolation

Choose between the following types of interpolation:

Linear - connects data points with straight lines.

Stepped - assumes that the function remains constant between adjacent data points. It creates a step-like curve where the value jumps from one data point to the next without any intermediate values.

Monotone - the interpolated curve maintains monotonicity (either strictly increasing or strictly decreasing) between data points. Monotone Interpolation comes with a performance caveat, so isn't suitable for streaming.

Stepped Line

Use this to switch between stepped line chart types; Before and After.

Curvature

Set the level of curve to use for Monotone line charts.

Color Palette

The Color Palette sets plot point colors for wildcard/regex y-axis or Legend Color by Column. See Palettes for further details.

Actions

See Actions for full details.

Highlight rules

See Highlight Rules for full details.

Labels

Data labels can be added to any layers. They are placed next to datapoints/bars as desired.

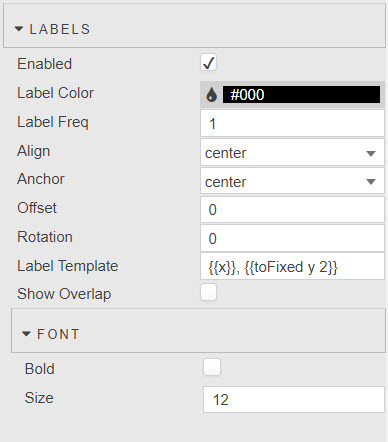

Screenshot

The label properties are described in the following table.

Property

Description

Enabled

Turn on or off data labels. This can be tied to a view state.

Label Color

Set the color of the Label text.

Label Freq

Labels are applied to every nth data point where n is value set here.

Align

Choose the position label; top, bottom, left, right, or center of the data point.

Offset

The offset represents the distance (in pixels) to pull the label away from the data point. This can be specified as a single number (for example 4) or an x,y coordinate (for example 4,10).

Rotation

Set the clockwise rotation angle (in degrees) of the label with the rotation center point being the label center. The default value is 0 (no rotation)

Max Label Quantity

The max number of labels to draw. The default value is 10.

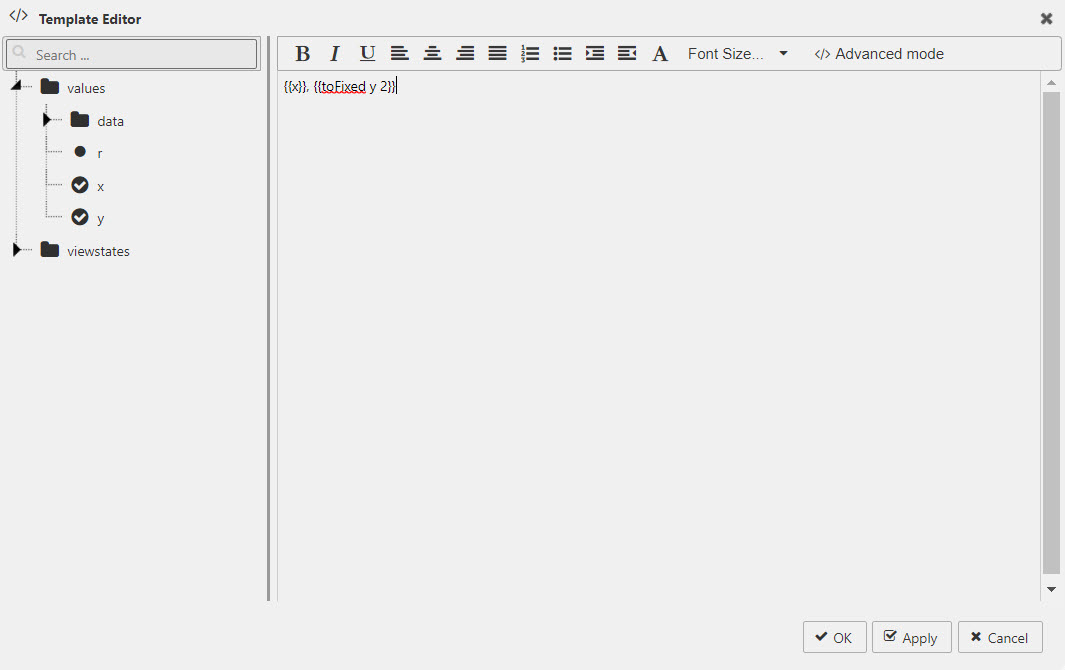

Label Template

Define the data to display. This must return a string; HTML is not supported. Select the data to display with the Template Editor in either Basic or Advanced mode. Existing data and view states can be displayed. Handlebar helpers can be used for formats.

Screenshot

Font

Set the font settings: Bold - check to make the label bold Size - adjust the font size in pixels.

X-Axes

ChartGL supports multiple X-axes. This is useful if you want, for example, to compare different scales, overlay data series, represent different time zones or different geographic coordinates. There is no limit on the number of x-axes that can be added.

The following screenshot shows a ChartGL with 3 x-axes defined; 2 on the bottom of the chart and one on top.

ChartGL Multiple X-Axes

For each x-axis you can define the following properties:

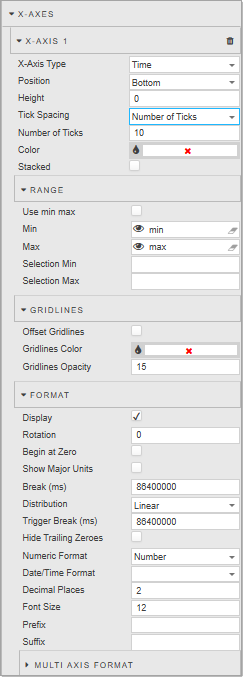

Screenshot

X-Axis General Properties

The general x-axis properties are described in the following table.

Property

Description

X-Axis Type

Choose between, Line, Linear, Category, Time or Logarithmic data.

Position

Select whether you want to position the axis to the top or bottom of the chart.

Height

Set the height of the tick area of the x-axis in pixels.

Tick Spacing

When the X-Axis Type is set to Time, you can specify the type of tick spacing as either: Number of Ticks or Fixed Tick Interval (ms)

The next field displayed depends on the option selected.

Number of Ticks

Set the number of ticks to display in the axis. The default is 10.

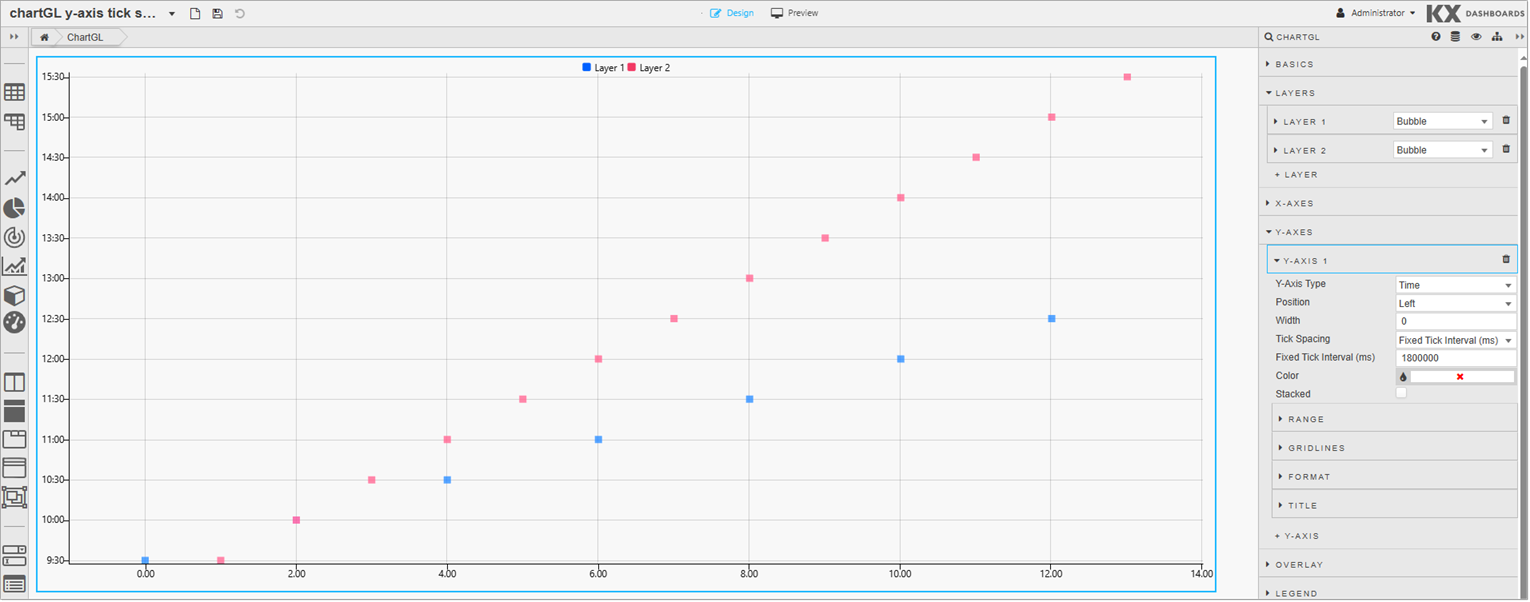

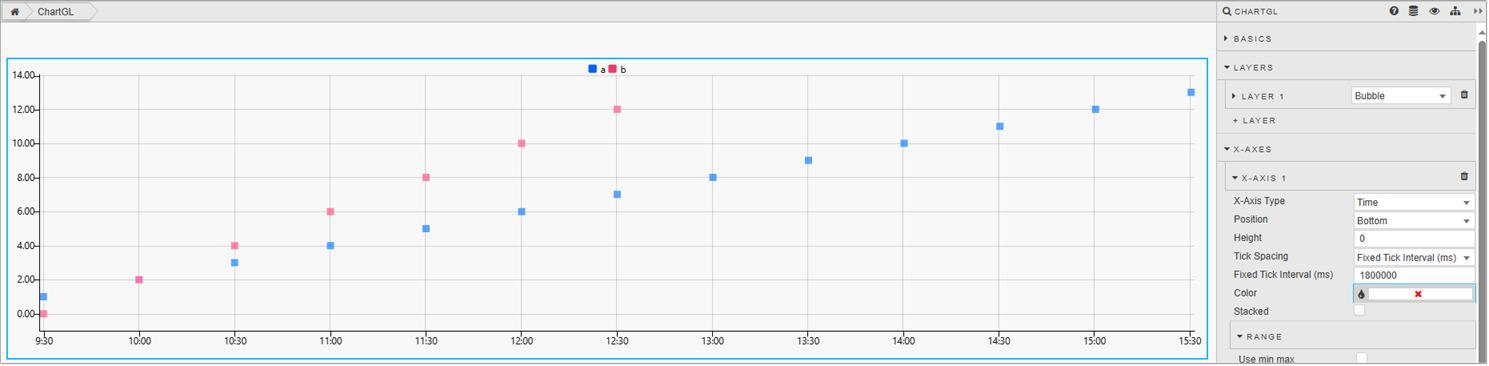

Fixed Tick Interval (ms)

Set the interval between ticks in milliseconds. For example an interval of 1800000 results in 30 min tick intervals on the x-axis.

tick interval

Color

Select the color of the axis.

Filter Unique

Displayed when the Axis Type is set to Category. When using non-linear data (string/symbol), some values may be the same. Filter unique is used for grouping same values together. For example, a data source might have 'b' and 'b' in it twice. If filter unique is enabled it groups points for 'b' as having the same x-axis value. If disabled it shows values at different points.

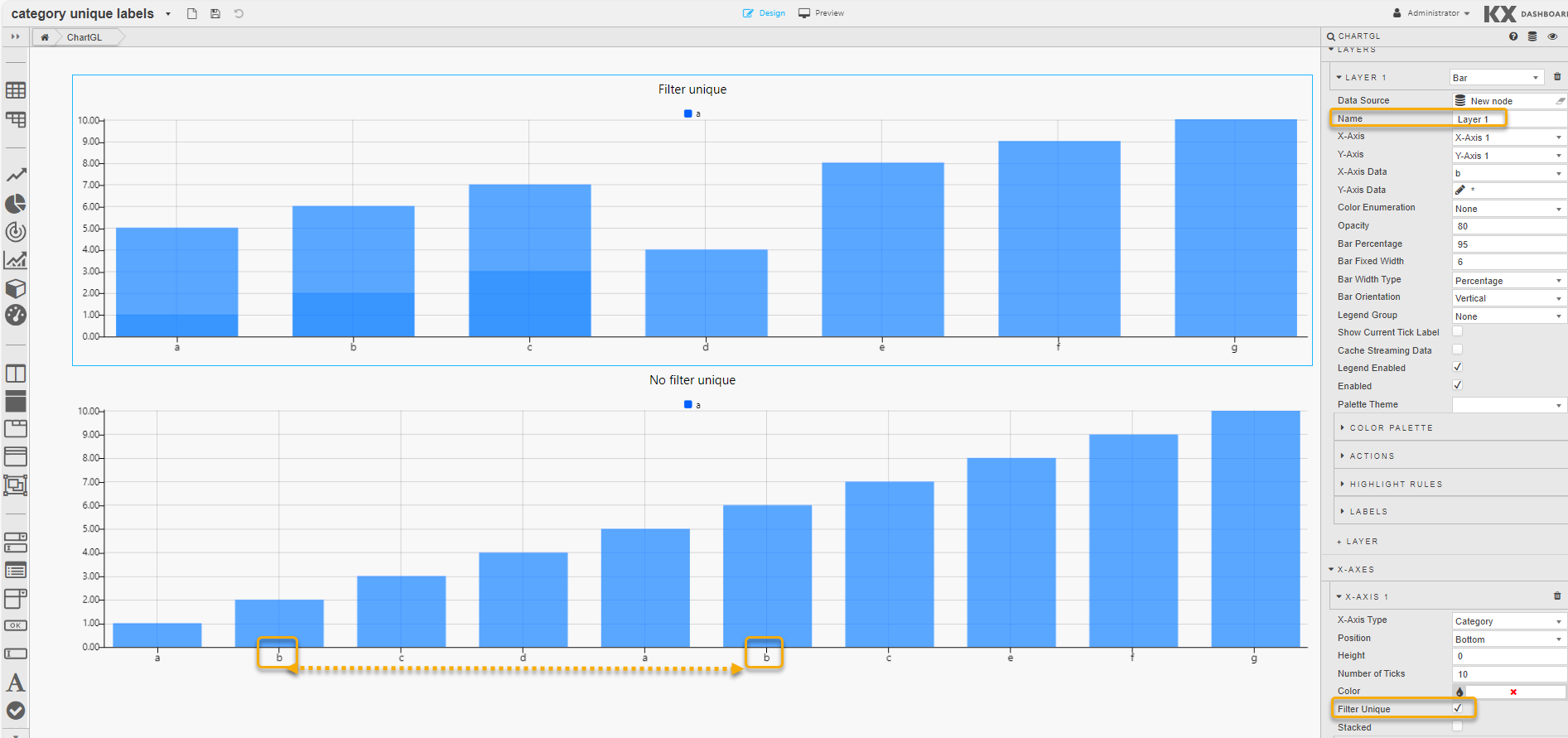

In the following example the ChartGL named Layer1 has Filter Unique ticked and so only shows unique values. The second chart hasn't been set to Filter Unique and so the same value is displayed more than once.

ChartGL Filter Unique

Sort

Displayed when the Axis Type is set to Category. When checked, the axis data is sorted. Strings are sorted alphabetically. This is unchecked by default.

Stacked

When using a Bar Chart, check this to have the bars stacked.

X-Axis Range

The x-axis range properties are described in the following table.

Property

Description

Use Min/Max

Enable the use of Min and Max to build the x-axis. If these are unchecked the Min and Max values, set below, are ignored.

Min

Define the minimum value for the x-axis.

Max

Define the maximum values for the x-axis. Charted data outside of the set Min and Max range is not displayed. If all data falls outside the set range, the chart is blank.

Selection Min

Pull min x-axis values on a zoom select into the assigned view state parameters.

Selection Max

Pull max x-axis values on a zoom select into the assigned view state parameters.

X-Axis Gridlines

The x-axis gridline properties are described in the following table.

Property

Description

Offset GridLines

Enable to align x-axis grid lines to the mid-point between tick values.

GridLines Color

Define the color of x-axis grid lines.

GridLines Opacity

Define the opacity (0 (transparent) to 100 (opaque)) of x-axis grid lines.

X-Axis Format

The x-axis format properties are described in the following table.

Property

Description

Display

Toggles the display of x-axis.

Rotation

Set the clockwise rotation angle (in degrees) of the label. The default value is 0 (no rotation)

Begin at Zero

When enabled, the axis data starts at zero.

Hide Trailing Zeroes

Hides the display of trailing zeroes in x-axis tick values.

Numeric Format

Sets the x-axis format as either Number,Smart Number, Formatted Number. For example 1000, 1K, 1,000.

Date/Time Format

Select the x-axis date/time format from the options in the drop-down list, including; YYYY-MM-DD, YYYY-MMM-DD,YYYY-MM, YYYY-MM-DD HH:mm:ss and more.

Decimal Places

Sets the precision point for x-axis numeric labels.

Font Size

Sets the tick font size in pixels.

Prefix

Adds text to the start of tick label; for example currency or percentage symbol.

Suffix

Adds text to the end tick label; for example currency or percentage symbol.

Distribution

Distribution, Break, and Trigger Break fields are all related and are only displayed when the X-Axis Type is set to Time. They are used when a chart, with time related data, has a break in the data, for example over a weekend when no new data comes in. This setting is used to shorten the length of the display of this empty data so there isn't a big gap shown. The options are Linear or Smart. If linear is chosen it remains as is. If Smart is selected the following two properties are used.

Break

When Distribution is set to Smart, use this to define the duration of time in milliseconds at which to break. That is, the space in ms between the two data points you want to shorten: pointB - pointA.

TriggerBreak

When Distribution is set to Smart, use this to define the new duration, in milliseconds from the start point; newPointB = pointA + Trigger Break (ms).

Show Major Units

Used when the X-Axis Type is set to Time. When enabled, major ticks are generated. Each major tick represents a new parent time (based on the child minor ticks). Minor ticks are shown by default.

Multi Axis Format

If the layer has Multi X-Axis set, customize the Rotation, Font Size, Prefix and Suffix for each axis.

X-Axis Title

The x-axis title properties are described in the following table.

Property

Description

Display

Enables the display of the x-axis label.

Label String

Defines x-axes label text.

Font Size

Sets the label font size in pixels.

Y-Axes

ChartGL supports multiple Y-axes. This is useful when you are dealing with data that varies significantly in value ranges. Multi-axes charts allow you to plot multiple data sets with different units. You can either create separate y-axes for each scale or include multiple series on the same scale. There is no limit on the number of y-axes that can be added.

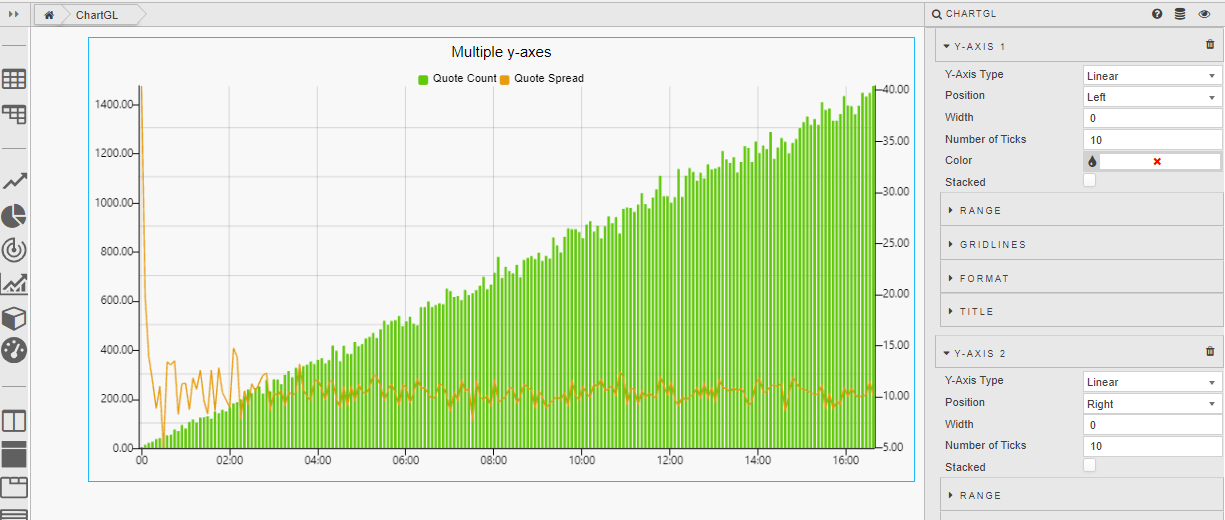

The following screenshot shows a ChartGL with 2 y-axes defined; one on the left and one on the right.

ChartGL Multiple Y-Axes

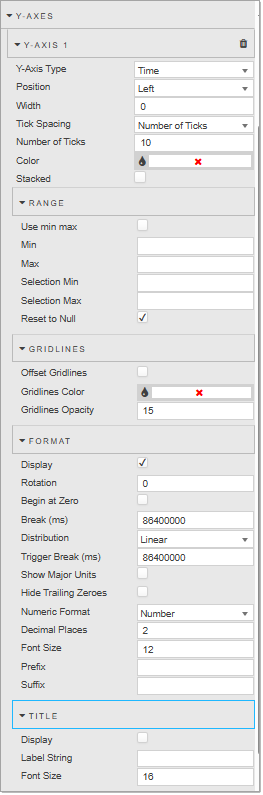

For each y-axis you can define the following properties:

Screenshot

Y-Axis General Properties

Set the general y-axis properties described in the following table.

Property

Description

Y-Axis Type

Choose between Linear, Category, Time, or Logaritmic data.

Position

Set the position of the axis to the Left or Rightof the chart.

Height

Sets the width of the tick area of the y-axis in pixels.

Tick Spacing

When the Y-Axis Type is set to Time, you can specify the type of tick spacing as either: Number of Ticks or Fixed Tick Interval (ms).

The next field displayed depends on the option selected.

Number of Ticks

Set the number of ticks to display in the axis. The default is 10.

Fixed Tick Interval (ms)

Set the interval between ticks in milliseconds. For example an interval of 1800000 results in 30 min tick intervals on the y-axis.

tick interval

Color

Select the color of the axis.

Filter Unique

Displayed when the Axis Type is set to Category. When using non-linear data (string/symbol), some values may be the same. Filter unique is used for grouping same values together. For example a data source might have 'b' and 'b' in it twice. If filter unique is enabled it groups points for 'b' as having the same y-axis value. If disabled it shows values at different points.



In the following example the ChartGL named Layer1 has Filter Unique ticked and so only shows unique values. The second chart hasn't been set to Filter Uniqueand so the same value is displayed more than once.

ChartGL Filter Unique

Sort

Displayed when the Axis Type is set to Category. When enabled, sorts the data. If using strings, sort alphabetically.

Stacked

When using a Bar chart, check this to have the bars stacked.

Y-Axis Range

Configure the following y-axis range properties.

Property

Description

Use Min/Max

Enables the use of Min and Max to build y-axis.

Min

Defines the minimum value for the y-axis.

Max

Defines the maximum values for the y-axis. Charted data outside of the set Min and Max range is not displayed. If all data falls outside the set range, the chart is blank.

Selection Min

Pulls min y-axis values on a zoom select into assigned view state parameters.

Selection Max

Pulls max y-axis values on a zoom select into assigned view state parameters.

Y-Axis Gridlines

Configure the following y-axis gridlines properties.

Property

Description

Offset GridLines

Enables the alignment of y-axis grid lines to the mid-point between tick values.

GridLines Color

Defines the color of y-axis grid lines.

GridLines Opacity

Defines the opacity for y-axis grid lines. The range is between 0 (transparent) and 100 (opaque).

Y-Axis Format

Configure the following y-axis format properties.

Property

Description

Display

Toggles the display of y-axis.

Rotation

Set the clockwise rotation angle (in degrees) of the label. The default value is 0 (no rotation)

Begin at Zero

When enabled, the axis data starts at zero.

Hide Trailing Zeroes

Hides the display of trailing zeroes in y-axis tick values.

Numeric Format

Sets the y-axis format as either Number, Smart Number, or Formatted Number. For example 1000, 1K, 1,000.

Decimal Places

Sets the precision point for y-axis numeric labels.

Font Size

Sets the tick font size in pixels.

Prefix

Adds text to the start of tick label; for example currency or percentage symbol.

Suffix

Adds text to the end tick label; for example currency or percentage symbol.

Distribution

Distribution, Break, and Trigger Break are all related and are only displayed when the Y-Axis Type is set to Time. They are used when a chart, with time related data, has a break in the data, for example over a weekend when no new data comes in. This setting is used to shorten the length of the display of this empty data so there isn't a big gap shown.



The options are:

Linear- If linear is chosen it remains as is.

Smart - If Smart is selected the following two properties are used.

Break

This defines the duration of time in milliseconds at which to break at. That is, the space in ms between the two data points you want to shorten: pointB - pointA.

TriggerBreak

This defines the new duration, in milliseconds from the start point; newPointB = pointA + Trigger Break (ms).

Show Major Units

Used when the Y-Axis Type is set to Time. When enabled, major ticks are generated. Each major tick represents a new parent time (based on the child minor ticks). Minor ticks are shown by default.

Y-Axis Title

The y-axis title properties are described in the following table.

Property

Description

Display

Check to enable the display of y-axis label.

Label String

Defines the y-axis label text.

Font Size

Sets the label font size in pixels.

Overlay

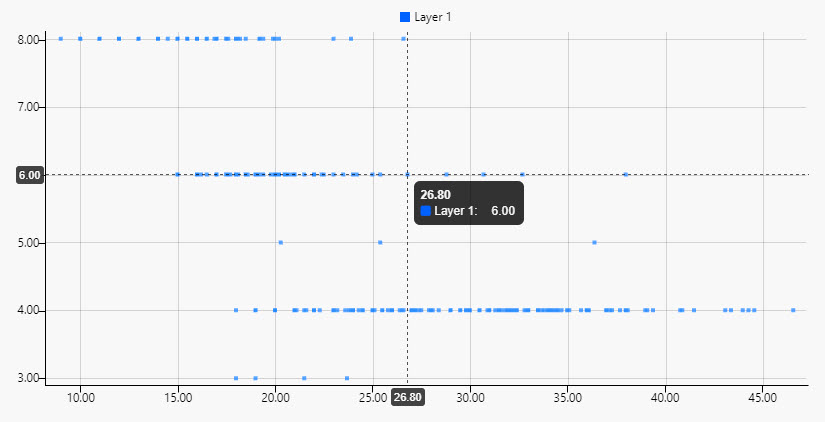

The Overlay properties define elements that are drawn on top of the chart on hover. This includes tooltips, crosshairs, and coordinates. In the following example, the mouse is hovering on the chart and shows all 3 of these elements.

  • The tooltip contains the x and y data from the hovered point.

  • The crosshair shows a horizontal and vertical dashed line on the current data position.

  • The coordinates are on the x and y axes, showing the respective current hovered value at its position on the axis.

Screenshot

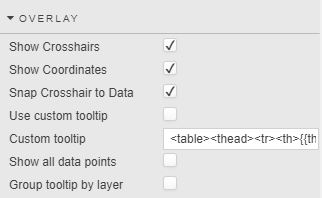

The Overlay properties, shown in the following screenshot are defined in the table below.

Screenshot

Property

Description

Show Crosshairs

When this is checked crosshairs are shown on the chart.

Show Coordinates

When this is checked coordinates are shown on chart.

Snap Crosshair to Data

When this is checked crosshairs and coordinates move to the nearest valid point on hover.

Use custom tooltip

When this is checked the Custom tooltip is enabled.

Custom tooltip

Defines a custom tooltip. See Custom tooltips for details.

Show all layers

When checked, shows all layers in the tooltip. Otherwise, only shows the hovered layer.

Show all data points

Displays all y-axis values for selected point on the x-axis.

Group tooltip by layer

When Show all data points is enabled this displays data points in a distinct column for each Layer instead of a continuous list.

Legend

You can add legends to represent different data series or categories within the chart. These can be grouped into legend groups which are collections of legend entries that share common properties or characteristics.

The Legend properties are described in the following table.

Screenshot

Property

Description

Position

The chart legend position can be defined as Top, Bottom, Left, or Right. When legend grouping is used the position can be either Left, or Right.The legend is auto generated. If you are using wildcard, the legend uses the wildcard columns names. If you are using single y-axis value, the legend is defined as the value set in Name property for the layer.

Legend Groups

These properties are used to define legend groups.

Property

Description

Name

Defines a name for the Legend Group. This value is added to the list displayed under Legend Group in the general layer properties.

Expanded

Expands/collapses the Legend Group.

Icon

Defines the icon used for the Legend Group.

Annotations

When enabled, Annotations allow users to define shapes or markings that provide additional information about specific data points or trends to help clarify or emphasize their significance. The annotation properties are defined in the following table.

Screenshot

Property

Description

Show Annotate Controls

Check this to display the Annotate controls on the component Screenshot. These controls consist of:

Screenshot Turn the ability to create annotations on/off

Screenshot Edit annotations

Screenshot Undo annotations

Screenshot Redo annotations

Annotations

This field stores any changes to the default annotation type and color, and information describing the annotations. When set to a view state parameter of type string, this information persists when saved by the user.

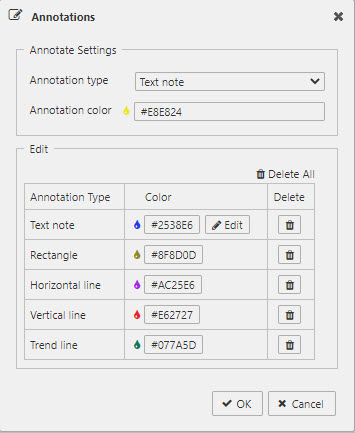

Annotations dialog

Click Edit Screenshot to bring up the annotations dialog.

Screenshot

The Annotation Settings section is where the user can view and change the default annotation type and color.

Property

Description

Annotation type

Sets the type of annotation.

Annotation color

Sets the color of the annotation to be created. Click on the field to bring up the color picker. The Edit section contains a table of existing annotations each with a color button to change its color and a delete button to delete the specified annotation. The text note has an additional Edit button which brings up the text note dialog to update the text and styling of the text note. Changes made here appear on the chart in real-time.

Delete All

Deletes all annotations.

OK

Commits all changes in the dialog.

Cancel

Reverts all annotations to their previous state.

Annotation Types

The following table lists the different annotation types, available in the annotations dialog and how the Annotate toggle button appears for each type.

Annotation type

Button

Description

Text note

Screenshot

This is the default type. A text note is text that can be added directly to the chart. Upon creation of the text note, the text note dialog is launched so users can edit the text and styling of the text note. To edit, double-click on the text note to bring up the text note dialog. The text note resizes automatically based on the text and styling. The font size of the text note does not scale when the chart is zoomed in or out. To move the text note, hover over it until the mouse pointer changes to the multidirectional cursor, then click and drag it to the new position.

Rectangle

Screenshot

A rectangle is a 4-sided polygon having all right angles. To move the rectangle, hover over the rectangle until the mouse pointer changes to the multidirectional cursor, then click and drag the rectangle to the new position. To resize the rectangle, hover over any endpoint until the color of the square anchor changes to red Screenshot and then click and drag the endpoint to its new position.

Horizontal line

Screenshot

A horizontal line is a line that extends the width of the chart. Horizontal lines can only be moved up or down. To move the horizontal line, hover over the line until the mouse pointer changes to a bidirectional cursor, then click and drag the line to its new position.

Vertical line

Screenshot

A vertical line is a line extends the height of the chart. Vertical lines can only be moved left or right. To move the vertical line, hover over the line until the mouse pointer changes to a bidirectional cursor, then click and drag the line to its new position.

Trend line

Screenshot

A trend line is a straight line connected by two points. To move the trend line, hover over the trend line until the mouse pointer changes to the multidirectional cursor, then click and drag the line to the new position. To resize the trend line, hover over either end of the line until the color of the square anchor changes to red Screenshot and then click and drag that endpoint to its new position.

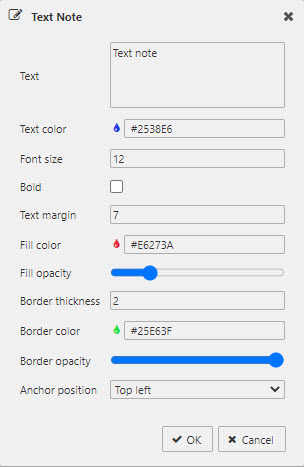

Text Note dialog

When the Annotation Type is set to Text Note the Text Note dialog is used to update the text and styling of the text note. Changes made to the annotation properties appears on the chart in real-time.

Screenshot

Property

Description

Text

The text to be displayed in the note.

Text color

A color picker used to set the color for the text.

Font size

The font size of the text.

Bold

When checked, the text is bold.

Text margin

Sets the space between the text note border and the text.

Fill color

Sets the fill color of the text note area. Click on the field to bring up the color picker.

Fill opacity

Sets the fill opacity of the text note area. Slide to the left for more transparency and to the right for more opacity.

Border thickness

Sets the thickness of the text note border.

Border color

Sets the border color of the text note. Click on the field to bring up the color picker.

Border opacity

Sets the border opacity of the text note. Slide to the left for more transparency and to the right for more opacity.

Anchor position

Sets the anchor position which identifies the corner of the text note that remains fixed on the chart. This property is particularly useful when you want the text note to always be positioned above or below an element when zooming in or out. Select Top Left when you want the text note to be precisely positioned underneath an element (for example a line, bar, or point). Select Bottom Left when you want the text note to be precisely positioned above an element.

Creating annotations

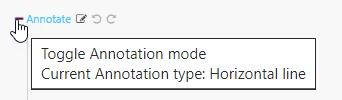

Clicking Annotate on a chart toggles the Annotation mode. When Annotation mode is on, the Overlay and Zoom features are disabled, and an icon appears to the left of the control to indicate the current annotation type and color.

Annotation Mode

To create an annotation, click and hold the left mouse button on a desired area in the chart, drag the mouse to an endpoint for the annotation, and release the button. The following example shows a text note being added as an annotation.

Annotation Example

Undo and Redo

The Undo and Redo buttons allow the user to navigate through the chronology of user actions affecting all annotations.

Clicking Undo Screenshot reverses a user action affecting annotations. This includes changes made on the chart directly, or by way of the annotation dialogs. Continuing to press the Undo button reverses these user actions up to the beginning of their dashboard session.

Clicking Redo Screenshot restores annotations affected by a user clicking the Undo button. If the user performs an action affecting annotations after an Undo button press, the Redo button is disabled.

Style, Margins, Format

See Style for full details of common settings.

File export

See Export for full details of common settings.

Further Reading
