Map (External APIs)



This page describes how to set up and configure the Map (External APIs) component to displays geographical data. Unlike other components, different data sources can be assigned and overlaid by map type.

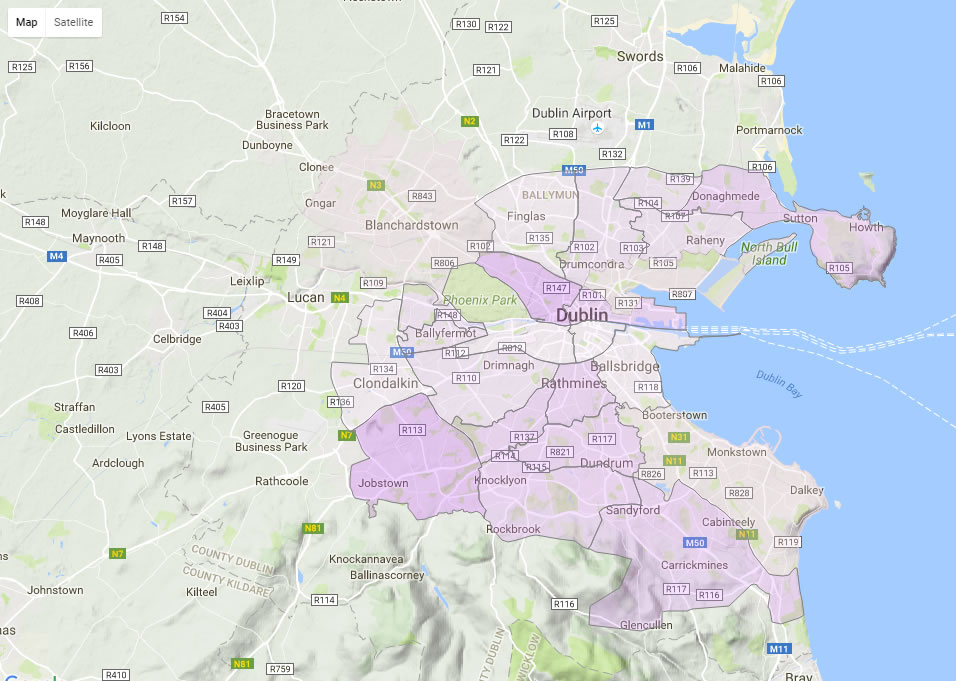

The following example shows a map with a statistical overlay.

Screenshot

Note

Online and offline Maps

KX Dashboards includes two different Map components, both displaying geographical data, but used for different purposes.

  • Use an offline map by selecting the Map component, which doesn't require an internet connection.

  • Alternatively, use the Map (External API) component described on this page, which requires a stable internet connection and access to external APIs.

The properties you can set for the two maps are different so it's recommended you choose the component to use based on your needs.

Set up a Map

To set up a Map component, click-and-drag the component into the workspace and configure the following:

  1. Select the map type to use.

  2. Define the bounds for the viewable area of the map using a view state parameter; centered by CenterX and CenterY, at a defined zoom Scale on load.

  3. Select between points, circles, lines, heatmap, or overlay.

  4. Irrespective of the map selection, ensure the data source has a longitude and latitude reference for mapped elements.

Refer to Map properties described in the next section for details on additional properties.

Map properties

The following sections provides details on how to configure the properties of the Map component.

Basics

Open the Basics properties on the right and configure the properties described in the following table.

Screenshot

Field

Description

Name

A name for the component provided by the user.

Focus

A View State Parameter used for linking components

Theme

Light or Dark

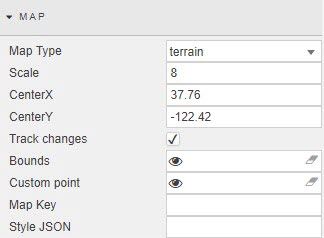

Map

Configure the properties described in the following table.

Screenshot

Field

Description

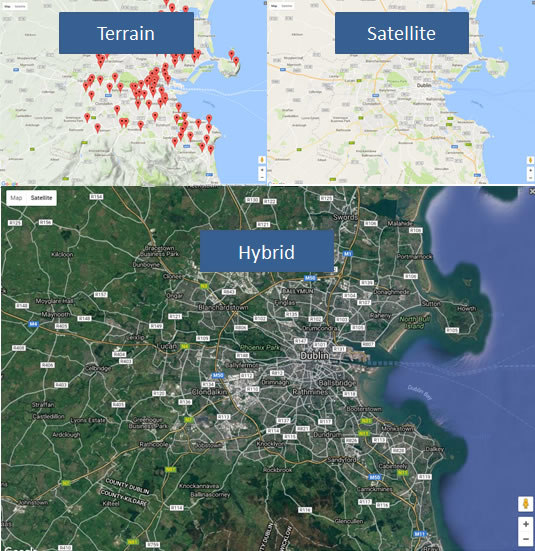

Map Type

Select from terrain, satellite, roadmap or hybrid.

Screenshot

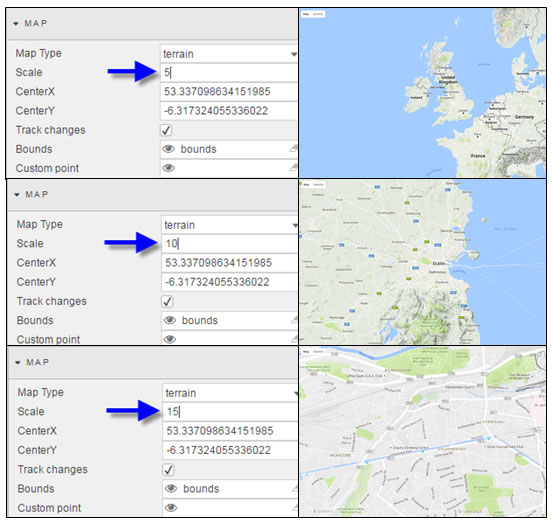

Scale

Define the zoom level.

Screenshot

Center X/Y

Set the map center on dashboard load; define longitude and latitude values.

Track Changes

When checked, this updates co-ordinates after user interaction.

Note

Saved state

The Map opens on the updated Center X/Y co-ordinates on the next dashboard load.

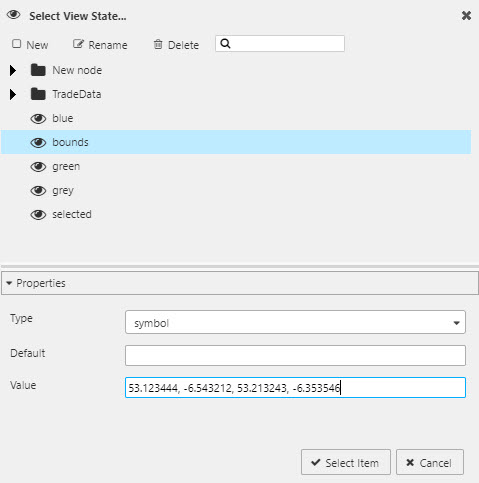

Bounds

A View State Parameter which stores the co-ordinates for the viewable area of the map

Screenshot

Custom point

When a View State Parameter is set, right-clicking on the map allows the user to create a custom point: its co-ordinates are held in the View State Parameter.

Warning

Without a View State Parameter set, right-clicking on the map will not add a custom point.

Screenshot

Map Key

Allows the user to load the map with their Google map ID.

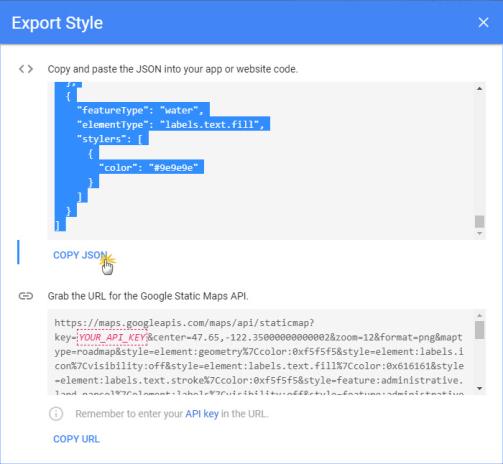

Style JSON

Apply JSON style from Mapstyle.withgoogle.com. Cut-and-paste the JSON into the Style property. A view state parameter of type String can also be used to store the JSON.

Screenshot

Points

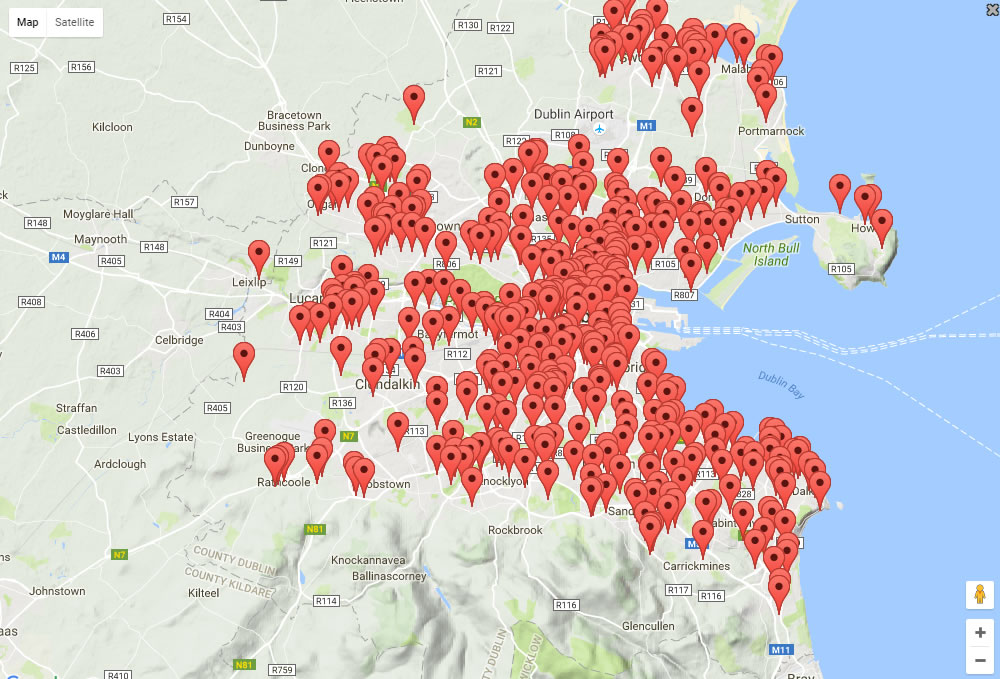

These properties allow you to add data points to the Map, as shown here.

Screenshot

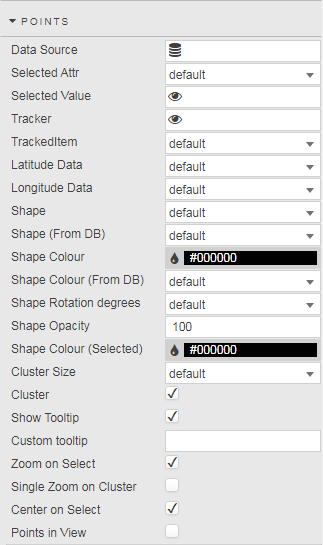

Configure the properties described in the following table.

Screenshot

Field

Description

Data Source

A data source that includes geographic coordinates

Selected Attribute

Defined from data source. Refer to Selected values for further details.

Selected Value

Tracker

A View State Parameter for TrackedItem

TrackedItem

A Data Source column for the Tracker View State Parameter, set when the user selects a point on the map

Tip

More mapped items

Additional mapped items can be tracked using Selected Point Viewstate Routing. Refer to Selected values for details.

Latitude / Longitude Data

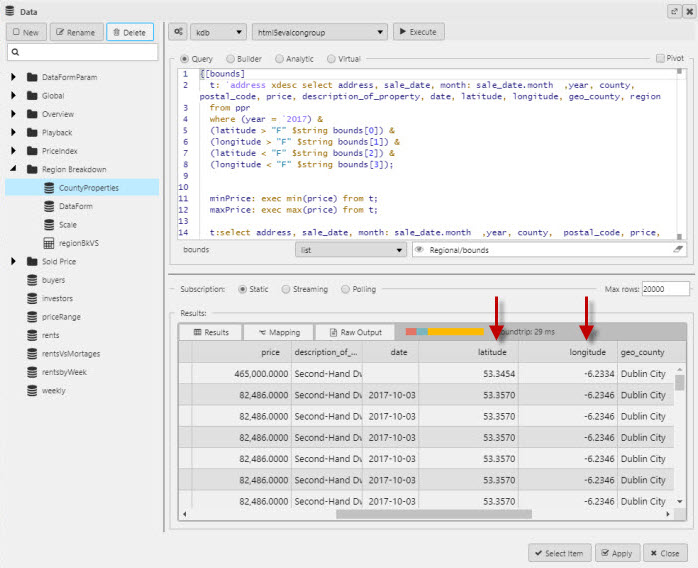

Data Source columns for latitude and longitude. The following example shows Latitude and longitude columns in the Data Source .

Screenshot

Shape

The shape of the map point graphic: dot, pointer, etc.

Screenshot

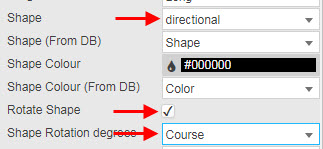

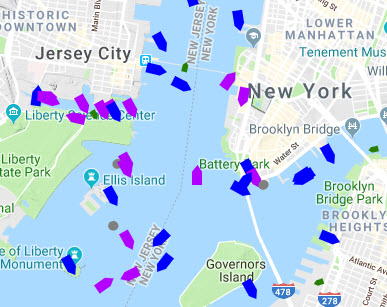

directional uses pointer icons, the direction of the point is determined by Shape Rotation Degrees (a Data Source column) when enabled by Rotate Shape.

Screenshot

Rotate Shape

Shape Rotation Degrees

Shape (From DB)

A Data Source column: the shape of the map point graphic (alternative to Shape).

Shape color

Color of the map point graphic.

Shape color (From DB)

A Data Source column: color of the map point graphic (alternative to Shape Color).

Shape Opacity

Opacity of the map point graphic.

Cluster Size

Size of clusters into which points are aggregated; select from values in increments of ten to 70.

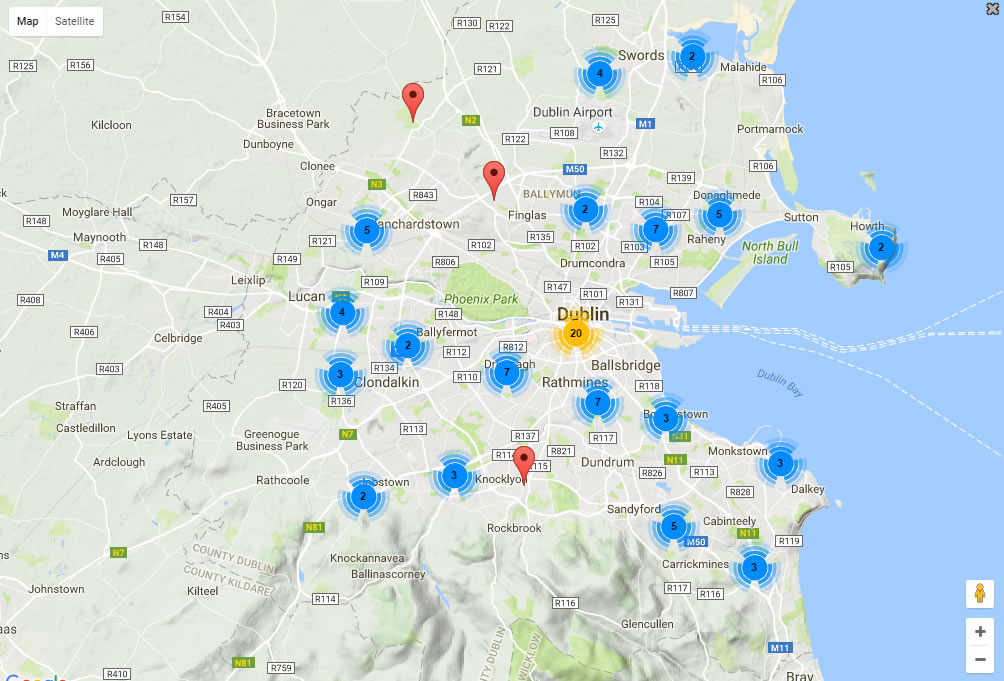

This example shows Map clusters.

Screenshot

Cluster

When checked, grouped individual points are replaced with a numeric cluster icon. Points outside cluster remain displayed as individual points.

Show Tooltip

When checked, displays a tooltip on Point rollover.

Custom Tooltip

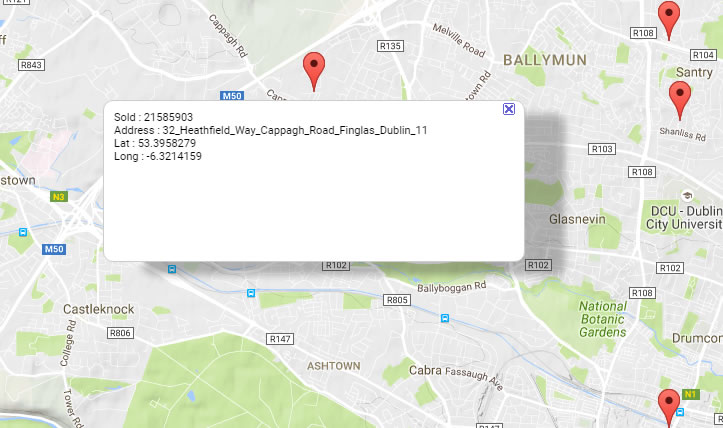

Enter a tooltip to be displayed on the Map. An example is shown below. Refer to Custom tooltips for further details.

Screenshot

Zoom on Select

When checked, the map zooms when the user selects a point.

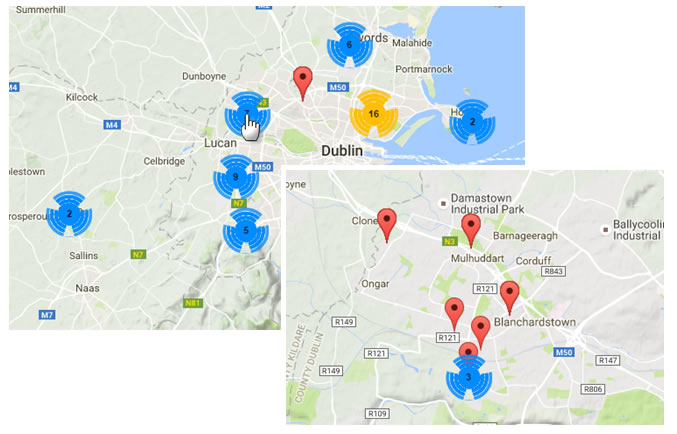

Single Zoom on Cluster

When checked, the map zooms when the user clicks on a cluster.

Screenshot

Open Dashboard on Select

A dashboard: when user selects a map point, the dashboard loads.

Points in View

When checked, the map auto-zooms to show all available data points.

Screenshot

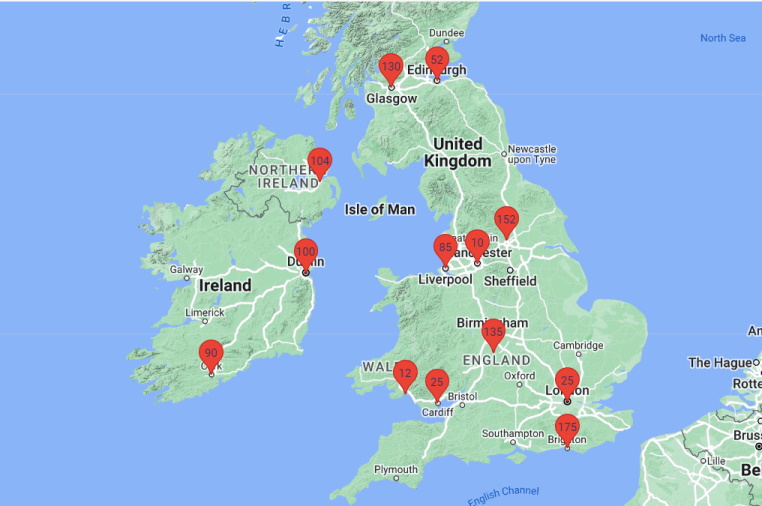

Label

Allows the user add a label to a Point.

Screenshot

Label Color

Allows the user to set the Point label color if label is defined.

Label Size

Allows the user to set the Point label size if label is defined.

Action

Actions

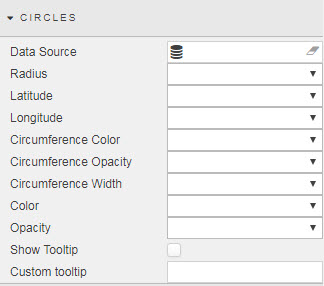

Circles

Configure the properties described in the following table.

Screenshot

Field

Description

Data Source

A data source that includes geographic coordinates.

Radius

Select the data source column with radius of circle.

Latitude / Longitude

Select the data source columns with geographic co-ordinates.

Circumference Color, Opacity and Width

Select the data dource columns with details on color (hex reference), opacity and width (pixels).

Color

Circle color.

Opacity

Opacity of circle.

Show Tooltip

Enable Tooltip.

Custom Tooltip

Create a custom tooltip template. Refer to Custom Tooltip for details.

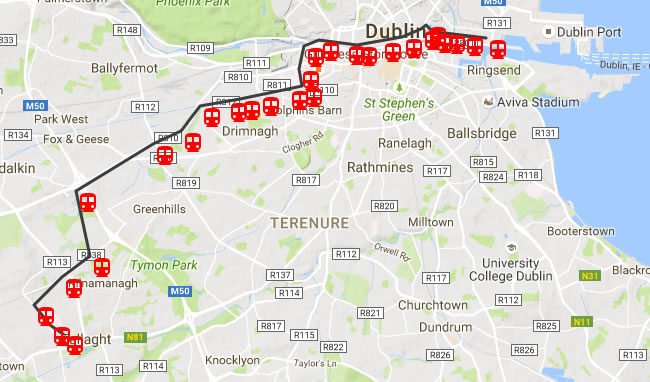

Lines

You can configure properties for adding lines to maps.

Screenshot

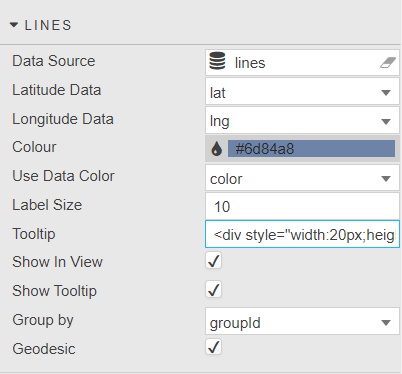

Configure the properties described in the following table.

Screenshot

Field

Description

Data Source

A data source that includes geographic coordinates.

Latitude / Longitude Data

Select the data source columns with geographic co-ordinates.

Color

Color of the line.

Use Data Color

A Data Source column: color of the map line (alternative to Color).

Label Size

Size of the label.

Show In View

When checked, map auto-zooms to show all available line points.

Group by

Groups line data by a specific data source column and draws a separate line for each group.

Show Tooltip

When checked, displays the tooltip.

Geodesic

When enabled, draws a (curved) line connecting the shortest possible distance between two points on a sphere.

Lines query example

The following shows an example data table.

q

Copy
Stop         long      lat      Line
------------------------------------
Tallaght     -6.374589 53.28749 Red
Hospital     -6.37885  53.28937 Red
Cookstown    -6.384397 53.29351 Red
Belgard      -6.374886 53.29929 Red
Kingswood    -6.36525  53.30369 Red
Red_Cow      -6.369872 53.31683 Red
Kylemore     -6.343444 53.32666 Red
Bluebell     -6.333792 53.3293  Red
Blackhorse   -6.327394 53.33426 Red
Drimnagh     -6.318161 53.33536 Red
Goldenbridge -6.313569 53.33589 Red
Suir_Road    -6.307211 53.33662 Red
Rialto       -6.297242 53.33791 Red
Fatima       -6.292547 53.33844 Red
Jamess       -6.293361 53.34194 Red
Heuston      -6.291808 53.34665 Red
Museum       -6.286714 53.34787 Red
Smithfield   -6.277728 53.34713 Red
Four_Courts  -6.273436 53.34686 Red
Jervis       -6.265333 53.34769 Red
..

Click a link below to download the above table

Heat Map

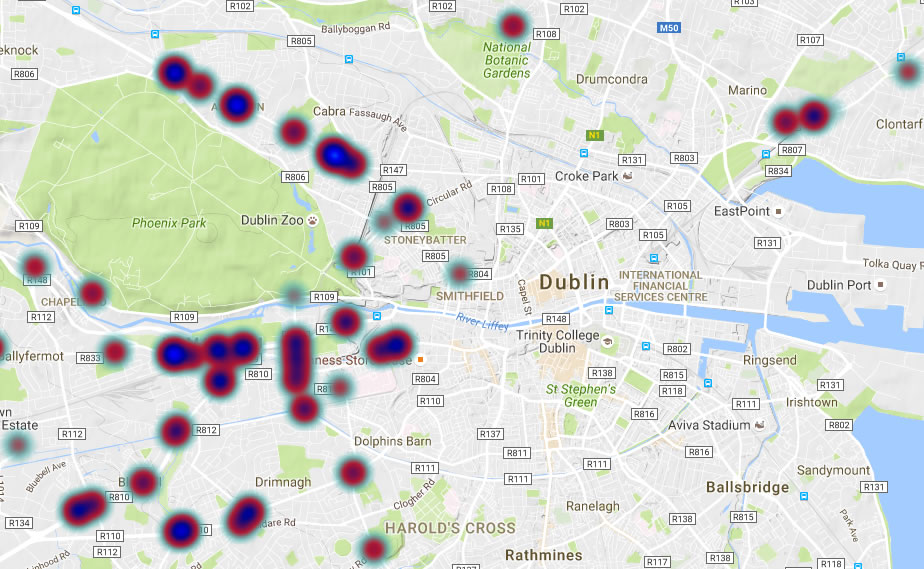

The following example shows a traffic heat map.

Screenshot

Tip

Dynamic overlays

Can be used for dynamic overlays. For example when linked with a Playback component.

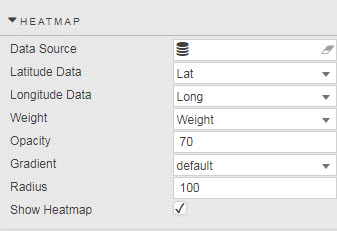

Configure the properties described in the following table.

Screenshot

Field

Description

Data Source

A data source that includes geographic coordinates.

Latitude / Longitude Data

The data source columns with geographic co-ordinates.

Weight

A data source column with the heat-map weights.

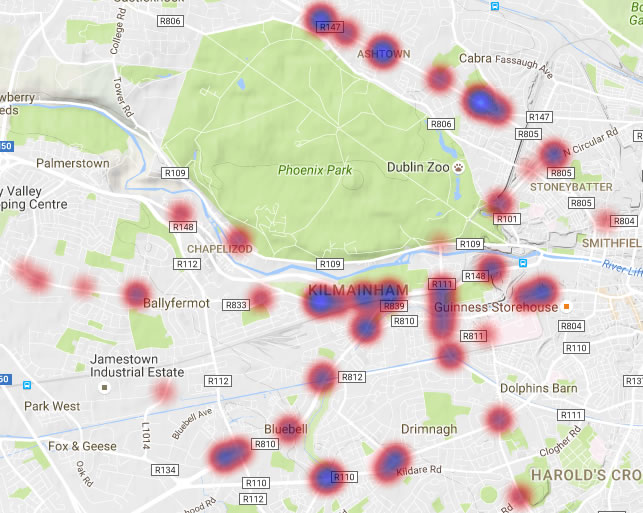

Opacity

The opacity of the overlay.

Screenshot

Gradient

The color gradient: red-bllue, blue-red and so on.

Radius

The radius for heat-map spread.

Show Heatmap

When checked, the overlay is visible.

KML Layers

KML Layers specify a set of features (such as place marks, images, polygons, 3D models, textual descriptions, etc.)

Field

Description

URL

Enter the URL of the KML or KMZ file.

Enabled

When checked, the layer is visible.

Overlay

Overlays allow you to additional layers of information over a base map.

Screenshot

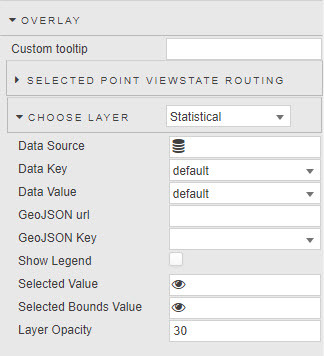

Configure the properties described in the following table.

Screenshot

Field

Description

Custom Tooltip

Refer to Custom tooltips for details.

Selected Point Viewstate Routing

Refer to Selected values for details.

Choose Layer

Select from dropdown; single option Statistical

Data Source

A data source that includes geographic coordinates and a column containing the color reference for overlay shading.

Data Key

Column containing an index reference for the overlay data.

Data Value

Overlay day mapped to Data Key.

GeoJSON

Custom GEOJson url overlay and GeoJSON Key reference key.

Show Legend

Display color code legend of overlay.

Selected Value

Map selected overlay key to a View State Parameter.

Selected Bounds Value

Map selected bounds coordinates of the overlay to a View State Parameter.

Layer Opacity

Select overlay transparency; 0 for fully transparent, 100 for opaque.

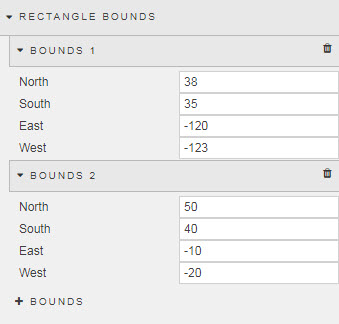

Rectangle Bounds

Configure the properties described in the following table.

Screenshot

A user-defined zone (defined within bounds) by longitude and latitude co-ordinates. More than one user-set boundary can be set.

Field

Description

North

These properties set the longitudinal and latitudinal co-ordinates for user-defined boundary.

South

East

West

Style, Margins, Format

Refer to Style for common style settings.
