Editable List



This page describes how to set up and configure the Editable List component .

This component displays an editable list of string key/value pairs in a table format or dropdown menu. Pair it with other components such as Data Filter or Visual Query Builder to easily manipulate those components' JSON string states.

Screenshot

Set up an Editable List

To set up an Editable List component, click-and-drag the component into the workspace and configure the following:

  1. Define the data source used to store the key/value pairs in the editable list. An update query must be used on a keyed table.

  2. Set the Selected Key to a view state to map the currently selected key from the editable list.

  3. Set the Selected Value to a string view state to map the currently selected string value from the editable list.

Refer to Editable List properties described in the next section for details on additional properties.

Editable List properties

The following sections provides details on how to configure the properties of the Editable List component.

Basics

Open the Basics properties on the right and configure the properties described in the following table.

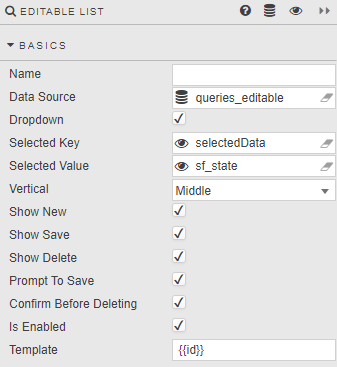

Screenshot

Field

Description

Name

A name for the component provided by the user.

Data Source

This must be set to an update query on a keyed table, used for storing the editable list of key/value pairs.

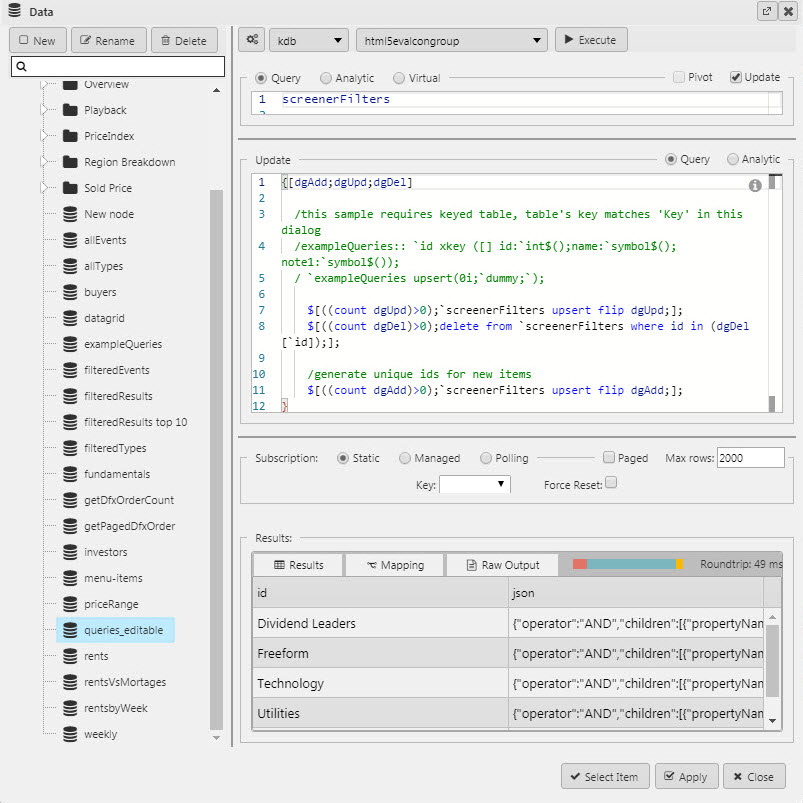

Screenshot

Update query:

q

Copy
{[dgAdd;dgUpd;dgDel]

/this sample requires keyed table:
/ table's key matches 'Key' in this dialog
/exampleQueries:: `id xkey ([] id:`int$();name:`symbol$();note1:`symbol$());
/ `exampleQueries upsert(0i;`dummy;`);

    if[count[dgUpd]>0;`screenerFilters upsert flip dgUpd];
    if[count[dgDel]>0;
        delete from `screenerFilters where id in (dgDel[`id])];

    /generate unique ids for new items
    if[count[dgAdd]>0;`screenerFilters upsert flip dgAdd];
}

Refer to Data sources for further details.

Dropdown

Displays JSON options in a dropdown.

Selected Key

A view state parameter assigned to the dropdown, determines which JSON list is selected.

Selected Value

A second view state parameter, of type string, which stores the Selected Key JSON.

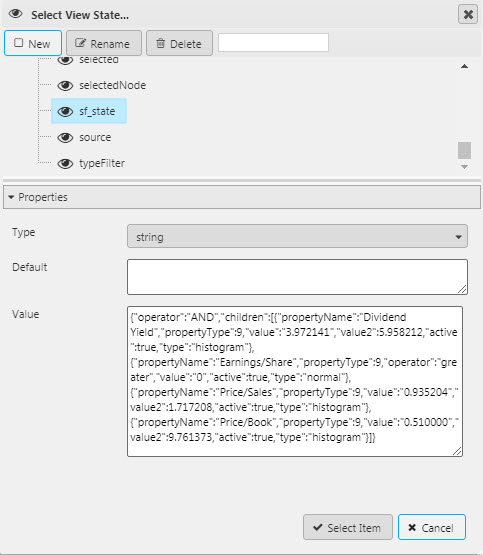

Screenshot

Vertical

Positions the Editable list within the component.

Show New

When enabled, the user can create new key/value pairs in the editable list. The user also has the option to validate new keys by defining additional properties in the Validation section of the properties panel.

Show Save

User can save new key/value pairs that have been added to the editable list.

Show Delete

User can remove unwanted key/value pairs from the editable list.

Prompt to Save

When enabled, any changes made by a user will prompt a save request.

Confirm Before Deleting

When enabled, any deleted list will require confirmation from the user.

Is Enabled

Control whether a list and associated buttons are active or inactive; can be associated with a boolean Type View State Parameter

Template

For building a custom layout of an Editable list.

Screenshot

Validation

Users can optionally validate new entries to be added to the editable list. Validation requires the Show New property in Basics to be enabled.

Screenshot

Field

Description

New Key

A view state parameter which holds the new key entered by the user.

Validation Analytic

This property identifies a query, analytic or virtual data source that will validate the new key provided by the user. The analytic should accept the New Key view state parameter as input and return an empty string or a string containing an error message for the user. Returning an empty string indicates that the New Key is valid and can be added to the editable list. If the new key is not accepted an error message is presented to the user in an error dialog, as shown here.

Screenshot

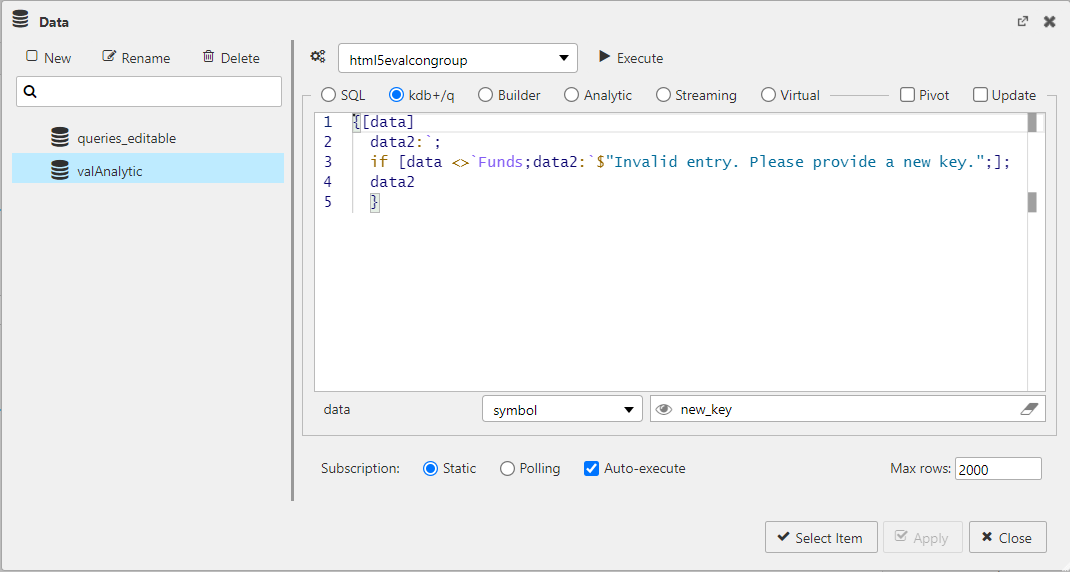

The following shows a sample query.Screenshot

q

Copy
{[data]
  data2:`;
  if [data <>`Funds;data2:`$"Invalid entry. Please provide a new key.";];
  data2
 }

Tooltip

You can optionally add tooltip text to the New, Save and Delete buttons.

Format, Margins

Refer to Style for common style settings.
