Analyst Visual

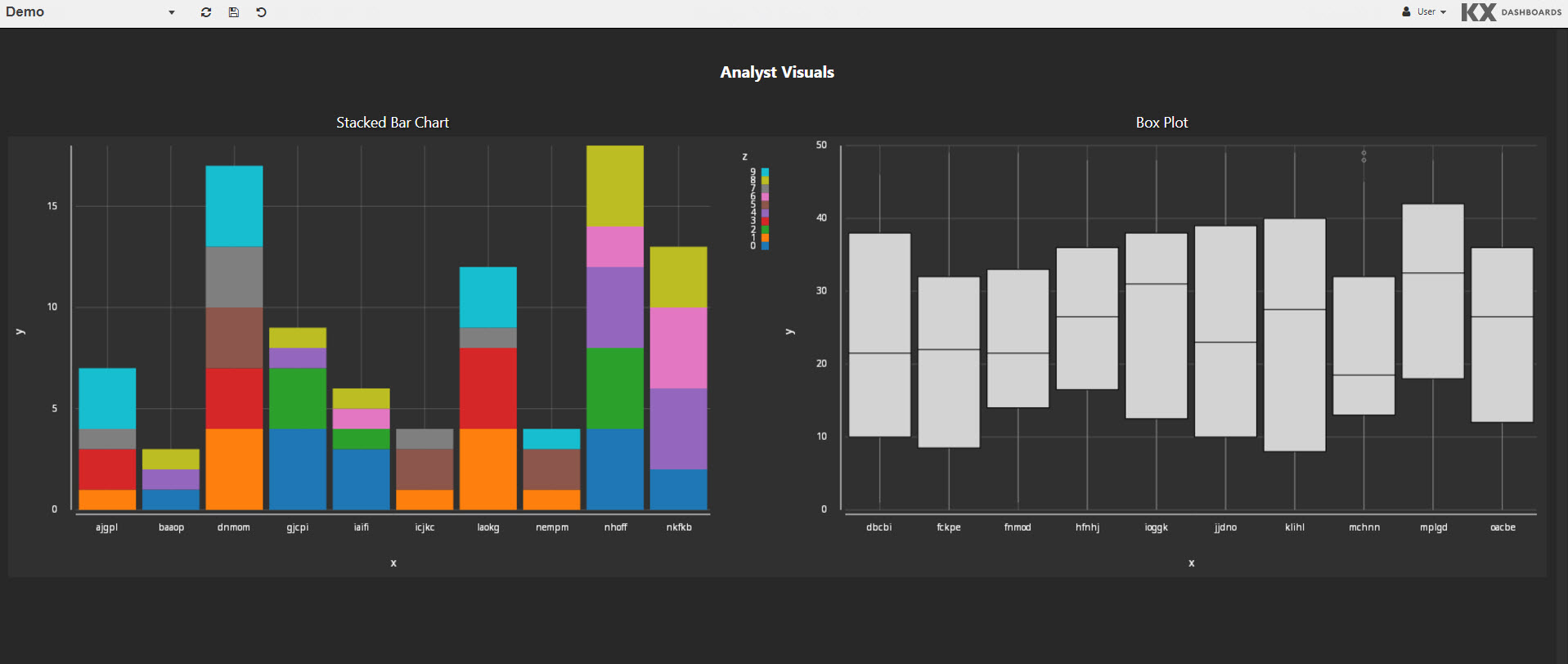

This page shows you how to set up and customize the Analyst Visual component in KX Dashboards to embed Grammar-of-Graphics visualizations from KX Analyst into your dashboards.

Screenshot

Set up Analyst Visual

To set up an Analyst Visual, click-and-drag the component into the workspace and configure the Analyst Visualproperties described in the next section.

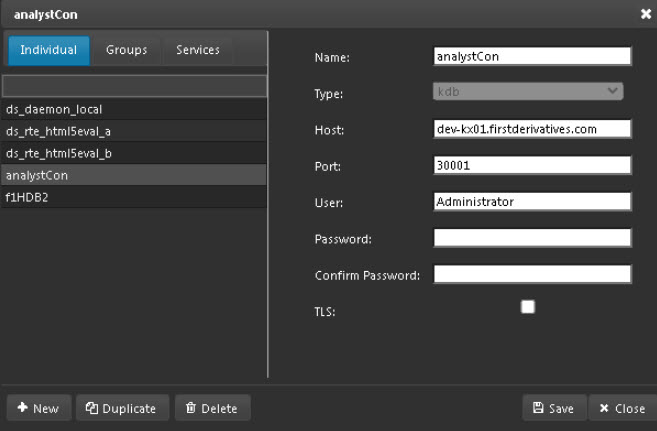

  1. Create a connection to Analyst in KX Dashboards.

    2. Screenshot

    Screenshot

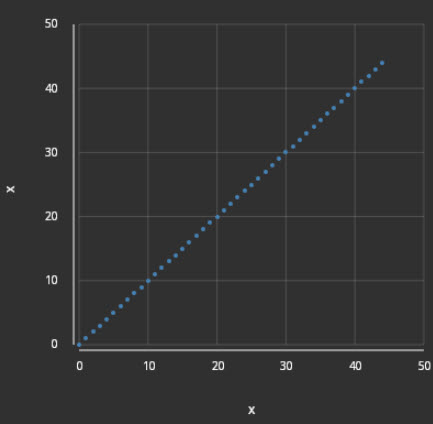

  2. Create a new data source in KX Dashboards using the Analyst connection. The following screenshot shows a simple Grammar of Graphics example.

    Screenshot

    q

    Copy
    .gg.dash.go
    .qp.theme[.gg.dash.dark]
    .qp.point[([]x:til 45); `x; `x; ::]

    Screenshot

  3. Configure additional properties described in the following section.

Analyst Visual properties

The following sections provides details on how to configure the properties of the Analyst Visual component.

Basics

Open the Basics properties on the right and configure the properties described in the following table.

Screenshot

Field

Description

Name

Enter a name for the component.

Data Source

Grammar-of-Graphics written in the editor connecting to KX Analyst. See setup for an example. Data source

Selected Value

Refer to View State Parameters for details.

Style, Format, Margins

Refer to Style for common style settings.
