Ingest Protocol Buffers Data

This page provides a walkthrough to guide you through the steps to create a pipeline to ingest Protocol buffers data into kdb Insights Enterprise.

Protocol buffers are Google's language-neutral, platform-neutral, extensible mechanism for serializing structured data. We have provided a crime data set for use in this walkthrough, which is a record of events from March 31^st 2022 in NYC, organized by precinct, including location coordinates of the call, dispatch times, and a description of the crime.

Before you build your pipeline you must ensure the insights-demo database is created, as described in this walkthrough.

Create a pipeline

1. On the Overview page, choose Create new under Pipelines:

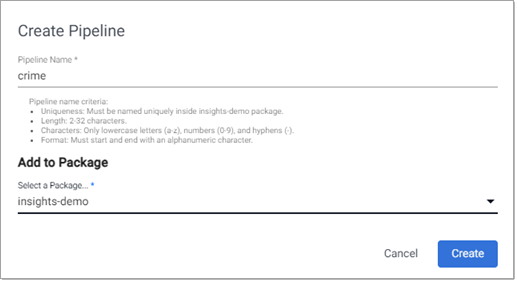

2. In the Create Pipeline dialog set the following values:



   Setting	Value
   Pipeline Name	crime
   Select a Package	insights-demo

   If insights-demo is not available for selection (if it has already been deployed), open the packages index and select Teardown from the actions menu beside insights-demo.



   If insight-demo does not appear on packages list, create it as described in this walkthrough.





3. Next, add the nodes to the pipeline, as described in the following sections; Expression node, Decoder node, Transform node, and Writer node

Add an Expression node

This node pulls in the crime data.

1. Click-and-drag an Expression node from the Readers, into the workspace.

2. Click on the Expression and add the following q code to the Configure Expression Node panel. This code pulls in the crime data set.

   q

   Copy

   URL:"https://code.kx.com/kxiwalkthrough/data/crime.msg";
   resp:.kurl.sync[(URL;`GET;(::))];
   if[200 <> first resp; ' last resp];
   "\n" vs last resp


3. Click Apply to apply these changes to the node.

Add a Decoder node

This node reads in this data in a format compatible with kdb+.

1. Click-and-drag the Protocol Buffers decoder node from the list of Decoders into the central workspace, and connect it to the Expression node.

2. Select the Decoder node.

3. Add the following settings to the right-hand property panel:



   Setting	Value
   Message Name	crime
   Message Definition	copy the JSON code block below
   As List	disabled

   JSON

   Copy

   syntax = "proto3";

   message crime {
       uint64 event_id = 1;
       string incident_time = 2;
       uint64 nypd_precinct = 3;
       string borough = 4;
       string patrol_borough = 5;
       uint64 call_x_geo = 6;
       uint64 call_y_geo = 7;
       string radio_code = 8;
       string description = 9;
       string crime_in_progress = 10;
       string call_timestamp = 11;
       string dispatch_timestamp = 12;
       string arrival_timestamp = 13;
       string closing_timestamp = 14;
       double latitude = 15;
       double longitude = 16;
   }

4. Click Apply to apply these values to the node.

Add a Transform node

This node transforms the crime data fields to kdb+ types compatible with the insights-demo kdb+ database.

1. Click-and-drag the Apply Schema node from the list of Transform nodes and connect it to the Decoder node. insights-demo has a predefined schema for crime data which transforms the data to a kdb+/q format.

2. Select the Apply Schema node.

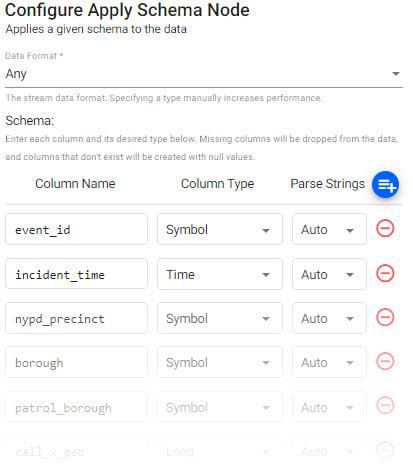

3. In the Configure Apply Schema Node section leave the Data Format setting set to Any.

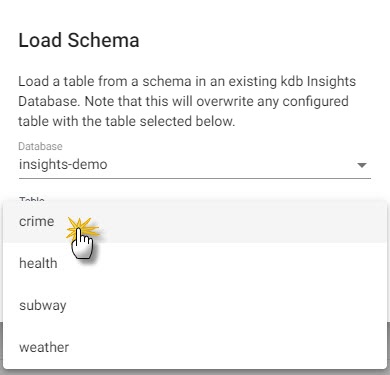

4. Click the Load Schema icon , select the insights-demo database and the crime table from the dropdowns as shown below.



5. Click Load.





6. Click Apply to apply changes to the node.

Add a Writer node

This node writes the transformed crime data to the kdb Insights Enterprise database.

1. Click-and-drag the kdb Insights Database node from the list of Writer nodes into the workspace and connect it to the Transform node.

2. Select the Writer node and add the following settings to the right-hand Configure kdb Insights Database property panel:



   Setting	Value
   Database	insights-demo
   Table	crime
   Write Direct to HDB	No
   Deduplicate Stream	Yes
   Set Timeout Value	No

3. Click Apply to apply these settings to the node.

Review the pipeline

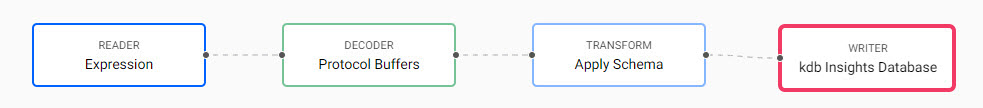

The final pipeline looks like this:

Save the pipeline

You now need to save the Pipeline.

1. Click Save.

Deploy the pipeline

Deploy the package containing the database and pipeline in order to ingest the data into the database.

1. Go to the Package Index page and click on the three dots beside insights-demo package and click Deploy.

   Note

   It may take Kubernetes several minutes to release the necessary resources to deploy the pipeline.

   If the pipeline or database in the package are already deployed you must tear it down. Do this on the Package Index page by clicking on the three dots beside insights-demo package and click Teardown.

2. Check the progress of the pipeline under the Running Pipelines panel of the Overview tab. The data is ready to query when Status = Running.



Next steps

Now that your pipeline is up and running you can:

• Query the crime data

• Visualize the crime data

• Ingest other data
