Ingest SQL Data

This walkthrough demonstrates how to ingest SQL data into kdb Insights Enterprise.

A health dataset, hosted on a PostresSQL database, has been provided for use in this walkthrough, which has records of air quality, traffic congestion, car and bike accidents for a day in New York. Once ingested, it is ready to be queried and visualized.

Information

No prior experience with q/kdb+ is required to build this pipeline.

The following sections describes how to:

Create a database: Create a new database, add it to a package, and set up the schema for the new database.
Create a pipeline: The pipeline comprises the following nodes:
- Readers: Reads data from its source
- Decoders: Defines the type of data imported
- Schema: Converts the data to a type compatible with a kdb+ database
- Writers: Writes the data to a kdb Insights Enterprise database
Ingest the data: Deploy the pipeline you have just created to ingest data into the database.

Create a database

From the Overview page, choose Create new under Databases:

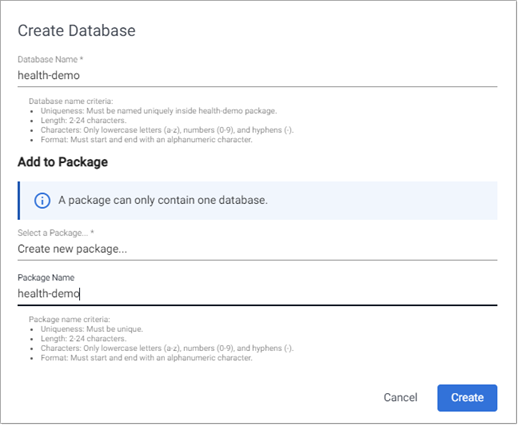

In the Create Database dialog set the following values

Setting	Value
Database Name	`health-demo-db`
Select a Package	`Create new package`
Package Name	`health-demo`

Click Create.
On the Schema Settings tab, click Code View to open the Schema Code View. Here you can add large schema tables in JSON format.

Replace the existing code with the following JSON.

health-demo-db

This JSON code is used in all the walkthrough examples that use the health-demo-db database.

JSON

Copy

[
{
    "columns": [
        {
            "type": "string",
            "name": "name",
            "attrMem": "sorted",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false,
            "foreign": ""
        },
        {
            "name": "lat",
            "type": "float",
            "attrMem": "",
            "attrOrd": "sorted",
            "attrDisk": "",
            "compound": false,
            "foreign": ""
        },
        {
            "name": "long",
            "type": "float",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "sorted",
            "compound": false,
            "foreign": ""
        },
        {
            "name": "neighborhood",
            "type": "string",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false,
            "foreign": ""
        },
        {
            "name": "airquality",
            "type": "float",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false,
            "foreign": ""
        },
        {
            "name": "trafficcongestion",
            "type": "float",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false,
            "foreign": ""
        },
        {
            "name": "bikeacccnt",
            "type": "int",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false,
            "foreign": ""
        },
        {
            "name": "caracccnt",
            "type": "int",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false,
            "foreign": ""
        },
        {
            "name": "timestamp",
            "type": "timestamp",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false,
            "foreign": ""
        }
    ],
    "primaryKeys": [],
    "type": "partitioned",
    "prtnCol": "timestamp",
    "name": "health",
    "sortColsDisk": [
        "long"
    ],
    "sortColsMem": [
        "name"
    ],
    "sortColsOrd": [
        "lat"
    ]
}
]

Click Apply.
Click Save.
Click Deploy and in the resources summary screen click Deploy again.
Next, use the Import Wizard to ingest data into this database.

Import data

On the Overview page, choose Import Data under Databases:

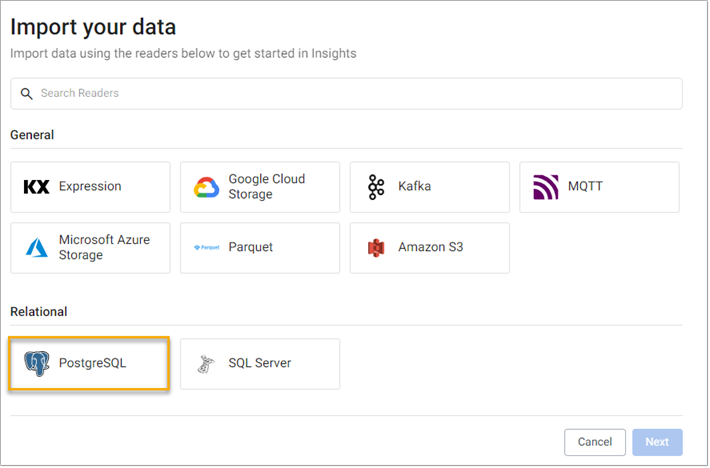

In the Import your data screen, select PostgreSQL from the Relational readers, shown below.

Enter the following values for the PostgresSQL database in the Configure PostgreSQL screen.

Setting	Value
Server	`postgres.trykdb.kx.com`
Port	`5432`
Database	`demo`
Username	`demo`
Query	`select * from health`

Click Next.

In the Configure Schema screen:

Leave the following settings unchanged:

Setting	Value
Apply a Schema	Checked
Data Format	`Any`

Click the Load Schema icon and set the following values:

Setting	Value
Database	`health-demo-db`
Table	`health`

Click Load, and then Next to open the Configure Writer screen.

In the Configure Writer screen, specify the following settings:

Setting	Value
Database	`health-demo-db`
Table	`health`
Write Direct to HDB	`No`
Deduplicate Stream	`Yes`
Set Timeout Value	`No`

Click Create Pipeline to display the Create Pipeline dialog.

Setting	Value
Pipeline Name	`health-demo-1`
Select a Package	`Create new package`
Package Name	`health-demo-1`. For this example, the database and pipeline must be in different packages.

Click Create.

Click Save.

The health-demo-1 pipeline is now available under Pipelines in the left-hand menu.

Deploy the pipeline

Deploy the pipeline to read the data from its source, transform it to a kdb+ compatible format, and write it to the health-demo-db database.

Wait for the database to deploy. When a green tick appears beside health-demo-db under Databases in the left-hand menu it is deployed successfully.

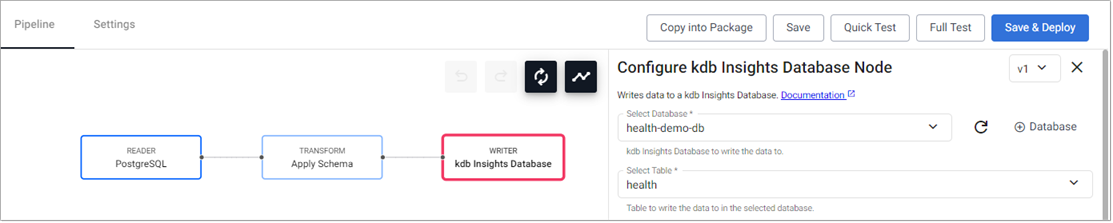

Click on the health-demo-1 pipeline tab and click Save & Deploy in the top panel, as shown below.
In the Enter password for PostgreSQL screen, enter demo and click OK.
Check the progress of the pipeline under the Running Pipelines panel on the Overview tab.

The data is ready to query when Status is set to Finished. Note that it may take several minutes for the pipeline to start running.

Warning

Once the pipeline is running, some warnings may be displayed in the Running Pipelines panel of the Overview tab. These are expected and can be ignored.

Query the data

To verify that the data has been ingested you can query it as follows.

Click Create new under Queries on the Overview page.
In the Basic tab of the Query Builder section of the screen, select health as the Table Name.

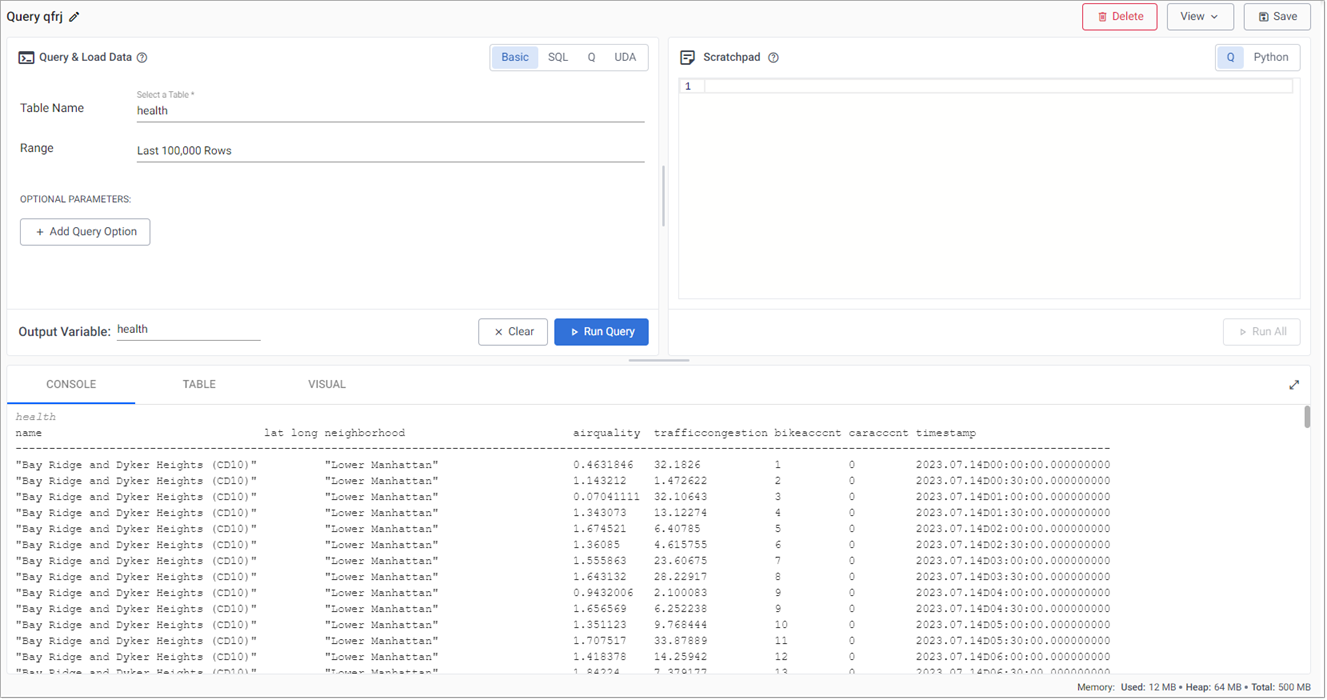

Click Run Query to return data. The results are displayed in the Output section at the bottom of the screen.
