Ingest Object Storage Data

The page provides a walkthrough to demonstrate how to ingest data from object storage into a database.

We have provided a weather dataset, hosted on each of the major cloud providers, for use in this walkthrough.

You must create the insights-demo database, as described in the create a database walkthrough, before you begin using the Import Wizard to create the pipeline.

The following sections describes how to:

• Create the pipeline and add it to the insights-demo package created here. This pipeline is comprised of the following nodes:

  • Readers. To read data from its source. Either Google Cloud Storage, Amazon S3 or Microsoft Azure Storage.

  • Decoders. To decode the ingested csv data.

  • Schema. To convert the data to a type compatible with a kdb+ database.

  • Writers. To write the data to a kdb Insights Enterprise database.

• Deploy the pipeline. To run the pipeline you have just created to ingest data into the insights-demo database.

• Teardown the pipeline. The pipeline can be torn down after data has been ingested. This frees up resources and is good practice.

Create the pipeline

Use the Import Wizard to create the pipeline:

1. On the Overview page, in the Quick Actions panel under Databases choose Import Data.

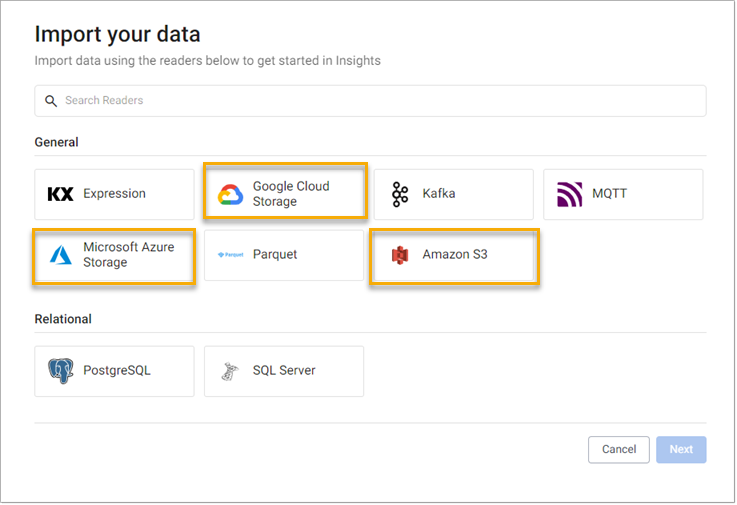

2. In the Import your data screen select a cloud provider; Google Cloud Storage, Microsoft Azure Storage, Amazon S3.



3. Complete the reader properties for the selected cloud provider.

   Google Cloud Storage

   Microsoft Azure Storage

   AWS S3

   Properties

   Setting	Value
   GS URI*	gs://kxevg/weather/temp.csv
   Project ID	kx-evangelism
   Tenant	Not applicable
   File Mode	Binary
   Offset	0
   Chunking	Auto
   Chunk Size	1MB
   Use Watching	No
   Use Authentication	No

   Properties

   Setting	Value
   MS URI	ms://kxevg/temp.csv
   Account	kxevg
   Tenant	Not applicable
   File Mode	Binary
   Offset	0
   Chunking	Auto
   Chunk Size	1MB
   Use Watching	Unchecked
   Use Authentication	Unchecked

   Properties

   Setting	Value
   S3 URI	s3://kxs-prd-cxt-twg-roinsightsdemo/weather.csv
   Region	eu-west-1
   File Mode	Binary
   Tenant	kxinsights
   Offset	0
   Chunking	Auto
   Chunk Size	1MB
   Use Watching	No
   Use Authentication	No

4. Click Next to open the Select a decoder screen.

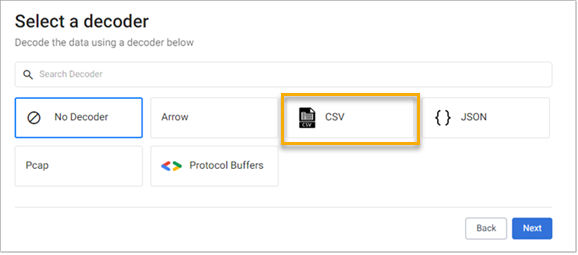

5. Select CSV, as shown below, as the weather data is a csv file.

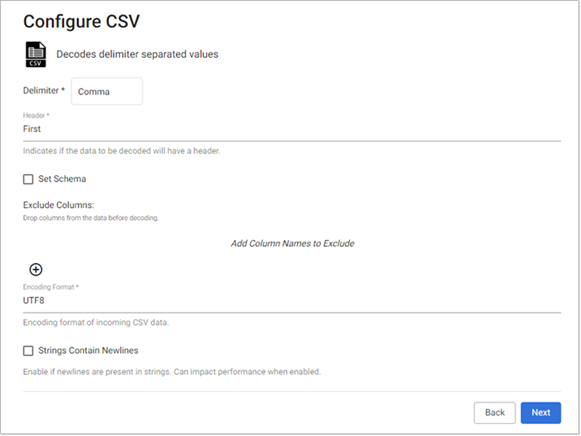

6. In the Configure CSV screen keep the default CSV decoder settings.





7. Click Next to open the Configure Schema screen.

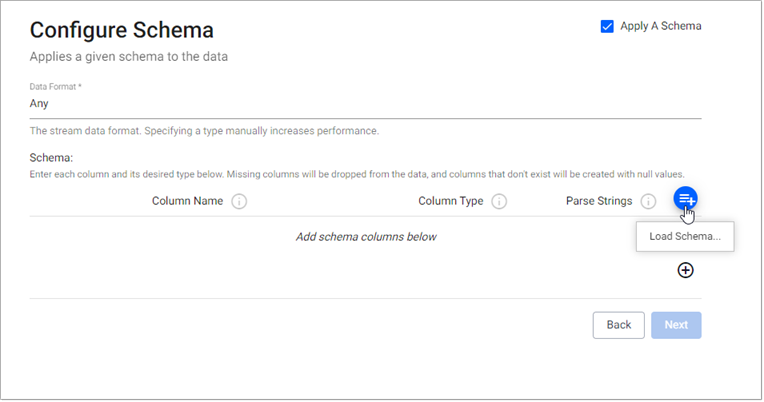

8. In the Configure Schema screen, leave the following unchanged:



   Setting	Value
   Apply a Schema	Enabled
   Data Format	Any

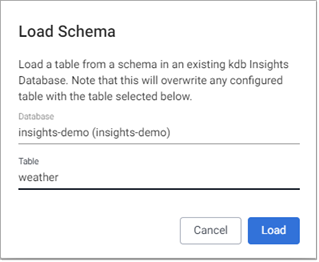

   1. Click Load Schema set the following values:

   Setting	Value
   Database	insights-demo
   Table	weather



9. Click Load.

10. Click Next to open the Configure Writer screen.

11. Configure the writer settings as follows:



    Setting	Value
    Database	insights-demo
    Table	weather

    Leave the remaining settings unchanged.

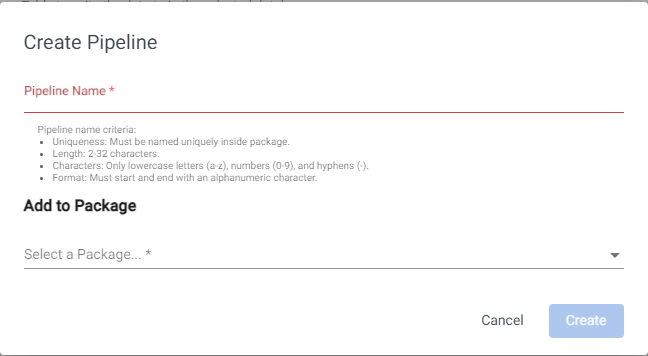

12. Click Open Pipeline to display the Create Pipeline dialog and set the following values:



    Setting	Value
    Pipeline Name	weather-1
    Select a Package	insights-demo

13. Click Create.





    If insights-demo does not appear on packages list create it, as described here.

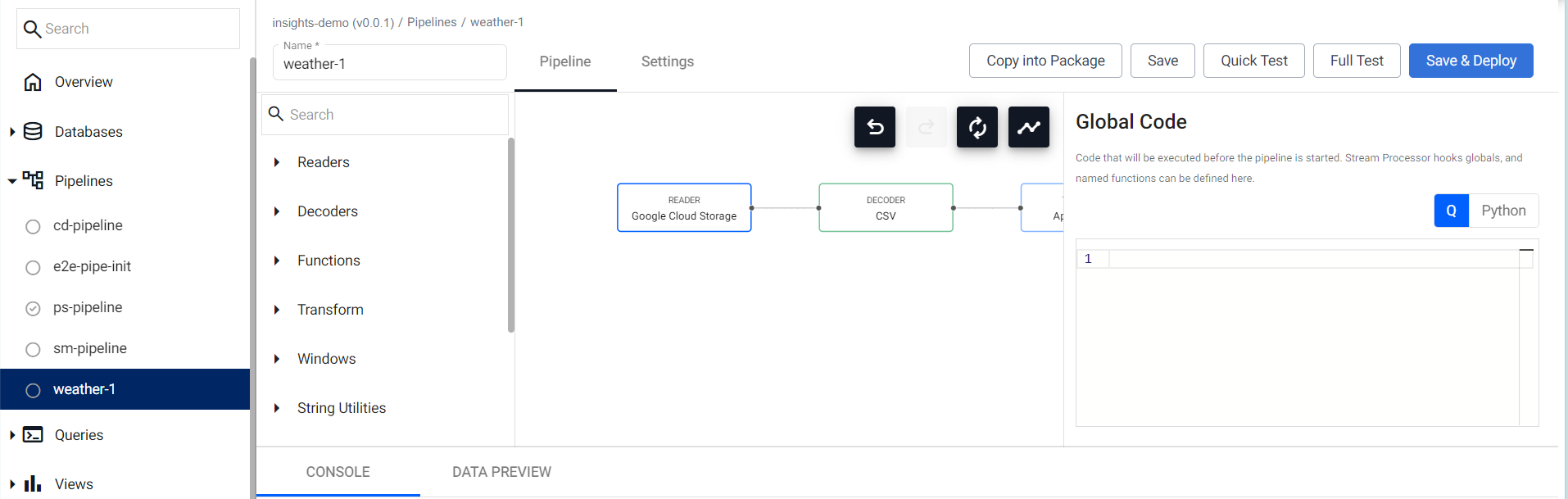

14. You can review the Pipeline as shown below. Note that the first node in the pipeline differs depending on the selected reader type.





15. Click Save.

At this stage, you are ready to deploy the pipeline to ingest the data.

Deploy the pipeline

Deploy the package containing the database and pipeline in order to ingest the data into the database.

1. Go to the Package Index page and click on the three dots beside insights-demo package and click Deploy.

   Note

   It may take Kubernetes several minutes to spin up the necessary resources to deploy the pipeline.

   If the package or its database are already deployed you must tear it down. Do this on the Package Index page by clicking on the three dots beside insights-demo package and click Teardown.

2. You can check the progress of the pipeline under the Running Pipelines panel of the Overview tab. The data is ready to query when Status is Finished.



Pipeline teardown

Once the CSV file has been ingested, the weather pipeline can be torn down. Ingesting this data is a batch ingest operation, rather than an ongoing stream, so it is ok to teardown the pipeline once the data is ingested. Tearing down a pipeline returns resources, so is a good practice when it is no longer needed.

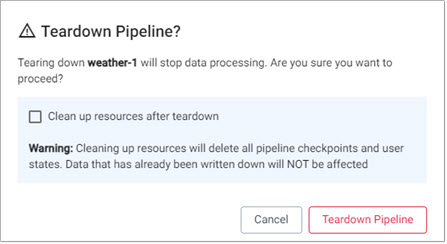

1. Click X in Running Pipelines panel on the Overview tab to teardown a pipeline.





2. Check Clean up resources after teardown as these are no longer required now that the CSV file has been ingested.





3. Click Teardown Pipeline.

Troubleshoot pipelines

If any errors are reported they can be checked against the logs of the deployment process. Click View diagnostics in the Running Pipelines panel of the Overview tab to review the status of a deployment.

Next steps

Now that data has been ingested into the weather table you can:

• Query the weather data

• Visualize the weather data

• Ingest other data
