Decoders

This page explains how to set up decoder operators for kdb Insights Enterprisepipelines using the Web Interface.

Decoding allows data to be converted into a format that can be processed directly within the Stream Processor. Decoders need to be used when ingesting data from an external data format before performing other transformations.

The pipeline builder uses a drag-and-drop interface to link together operations within a pipeline. For details on how to wire together a transformation, see the building a pipeline guide.

These decoders are used by the Import Wizard to configure a decoder for pipelines created using the wizard.

Arrow

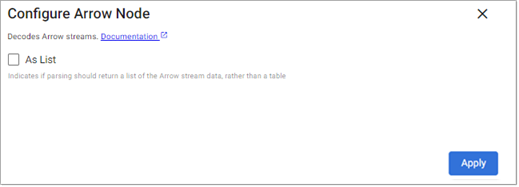

(Beta Feature) The Arrow operator decodes Arrow encoded data.

Required Parameters:

name	description	default
As List	If checked, the decoded result is a list of arrays, corresponding only to the Arrow stream data. Otherwise, by default the decoded result is a table corresponding to both the schema and data in the Arrow stream.	No

Avro

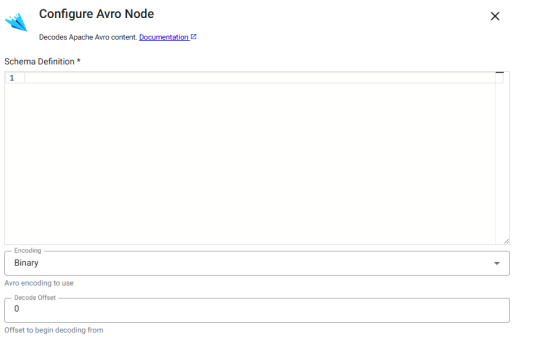

The Avro decoder processes messages in either binary or JSON Avro format, producing a kdb+ dictionary that conforms to the configured Avro schema. The schema must be supplied as a JSON string.

Required Parameters:

name	description	default
Schema	The schema used by the incoming avro messages, in JSON format.



Optional Parameters:

name	description	default
Encoding	Encoding of incoming avro messages, either Binary or JSON.	Binary
Offset	Offset to begin decoding each message from, in bytes. Useful for trimming magic bytes or schema registry IDs.	0

CSV

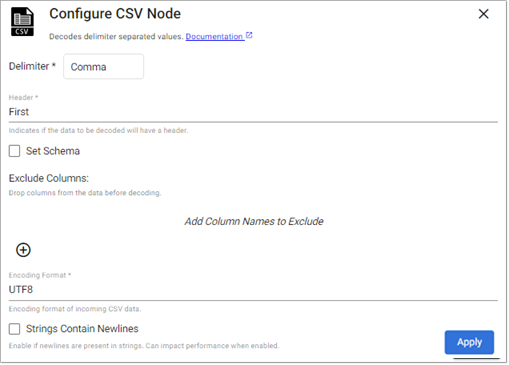

This operator parses CSV data to a table.

Required Parameters:

name	description	default
Delimiter	Field separator for the records in the encoded data	,

Optional Parameters:

name	description	default
Header	Defines whether source CSV file has a header row, either Always, First and Never. When set to Always, the first record of every batch of data is treated as being a header. This is useful when decoding a stream (ex. Kafka) and each message has a header. First indicates that only the first batch of data has a CSV header. This must be used when processing files that have a header row. Lastly, None indicates that there is no header row in the data.	First
Schema	A table with the desired output schema.
Columns to Exclude	A list of columns to exclude from the output.
Encoding Format	How the data is expected to be encoded when being consumed. Currently supports UTF8 and ASCII.	UTF8
Newlines	Indicates whether newlines may be embedded in strings. Can impact performance when enabled.	0b

GZIP

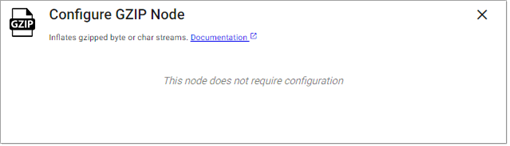

(Beta Feature) The GZIP operator inflates (decompresses) gzipped data.

GZIP requires no additional configuration. On each batch of data, this operator decodes as much data as it can passing it down the pipeline and buffering any data that cannot be decoded until the next batch arrives.

JSON

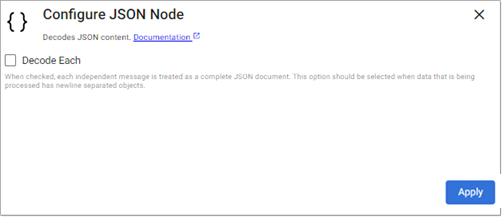

The JSON operator parses JSON data.

Required Parameters:

name	description	default
Decode Each	By default messages passed to the decoder are treated as a single JSON object. Setting decodeEach to true indicates that parsing must be done on each value of a message. This is useful when decoding data that has objects separated by newlines. This allows the pipeline to process partial sets of the JSON file without requiring the entire block to be in memory.	No

Pcap

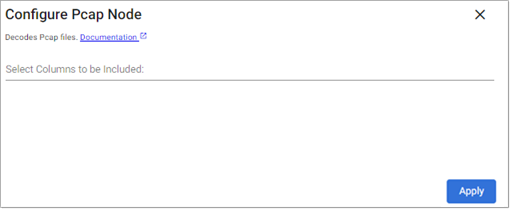

The Pcap operator decodes Pcap Data.

Required Parameters:

name	description	default
Columns to Include	The columns to include. If none of the options are selected, the output includes every available column.

Protocol Buffers

The Protocol Buffers operator decodes Protocol Buffer encoded data.

Required Parameters:

name	description	default
Message Name	The name of the Protocol Buffer message type to decode
Message Definition	A .proto definition containing the expected schema of the data to decode. This definition must include a definition of the Message Name referenced above.

Optional Parameters:

name	description	default
As List	If checked, the decoded result is a list of arrays, corresponding only to the Protocol Buffer stream data. Otherwise, by default the decoded result is a table corresponding to both the schema and data in the stream.	No

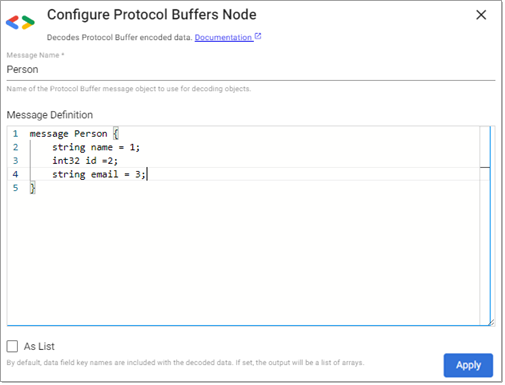

Definition Example:

In this example, the operator is configured to read the Person message and decode data with the defined fields. Because As List is unchecked, the resulting data is a table with the columns name, id and email.
