Finance - Realtime ML Stock Prediction

This page provides a tutorial on how you can use kdb Insights Enterprise to define and run a machine learning model to predict the future state of stock prices.

This builds on the work done in the first finance tutorial which showed how to develop trading strategies. You must complete that tutorial before proceeding with the following sections.

Note

This tutorial shows how you can train a Python-first ML model in the kdb Insights Enterprise platform rather than focusing on developing a particularly accurate model.

This tutorial illustrates the following beneficial features of using kdb Insights Enterprise:

Benefit	Description
Python based analysis	Stage data for Python-based analysis to predict future values, such as Neural Network algorithms.
ANSI SQL support	Execute using ANSI SQL queries which most Data Science and Machine Leaning tools are familiar.
Multiple visualization options	Use the scratchpad to verify the training/test sets and predictions and then move to advanced visualization using Reports or Common BI tools like PowerBi or Tableau to show live data, more depth to the model and empower larger teams to visualize insights.

Run model

Query dataset

Query the trade data you created in the Build and backtest scalable trading strategies using real time and historical tick data tutorial, to get it in the form required for the model later on.

Click on Packages in the left-hand menu to open the packages index. If the status of the equities package is Running proceed. If not then click on the three dots to the right and click Deploy.
Click + on the ribbon menu and click Query.
Click on the SQL tab of the Query and Load Data panel.

To retrieve the open, high, low, close (OHLC) of events in the trade table, add this to the code editor:

SQL

Copy

SELECT date_trunc('minute', timestamp) timestamp,
    FIRST(price) o, MAX(price) h,
    MIN(price) l, LAST(price) c
FROM trade GROUP BY date_trunc('minute', timestamp)

Define an output variable ohlc.
Switch window at the bottom of the page from Console to Visual.
Click Run Query to execute the query.

Information

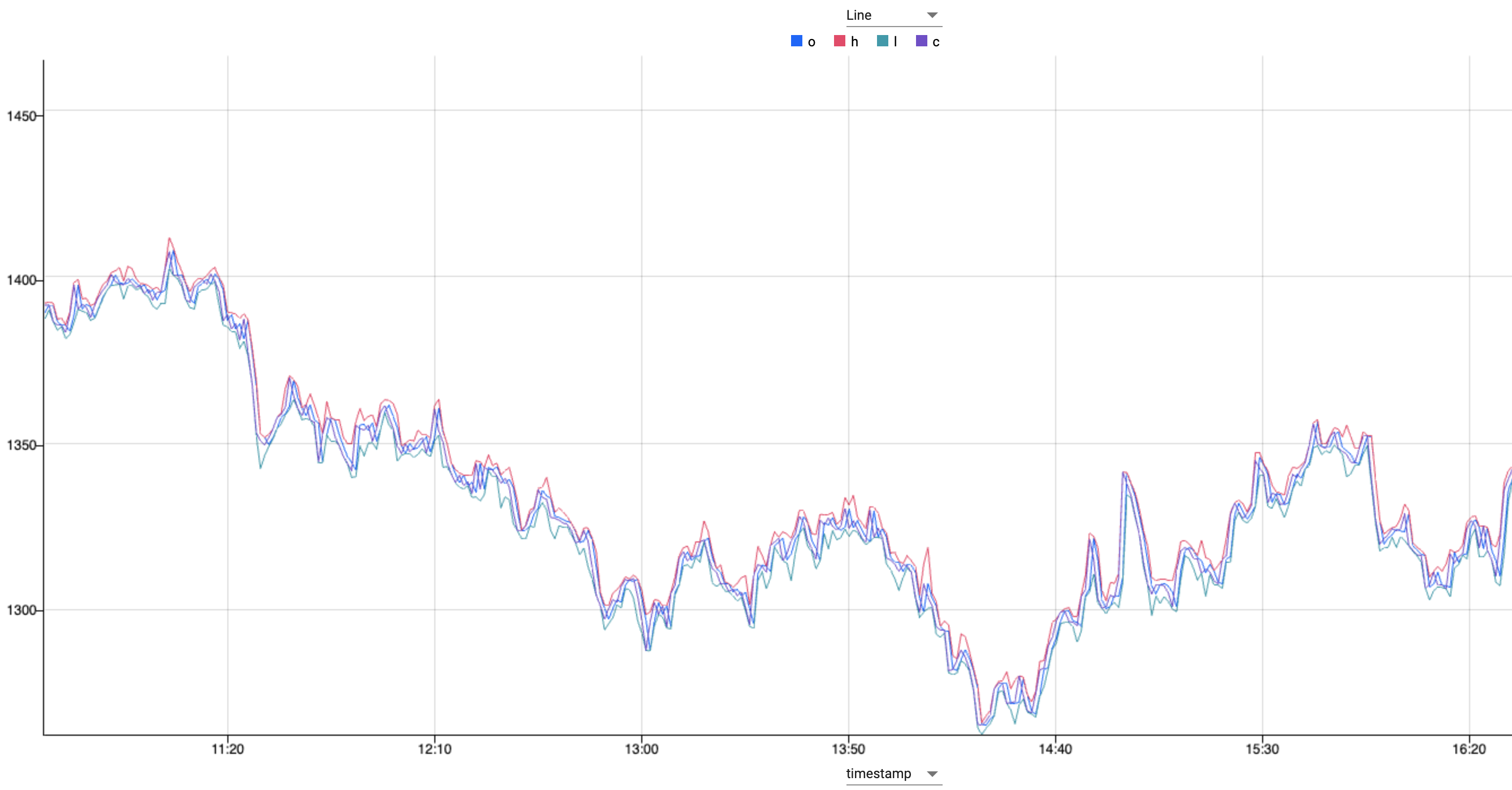

What does this show?

This OHLC chart shows the open, high, low and closing prices, from the trade table for each period.

OHLC charts are useful since they show the four major data points over a period, with the closing price being considered the most important by many traders.

Run the ML code

For processing the data, a paper written in 2020 used an Long Short-Term Memory algorithm to predict stock prices. Using an open source Git repo, a LTSM model written in Python can be run against the data, to create predictions, and visualize them in the Scratchpad.

In Scratchpad panel, of the Query window, click on the Python tab. Add the following code to the scratchpad editor:

Machine Learning Python Code

Paste the following Python code into the scratchpad:

Python

Copy

# Imports
import pandas as pd
import numpy as np
import math
# Machine learning lib - used here for data preprocessing and calculations - applies the range with minmaxclater zero and 1
from sklearn.preprocessing import MinMaxScaler
# Gets the stat that informs the quality of the prediction
from sklearn.metrics import mean_squared_error
# Define a neural network model - this is what is being used to predict the future state of the prices later on
from keras.models import Sequential
from keras.layers import Dense, Activation
from keras.layers import LSTM   # Reference to the docs -- https://en.wikipedia.org/wiki/Long_short-term_memory
# Convert the dataset into dataframe and get averages
df = pd.DataFrame (ohlc.pd())
# Axis 1 is horizontal and we want to see this data tabularised
OHLC_avg = df[['o','h','L','C']].mean(axis=1)
# Preparation of the time series dataset
# reshape data preparation step so the data will fit the model applied
OHLC_avg = np.reshape(OHLC_avg.values, (len(OHLC_avg),1))
# creates the scaler function
scaler = MinMaxScaler(feature_range=(0,1))
# which is applied here
OHLC_avg = scaler.fit_transform(OHLC_avg)
# Train-test split
# Model is trained using 75% of the data - subsample of the data - note that this is the first 75%
train_OHLC = int(len(OHLC_avg) * 0.75)
# Test data is the remaining 25% so between test and train the whole 100%
test_OHLC = len(OHLC_avg) - train_OHLC
train_OHLC, test_OHLC = OHLC_avg[0:train_OHLC,:], OHLC_avg[train_OHLC:len(OHLC_avg),:]
def new_dataset(dataset, step_size):
    data_X, data_Y = [],[]
    for i in range(len(dataset)-step_size-1):
        a = dataset[i:(i + step_size),0]
        data_X.append(a)
        data_Y.append(dataset[i + step_size,0])
    # This produces the dataset which tells you what T+1 is within the time-series and organizes the data in to what will be used as the features
    # This feeds the model, and target, which is what is produced
    return np.array(data_X),np.array(data_Y)
# Time-series dataset (for time T, values for time T+1)
trainX, trainY = new_dataset(train_OHLC,1)
# This give you T which is what you have, and T+1 which the prediction
testX, testY = new_dataset(test_OHLC,1)
# Reshaping train and test data
trainX = np.reshape(trainX, (trainX.shape[0],1,trainX.shape[1]))
testX = np.reshape(testX, (testX.shape[0],1,testX.shape[1]))
# Gets data into the format that is needed
step_size = 1
# LSTM model
model = Sequential()
model.add(LSTM(32, input_shape=(1,step_size), return_sequences =True))
model.add(LSTM(16))
model.add(Dense(1))
# Beyond the scope of this  - takes the features T and learn how to predict what T+1 is
model.add(Activation('linear'))
# Model compiling and training
# compile builds the model into an executable who we will calculate performance and how it is optimized
model.compile(loss='mean_squared_error',optimizer='adam')
model.fit(trainX, trainY, epochs=5, batch_size=1, verbose=2)    # takes the training data fits the model to it that will be used for predictions.
# Prediction
trainPredict = model.predict(trainX)
testPredict = model.predict(testX)      # does this
# Denormalising and plotting
trainPredict = scaler.inverse_transform(trainPredict)
trainY = scaler.inverse_transform([trainY])
testPredict = scaler.inverse_transform(testPredict)
# Previously the data was weighted artificially with the MinMaxScaler, but that is not a real number for output or for a decision.
# This must be now reversed so that the output is actual price data unweighted
testY = scaler.inverse_transform([testY])
# Training RMSE
trainScore = math.sqrt(mean_squared_error(trainY[0], trainPredict[:,0]))
# Calculating how well the predictions match reality
trainScore
# Test RMSE
testScore = math.sqrt(mean_squared_error(testY[0], testPredict[:,0]))
# Calculating how well the predictions match reality
testScore
# Creating similar dataset to plot training predictions
trainPredictPlot = np.empty_like(OHLC_avg)
trainPredictPlot[:,:] = np.nan
# More processing to shape the data for the flattening step
trainPredictPlot[step_size:len(trainPredict)+step_size, :] = trainPredict
# Creating similar dataset to plot test predictions
testPredictPlot = np.empty_like(OHLC_avg)
testPredictPlot[:,:] = np.nan
# More processing to shape the data for the flattening step
testPredictPlot[len(trainPredict)+(step_size*2)+1:len(OHLC_avg)-1, :] = testPredict
OHLC_avg = scaler.inverse_transform(OHLC_avg)
dataset = pd.DataFrame({
    'tradetime':df['timestamp']    # x axis
    ,'ohlc': OHLC_avg.flatten()
    ,'train': trainPredictPlot.flatten()
    ,'test': testPredictPlot.flatten()
    }, columns=['tradetime','ohlc','train','test'])
datase

In the Visual tab, switch the chart type for the Y-Axis Left Settings to Line.
Click Run All.

Information

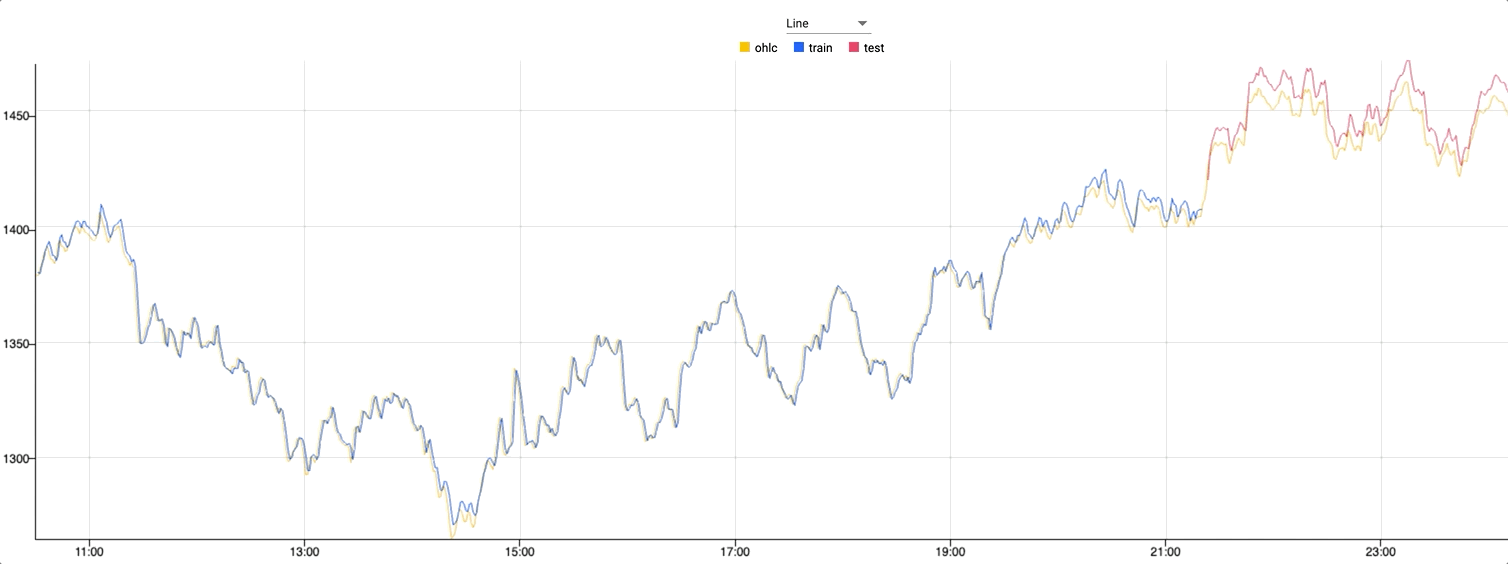

What is the model doing?
Using standard machine learning libraries that are available in kdb Insights Enterprise the dataset is weighted, shaped and plotted.

The model is first trained using 75% of the data, with the remaining 25% is used to test the model.

Zooming in on the graph where the color changes, you can see where the test dataset begins. Against this test data the predictions follow the live data extremely closely.

What's next

Learn how to deploy a machine learning model in a real-time pipeline in the Manufacturing Tutorial.
